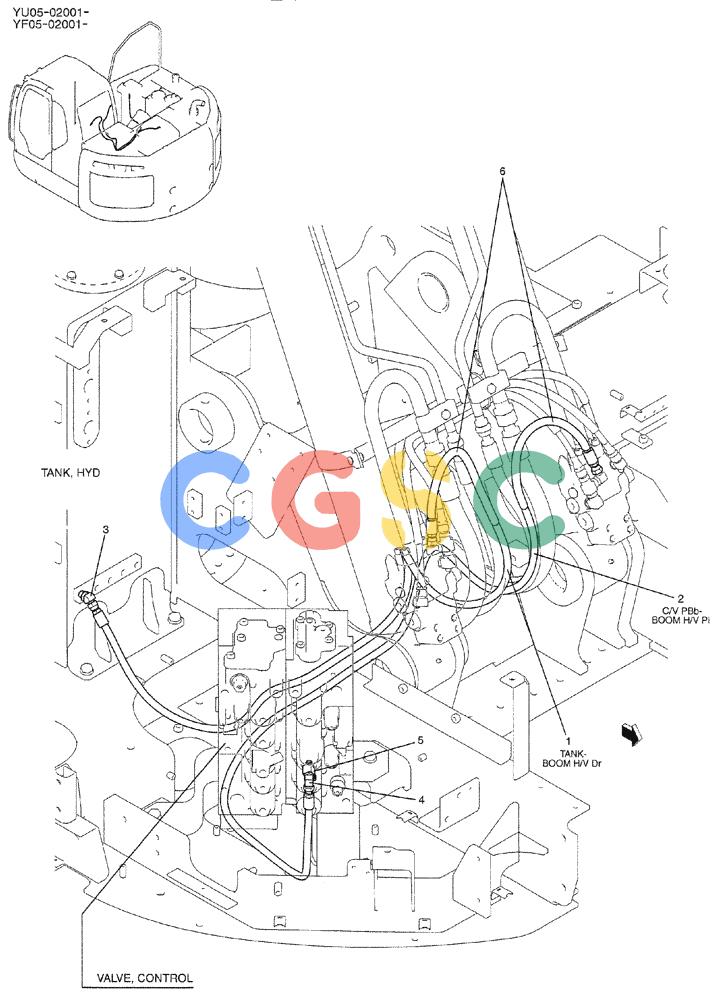

纽荷兰零件查询(E235BSRNLC) - CRAWLER EXCAVATOR ASN YU05-02001 (01-034) - CONTROL LINES, VALVE (BOOM SAFETY) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
318 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YF64H00093F1 | [1] | CONTROL LINES, VALVE | |
| . . | YF64H00061F1 | [1] | CONTROL LINES, VALVE, SEE FIG. 01-033-01 & 01-033-02 | |
| . . | YF64H00062F1 | [1] | CONTROL LINES, VALVE, SEE FIG. 01-033-01 & 01-033-02 | |
| . . | YF64H00039F1 | [1] | CONTROL LINES, VALVE | |
| . . | YF64H00072F1 | [1] | CONTROL LINES, VALVE, SEE FIG. 01-033-01 & 01-033-02 | |
| . . | YF64H00058F1 | [1] | CONTROL LINES, VALVE | |
| 1. | ZX23M06250 | [1] | HOSE | KOB |
| 2. | ZX23M06300 | [1] | FLEXIBLE HOSE | KOBHOSE |
| 3. | ZH42X06000 | [1] | 45 ELBOW,Male, 30° Fl, PF 3/8" x PF 3/8", O-Ring | KOB |
| 4. | ZH32X06000 | [1] | 90 ELBOW,Male, 30° Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 |
| 5. | 2444T3402 | [1] | HYD CONNECTOR | KOB Superseded by part number: HH55V06006G3 |
| 6. | 2418Z1333D4 | [2] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 500mm Length | KOB |
