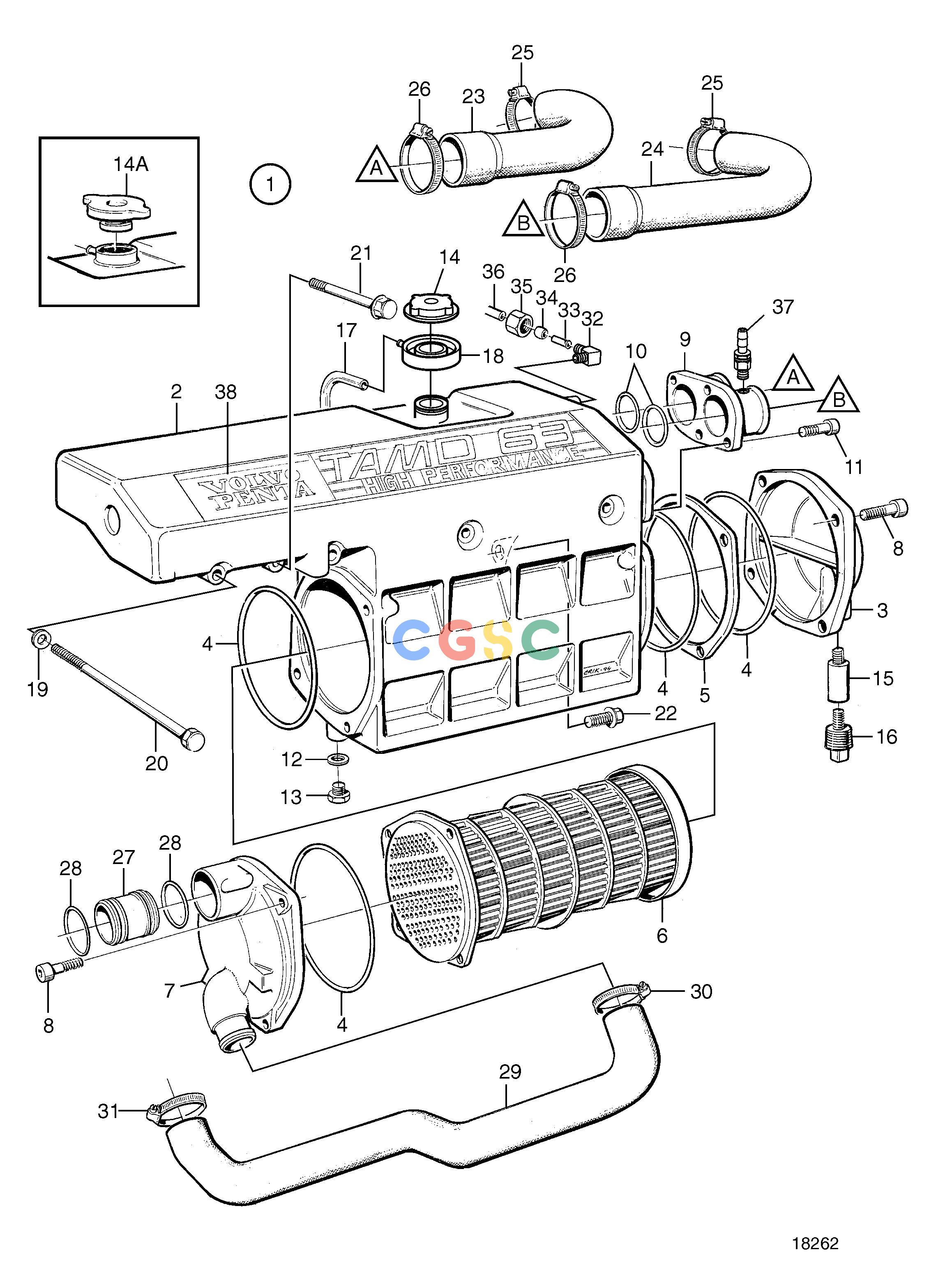

沃尔沃零件查询TAMD63L-A; TAMD63P-ACooling SystemHeat ExchangerEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
849 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3828572
|
[1] |
Heat exchanger
|
|
| 2. |
866588
|
[1] |
Heat exchanger housi
|
|
| 3. |
|
|
|
|
| 4. |
949272
|
[4] |
O-ring
|
|
| 5. |
866593
|
[1] |
Spacer
|
|
| 6. |
866591
|
[1] |
Heat exchanger
|
|
| 7. |
866589
|
[1] |
End plate
|
|
| 8. |
959224
|
[8] |
Hex. socket screw
|
|
| 9. |
866592
|
[1] |
Hose connection
|
|
| 10. |
125362
|
[2] |
O-ring
|
|
| 11. |
959222
|
[4] |
Hex. socket screw
|
|
| 12. |
907132
|
[1] |
Gasket
|
|
| 13. |
960628
|
[1] |
Plug
|
|
| 14. |
1674083
|
[1] |
Pressure cap
|
|
| 14A. |
866761
|
[1] |
Pressure cap
|
Earlier prod.
|
| 15. |
838929
|
[1] |
Anode
|
|
| 16. |
838928
|
[1] |
Plug
|
|
| 17. |
192618
|
[1] |
Hose
|
L=800mm
|
| 18. |
3828863
|
[1] |
Rubber collar
|
|
| 19. |
941907
|
[4] |
Spring washer
|
|
| 20. |
968006
|
[4] |
Hexagon screw
|
M8x200mm
|
| 21. |
973924
|
[1] |
Flange screw
|
M8x50mm, (965179)
|
| 22. |
946671
|
[1] |
Flange screw
|
|
| 23. |
866215
|
[1] |
Hose
|
Thermostat housing-heat exchanger.
|
| 24. |
866216
|
[1] |
Hose
|
|
| 25. |
961672
|
[2] |
Hose clamp
|
|
| 26. |
961673
|
[2] |
Hose clamp
|
|
| 27. |
866594
|
[1] |
Tube
|
|
| 28. |
866690
|
[2] |
O-ring
|
Included in kit 876725., See group 99
|
| 29. |
866218
|
[1] |
Hose
|
|
| 30. |
961673
|
[1] |
Hose clamp
|
|
| 31. |
961672
|
[1] |
Hose clamp
|
|
| 32. |
954385
|
[2] |
Elbow nipple
|
|
| 33. |
944717
|
[2] |
Support sleeve
|
|
| 34. |
954364
|
[2] |
Sleeve
|
|
| 35. |
954356
|
[2] |
Fitting nut
|
|
| 36. |
945460
|
[1] |
Tube
|
L=1020mm
|
| 37. |
949918
|
[2] |
Shut-off cock
|
|
| 38. |
866764
|
[1] |
Decal
|
|
