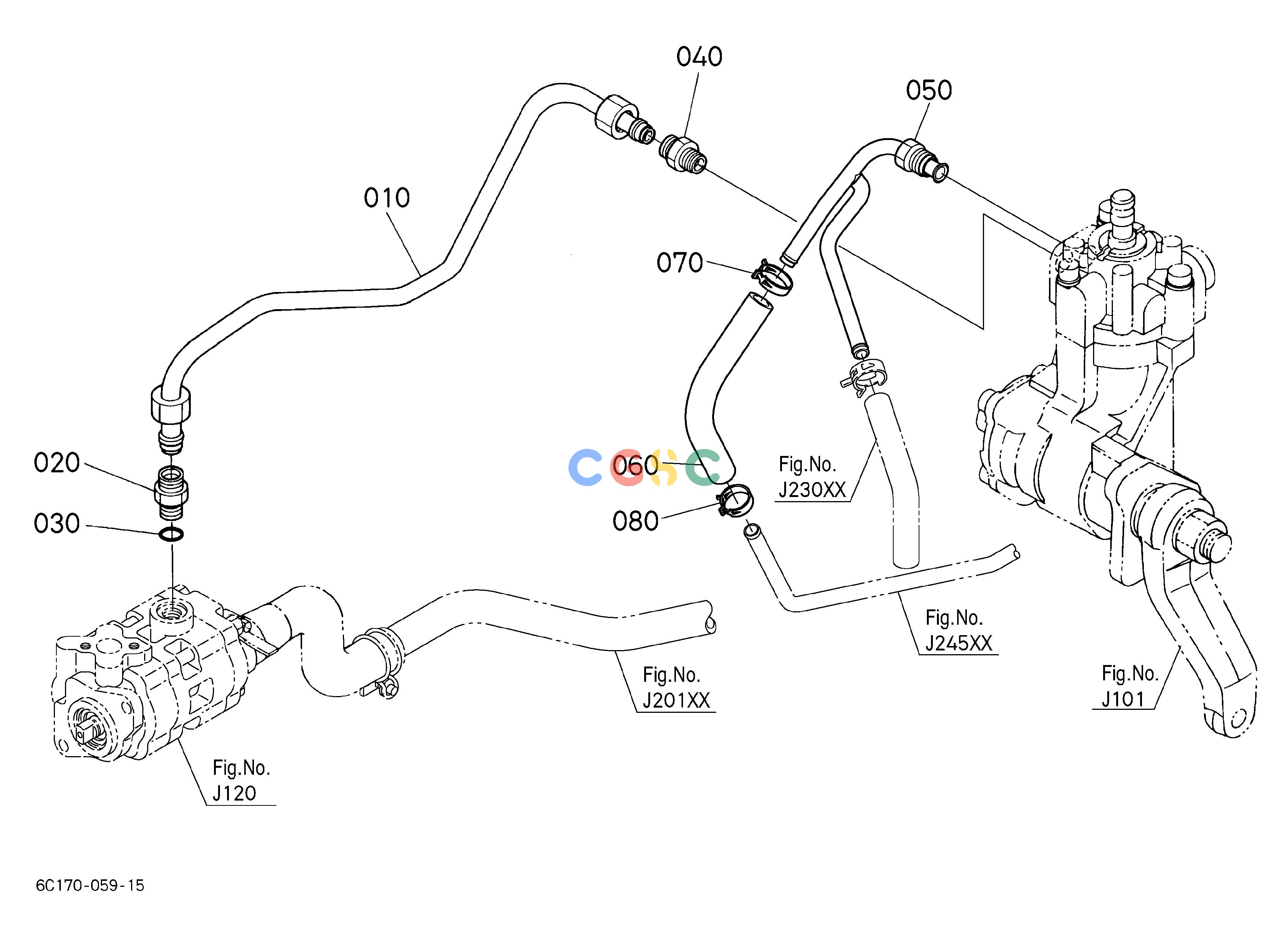

久保田零件查询J21502 HYDRAULIC OIL LINE(STEERING) PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
856 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C17039220
|
[1] |
PIPE DELIVERY
|
0.6160(lbs); 0.280
|
| 020. |
0601251223
|
[1] |
JOINT PIPE
|
0.0880(lbs); 0.040
|
| 030. |
0481100110
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
0481600110
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 040. |
6C07039430
|
[1] |
JOINT PIPE
|
0.0836(lbs); 0.038
|
| 050. |
6C14039313
|
[1] |
PIPE
|
0.2200(lbs); 0.100
|
| 050. |
6C15039310
|
[1] |
PIPE
|
0.1848(lbs); 0.084
|
| 060. |
6C14039330
|
[1] |
HOSE
|
0.0704(lbs); 0.032
|
| 070. |
6C05058750
|
[1] |
CLAMP HOSE
|
0.0440(lbs); 0.020
|
| 070. |
6A60039330
|
[1] |
CLAMP HOSE
|
0.0132(lbs); 0.006
|
| 080. |
6C05058750
|
[1] |
CLAMP HOSE
|
0.0440(lbs); 0.020
|
| 080. |
6A60039330
|
[1] |
CLAMP HOSE
|
0.0132(lbs); 0.006
|
