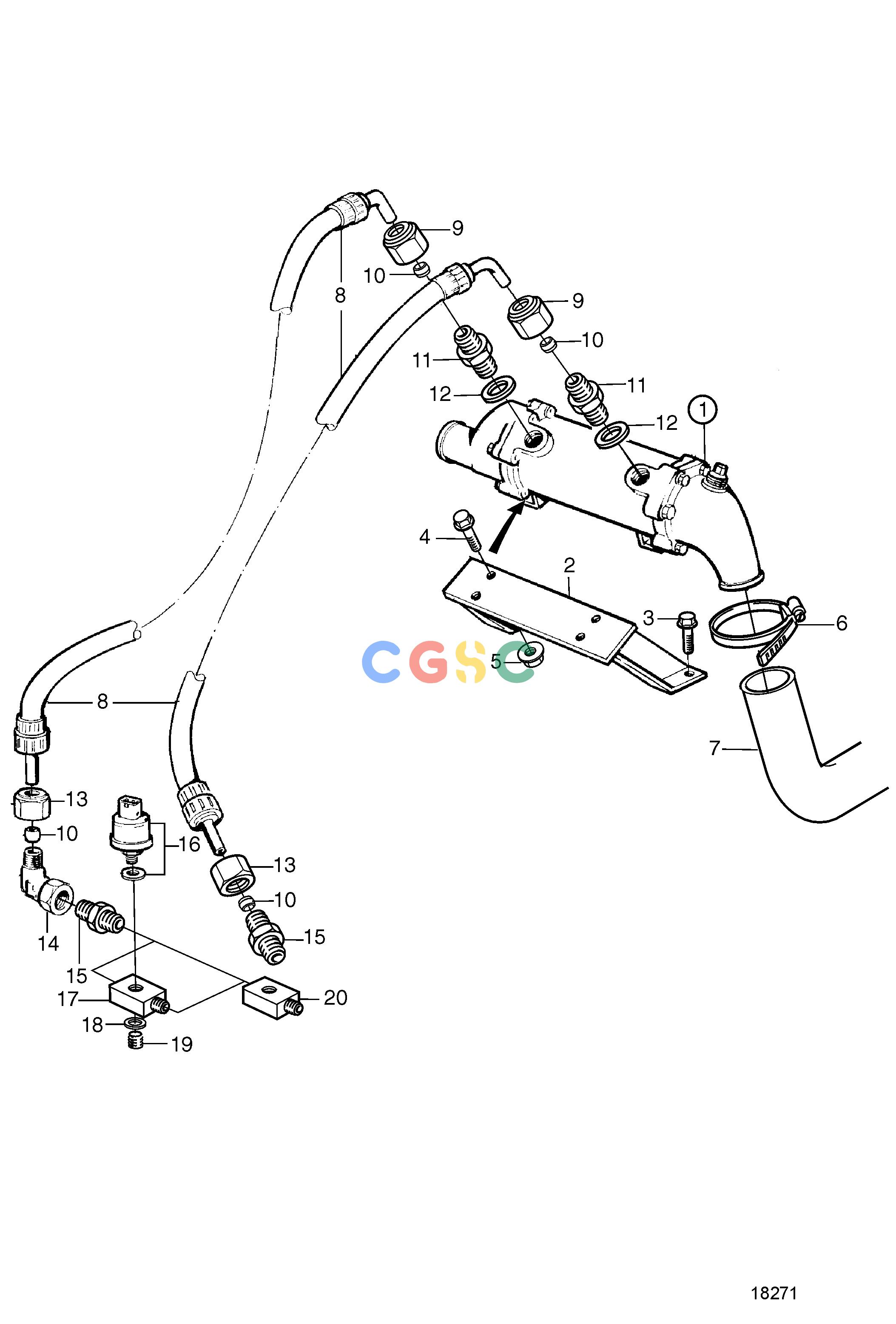

沃尔沃零件查询TAMD63L-A; TAMD63P-ACooling SystemOil Cooler for IRM220A1/ZF 220A, IRM220PL/ZF 220-EB, IRM220V-LD/ZF 220IV, IRM301A/ZF 301A: IRM 220A1, IRM 220PL, IRM 220V-LDEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
993 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
848098
|
[1] |
Bracket
|
|
| 3. |
965191
|
[2] |
Flange screw
|
|
| 4. |
955297
|
[4] |
Hexagon screw
|
|
| 5. |
948645
|
[4] |
Flange lock nut
|
|
| 6. |
961672
|
[1] |
Hose clamp
|
|
| 7. |
866218
|
[1] |
Hose
|
|
| 8. |
847165
|
[2] |
Lubricating oil hose
|
L=580mm
|
| 9. |
941331
|
[2] |
Fitting nut
|
|
| 10. |
980782
|
[4] |
Ferrule
|
(956970)
|
| 11. |
968132
|
[2] |
Nipple
|
|
| 12. |
11996
|
[2] |
Gasket
|
|
| 13. |
956984
|
[2] |
Fitting nut
|
|
| 14. |
964016
|
[1] |
Elbow nipple
|
|
| 15. |
963959
|
[2] |
Nipple
|
|
| 16. |
866839
|
[1] |
Sensor
|
See group 30, 0-30 bar
|
| 17. |
862629
|
[1] |
Nipple
|
|
| 18. |
947624
|
[1] |
Gasket
|
|
| 19. |
960632
|
[1] |
Plug
|
|
| 20. |
842425
|
[1] |
Nipple
|
Later prod
|
