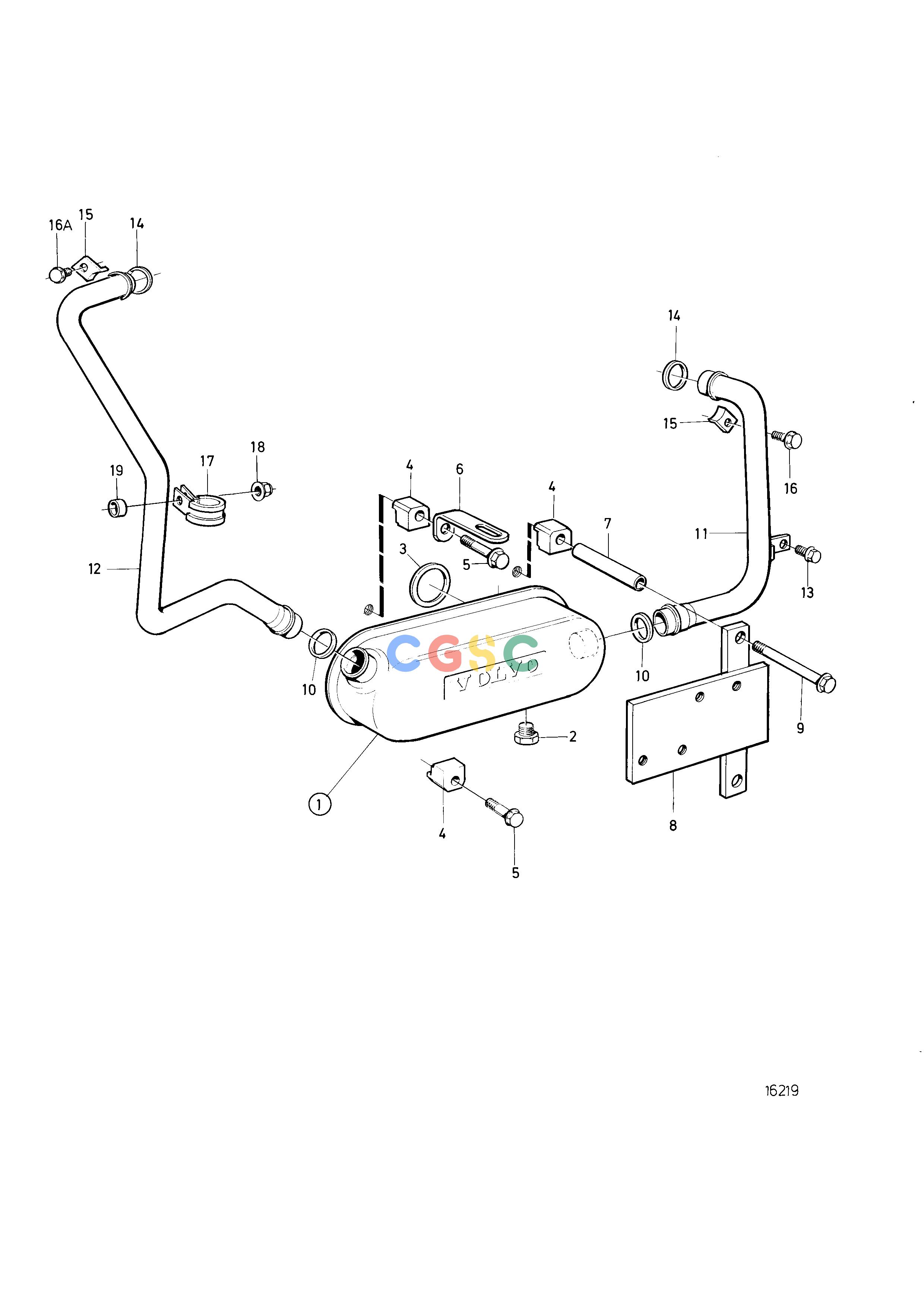

沃尔沃零件查询TAMD63L-A; TAMD63P-ACooling SystemOil Cooler, EngineEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
327 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
863146
|
[1] |
Oil cooler
|
Repl by 866539
|
| 1. |
866539
|
[1] |
Oil cooler
|
|
| 2. |
981749
|
[1] |
Plug
|
|
| 3. |
471467
|
[2] |
Sealing ring
|
|
| 4. |
471804
|
[4] |
Retainer
|
|
| 5. |
965186
|
[2] |
Flange screw
|
L=50mm
|
| 6. |
965559
|
[1] |
Bracket
|
|
| 7. |
3962122
|
[2] |
Spacer sleeve
|
|
| 8. |
3826159
|
[1] |
Bracket
|
|
| 9. |
968237
|
[2] |
Flange screw
|
L=120mm
|
| 10. |
1543579
|
[2] |
Sealing ring
|
|
| 11. |
866642
|
[1] |
Coolant pipe
|
Cylinder block-oil cooler.
|
| 12. |
866643
|
[1] |
Coolant pipe
|
Thermostat housing-oil cooler.
|
| 13. |
946440
|
[1] |
Flange screw
|
M8x16mm
|
| 14. |
471637
|
[2] |
Sealing ring
|
|
| 15. |
421654
|
[2] |
Clamp
|
|
| 16. |
946440
|
[1] |
Flange screw
|
M8x16mm
|
| 16A. |
949846
|
[1] |
Flange screw
|
Tapping screw.
|
| 17. |
947827
|
[1] |
Clamp
|
|
| 18. |
971098
|
[1] |
Flange lock nut
|
M10
|
| 19. |
823575
|
[1] |
Spacer sleeve
|
|
