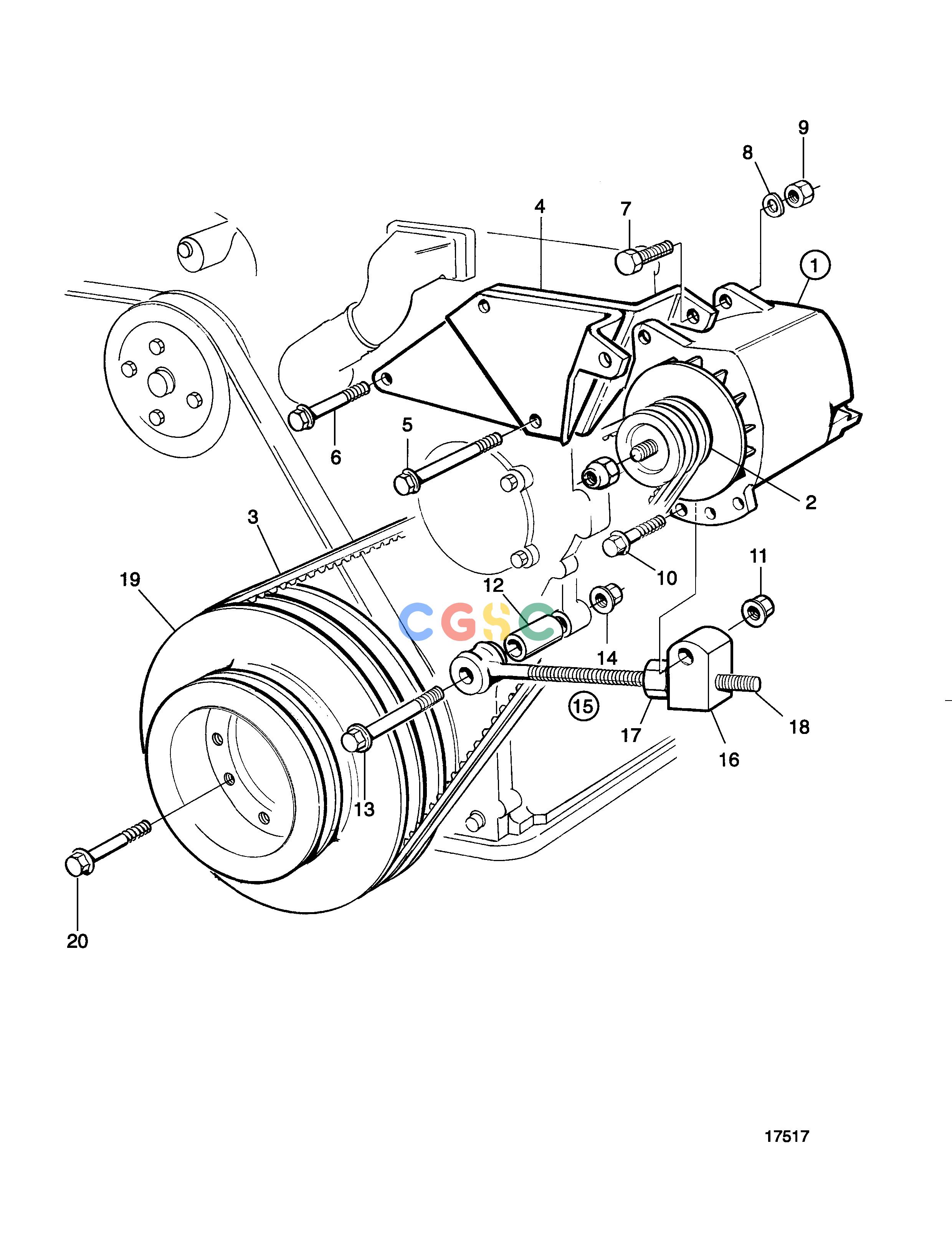

沃尔沃零件查询TAMD63L-A; TAMD63P-AElectrical SystemAlternator, High MountingEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
493 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3884858
|
[1] |
Alternator
|
12V
|
| 1. |
3803940
|
[1] |
Alternator, exch
|
12V
|
| 1. |
|
|
|
|
| 1. |
849748
|
[1] |
Alternator
|
24V
|
| 1. |
3803499
|
[1] |
Alternator, exch
|
24V
|
| 2. |
862355
|
[1] |
Pulley
|
|
| 3. |
978817
|
[1] |
V-belt set
|
|
| 4. |
3829031
|
[1] |
Bracket
|
|
| 5. |
968237
|
[2] |
Flange screw
|
|
| 6. |
965188
|
[1] |
Flange screw
|
|
| 7. |
955564
|
[2] |
Hexagon screw
|
|
| 8. |
940280
|
[2] |
Spring washer
|
|
| 9. |
940176
|
[2] |
Hexagon nut
|
|
| 10. |
965188
|
[1] |
Flange screw
|
|
| 11. |
971098
|
[1] |
Flange lock nut
|
|
| 12. |
824334
|
[1] |
Spacer sleeve
|
|
| 13. |
946474
|
[1] |
Flange screw
|
|
| 14. |
971096
|
[1] |
Flange nut
|
|
| 15. |
9524758
|
[1] |
Tensioning screw
|
|
| 16. |
3036796
|
[1] |
Tension block
|
|
| 17. |
3036797
|
[1] |
Collet
|
|
| 18. |
|
|
|
|
| 19. |
3829028
|
[1] |
Pulley
|
|
| 20. |
8192579
|
[8] |
Flange screw
|
|
