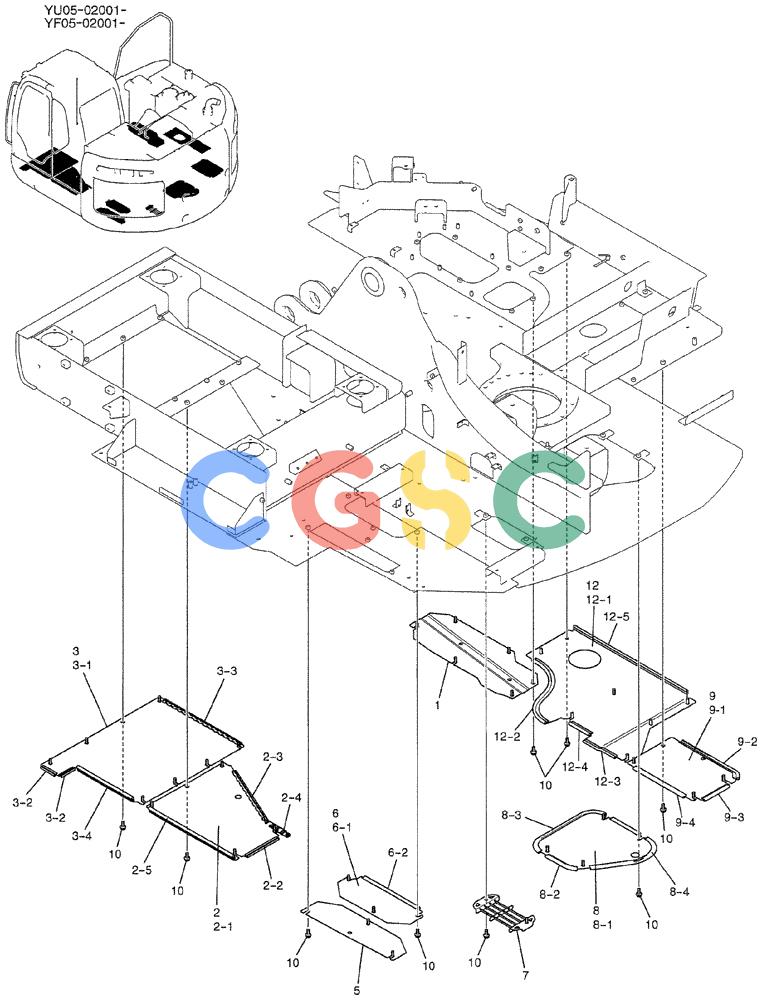

纽荷兰零件查询(E235BSRNLC) - CRAWLER EXCAVATOR ASN YU05-02001 (01-056) - COVER ASSY, UNDER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
539 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YF24C00004F1 | [1] | COVER ASSY | KOBUNDER |
| 1. | YF24C01047P1 | [1] | COVER | KOB |
| 2. | YF24C01066F1 | [1] | COVER ASSY | KOB |
| 2-1. | YF24C01067P1 | [1] | COVER | KOB |
| 2-2. | YR21C01168D2 | [1] | WEATHERSTRIP | KOB |
| 2-3. | YR21C01168D8 | [1] | WEATHERSTRIP | KOBSTRIP, WEATHER |
| 2-4. | YR21C01168DG | [1] | WEATHERSTRIP | KOBSTRIP, WEATHER |
| 2-5. | PH21C01136DN | [1] | WEATHERSTRIP | KOB |
| 3. | YF24C01064F1 | [1] | COVER ASSY | KOB |
| 3-1. | YF24C01065P1 | [1] | COVER | KOB |
| 3-2. | YT21C01159D5 | [2] | WEATHERSTRIP | KOB |
| 3-3. | YJ21C01103D3 | [1] | WEATHERSTRIP | KOB |
| 3-4. | PH21C01136DM | [1] | WEATHERSTRIP | KOB |
| 5. | YF24C01014P2 | [1] | COVER | KOBCOVER |
| 6. | YF24C01061F1 | [1] | COVER ASSY | KOB |
| 6-1. | YF24C01062P1 | [1] | COVER | KOB |
| 6-2. | 2427P1836D38 | [1] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| 7. | YF24C01072P1 | [1] | COVER | KOB Superseded by part number: YF24C01126P1 |
| 8. | YF24C01051F1 | [1] | COVER ASSY | KOB |
| 8-1. | YF24C01013P1 | [1] | COVER | KOB |
| 8-2. | 2427P1836D36 | [2] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| 8-3. | YT21C01039D4 | [1] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| 8-4. | 2427P1836D28 | [1] | WEATHERSTRIP | KOB |
| 9. | YF24C01052F1 | [1] | COVER ASSY | KOB |
| 9-1. | YF24C01053P2 | [1] | COVER | KOBCOVER |
| 9-2. | YT21C01163D3 | [1] | WEATHERSTRIP | KOB |
| 9-3. | PM21C01152D5 | [1] | WEATHERSTRIP | KOB |
| 9-4. | YT21C01039D7 | [1] | WEATHERSTRIP | KOB |
| 10. | ZM73C12030 | [42] | BOLT,M12x30mm - Course Thread | KOBSEMS |
| 12. | YF24C01079F1 | [1] | COVER ASSY | KOBCOVER ASSY |
| 12-1. | YF24C01080P1 | [1] | COVER | KOB |
| 12-4. | YT21C01164DE | [1] | WEATHERSTRIP | KOB |
| 12-5. | YZ21C01044D5 | [1] | WEATHERSTRIP | KOB |
