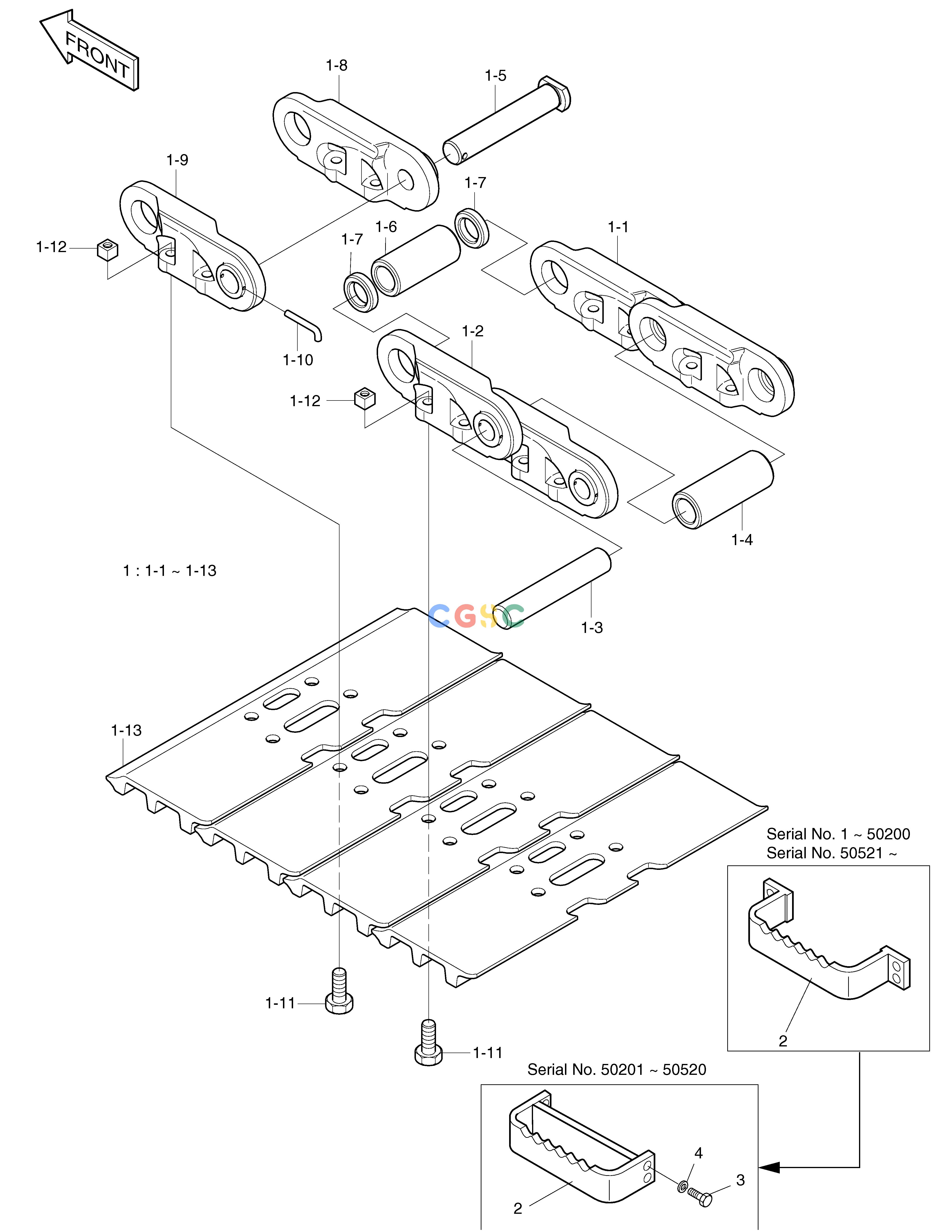

斗山零件查询TRACK SHOE ASS'Y-710G-DHI SOLAR 130LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
653 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2272-7102
|
[-] |
TRACK SHOE ASS'Y-700G
|
|
| 1. |
2272-1080D3
|
[2] |
TRACK SHOE ASS'Y 700G
|
|
| 1-1. |
2272-6042
|
[45] |
LINK;TRACK(R.H)
|
|
| 1-10. |
2123-6037
|
[1] |
PIN
|
|
| 1-11. |
2120-6014
|
[184] |
BOLT
|
|
| 1-12. |
2121-6014
|
[184] |
NUT
|
|
| 1-13. |
2273-1025D3
|
[46] |
SHOE 700㎜
|
|
| 1-2. |
2272-6043
|
[45] |
LINK;TRACK(L.H)
|
|
| 1-3. |
2123-6035A
|
[45] |
PIN;TRACK
|
|
| 1-4. |
2110-6031A
|
[45] |
BUSHING;TRACK
|
|
| 1-5. |
2123-6036A
|
[1] |
PIN;MASTER
|
|
| 1-6. |
2110-6032A
|
[1] |
BUSHING;MASTER
|
|
| 1-7. |
2114-6019
|
[2] |
SPACER
|
|
| 1-8. |
2272-6044A
|
[1] |
LINK;MASTER(R.H)
|
|
| 1-9. |
2272-6045A
|
[1] |
LINK;MASTER(L.H)
|
|
| 2. |
2625-1220D3
|
[4] |
BRACKET
|
|
| 2. |
2195-2527AD7
|
[4] |
BRACKET
|
|
| 2. |
2195-2527D7
|
[4] |
BRACKET
|
|
| 3. |
S0558253
|
[16] |
BOLT M10X1.5X35
|
|
| 4. |
S5102603
|
[16] |
. WASHER
|
|
