斗山零件查询TRACK SHOE ASS'Y-950-(S130LC-V) SOLAR 130LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
838 次

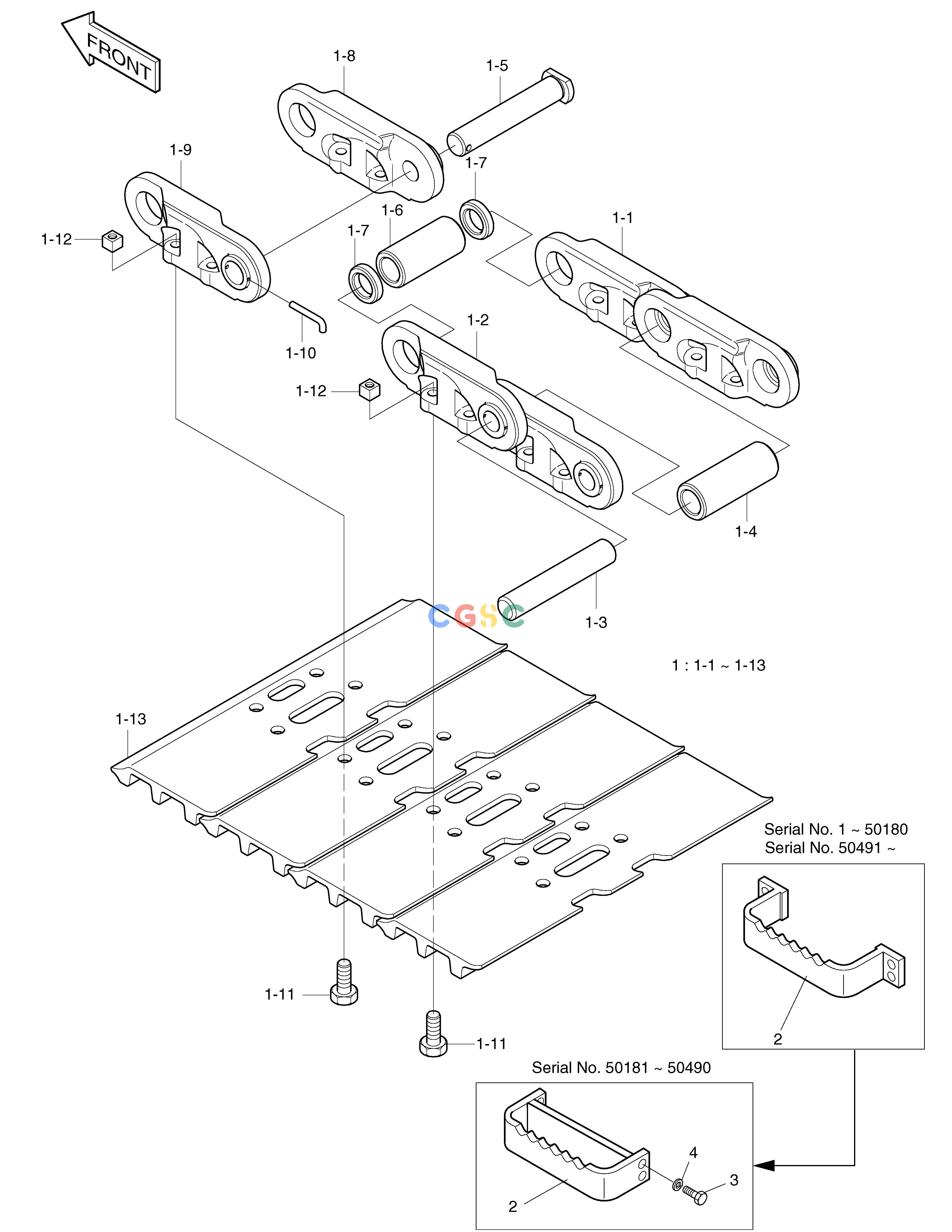

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
9273-6004D3
|
[2] |
TRACK SHOE ASS'Y950 (LH)
|
|
| 1. |
9273-6004
|
[2] |
TRACK SHOE ASS'Y950 (RH)
|
|
| 1-1. |
9272-6017
|
[45] |
LINK;MASTER(R.H)
|
|
| 1-11. |
9120-6006D12
|
[184] |
BOLT
|
|
| 1-12. |
9121-6005D11
|
[184] |
NUT
|
|
| 1-13. |
9273-9003
|
[46] |
SHOE 950mm(LH)
|
|
| 1-13. |
9273-9004
|
[46] |
SHOE 950mm(RH)
|
|
| 1-2. |
9272-6016
|
[45] |
LINK;MASTER(L.H)
|
|
| 1-3. |
9123-6009
|
[45] |
PIN;TRACK (SC)
|
|
| 1-4. |
9110-6004
|
[45] |
BUSHING;TRACK (LC)
|
|
| 1-5. |
9123-6010
|
[1] |
PIN;MASTER
|
|
| 1-6. |
9110-6005
|
[1] |
BUSHING;MASTER
|
|
| 1-7. |
9114-6006
|
[2] |
SPACER
|
|
| 1-8. |
9272-6017
|
[1] |
LINK;MASTER(R.H)
|
|
| 1-9. |
9272-6016
|
[1] |
LINK;MASTER(L.H)
|
|
| 2. |
9195-1124
|
[4] |
STEP;BRACKET
|
|
| 2. |
9195-1124
|
[4] |
STEP;BRACKET
|
|
| 2. |
9195-1132
|
[4] |
STEP;BRACKET
|
|
| 3. |
S0515353
|
[16] |
BOLT M12X1.75X35
|
|
| 4. |
S5102703
|
[16] |
WASHER
|
|
| 5. |
9272-6014D2
|
[2] |
LINK ASS'Y
|
|
