现代零件查询R28-7 BOOMEPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
964 次

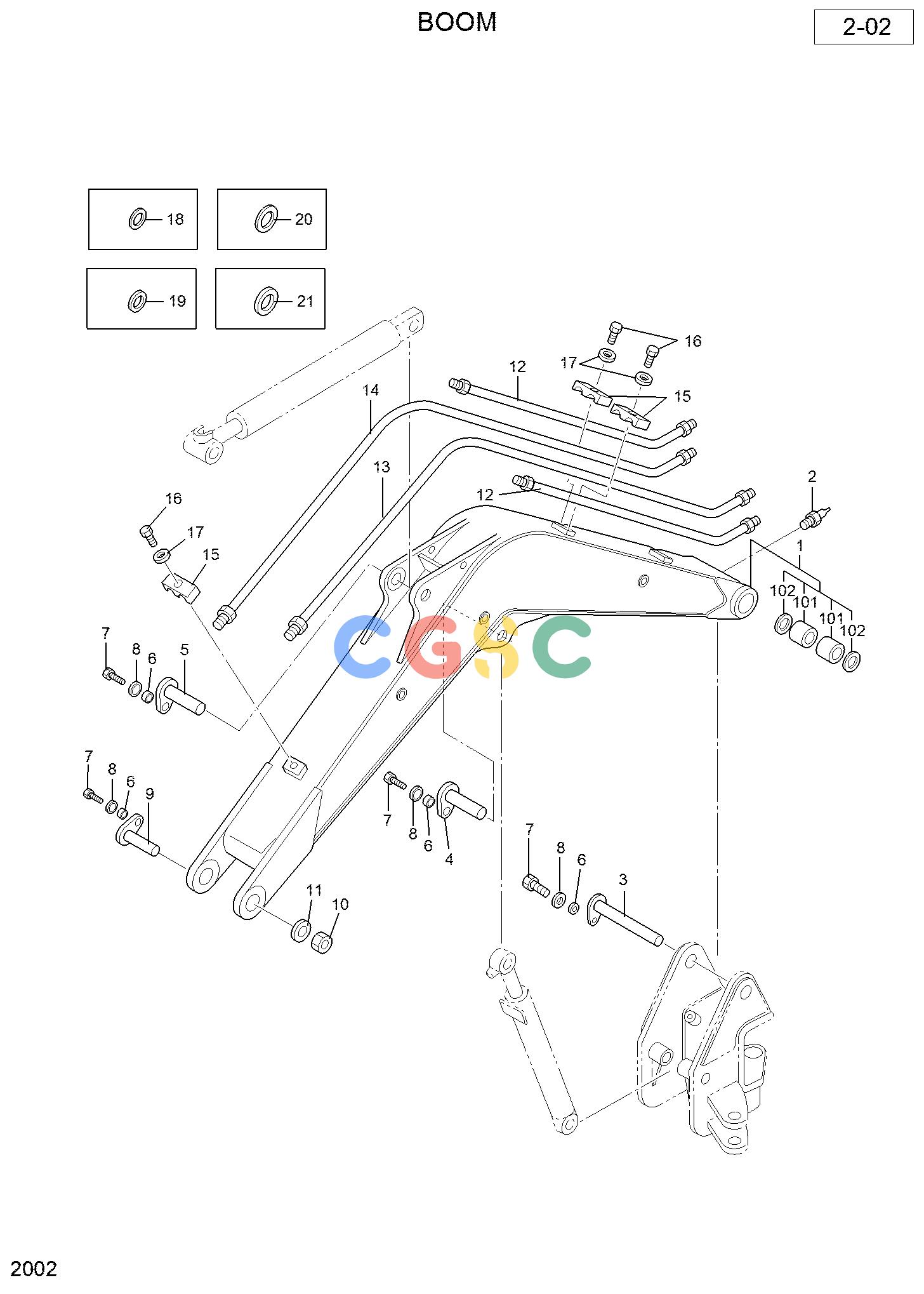

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-01470
|
[1] |
BOOM
|
|
| 101. |
XJDH-01040
|
[2] |
BUSHING
|
|
| 102. |
XJDH-00364
|
[2] |
SEAL-DUST
|
|
| 2. |
XJDH-01481
|
[1] |
PIN
|
|
| 3. |
XJDH-00199
|
[1] |
NUT-U
|
|
| 4. |
XJDH-00260
|
[1] |
WASHER
|
|
| 5. |
XJDH-01482
|
[1] |
PIN
|
|
| 6. |
XJDH-01483
|
[1] |
PIN
|
|
| 7. |
XJDH-01181
|
[3] |
COLLAR
|
|
| 8. |
XJDH-00070
|
[3] |
BOLT
|
|
| 9. |
XJDH-00280
|
[3] |
WASHER
|
|
| 10. |
XJDH-01192
|
[AR] |
SHIM(A, 0.5T)
|
|
| 11. |
XJDH-01193
|
[AR] |
SHIM(B, 1.0T)
|
|
| 12. |
XJDH-01194
|
[AR] |
SHIM(C, 0.5T)
|
|
| 13. |
XJDH-01195
|
[AR] |
SHIM(D, 1.0T)
|
|
| 14. |
XJDH-01152
|
[2] |
PIPE-ARM
|
|
| 15. |
XJDH-01486
|
[1] |
PIPE-BUCKET(R)
|
|
| 16. |
XJDH-01487
|
[1] |
PIPE-BUCKET(L)
|
|
| 17. |
XJDH-00845
|
[4] |
CLAMP-PIPE
|
|
| 18. |
XJDH-00047
|
[4] |
BOLT
|
|
| 19. |
XJDH-00278
|
[4] |
WASHER
|
|
| 20. |
XJDH-01231
|
[2] |
CLAMP-PIPE
|
|
| 21. |
XJDH-00039
|
[2] |
BOLT
|
|
| 22. |
XJDH-00165
|
[2] |
NUT
|
|
| 23. |
XJDH-00276
|
[4] |
WASHER
|
|
| 24. |
XJDH-00373
|
[1] |
NIPPLE-GREASE
|
|
