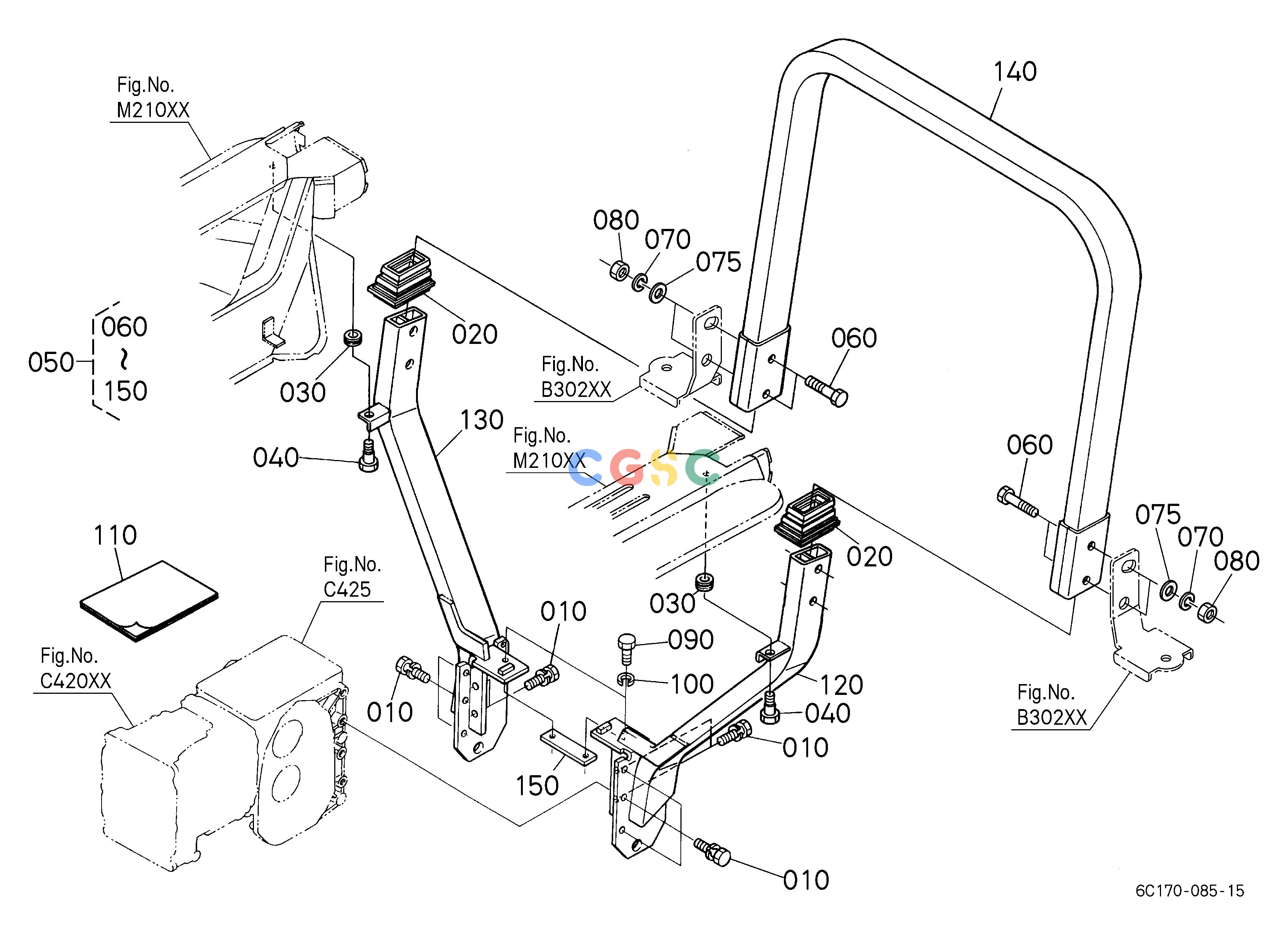

久保田零件查询M30102 ROPS(RIGID TYPE) ## S.No.<=54732 HOOD/BONNETEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
572 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
0112351235
|
[10] |
BOLT
|
0.0902(lbs); 0.041
|
| 020. |
6C04072210
|
[2] |
COVER ROPS
|
0.1452(lbs); 0.066
|
| 030. |
6A10051380
|
[2] |
CUSHION
|
0.0066(lbs); 0.003
|
| 040. |
6C04051342
|
[2] |
BOLT
|
0.0374(lbs); 0.017
|
| 050. |
9999999999
|
[1] |
ASSY ROPS
|
0.0000(lbs); 0.000
|
| 060. |
7559904655
|
[4] |
HEX.BOLT
|
0.2200(lbs); 0.100
|
| 070. |
7559933016
|
[4] |
WASHER SPRING
|
0.1760(lbs); 0.080
|
| 075. |
7559932016
|
[4] |
WASHER PLAIN
|
0.0198(lbs); 0.009
|
| 080. |
7559931066
|
[4] |
HEX.NUT
|
0.0660(lbs); 0.030
|
| 090. |
7559904320
|
[2] |
HEX.BOLT
|
0.0440(lbs); 0.020
|
| 100. |
7559933013
|
[2] |
WASHER SPRING
|
0.0132(lbs); 0.006
|
| 110. |
9999999999
|
[1] |
MANUAL INSTRUCTION
|
0.0000(lbs); 0.000
|
| 120. |
9999999999
|
[1] |
COMP.FRAME LH
|
0.0000(lbs); 0.000
|
| 130. |
9999999999
|
[1] |
COMP.FRAME RH
|
0.0000(lbs); 0.000
|
| 140. |
9999999999
|
[1] |
COMP.FRAME TOP
|
0.0000(lbs); 0.000
|
| 150. |
9999999999
|
[1] |
PLATE CONNECTOR
|
0.0000(lbs); 0.000
|
