沃尔沃零件查询TAMD71A; TAMD72AElectrical SystemElectrical MaterialsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
497 次

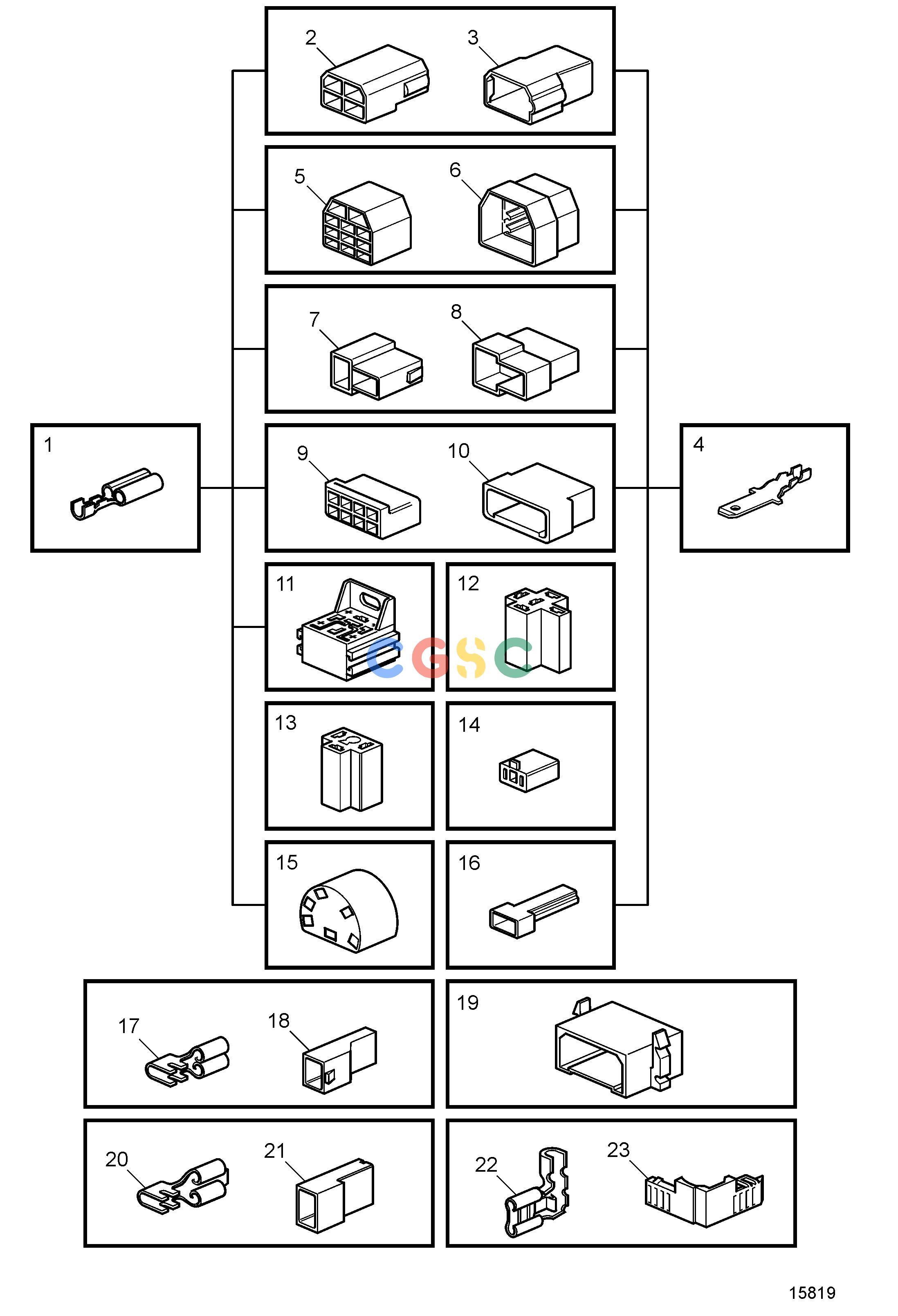

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
973150
|
[1] |
Cable terminal
|
6,3x0,8x1,1-2,5mm²
|
| 1. |
949206
|
[1] |
Cable terminal
|
6,3x0,8x4,0-6,0mm²
|
| 2. |
948856
|
[1] |
Housing
|
6,3x4 natural
|
| 3. |
948855
|
[1] |
Housing
|
6,3x4 natural
|
| 4. |
973117
|
[1] |
Cable terminal
|
6,3x0,8x0,5-1,0mm²
|
| 4. |
881487
|
[1] |
Cable terminal
|
6,3x0,8x0,75-2,5mm²
|
| 4. |
881488
|
[1] |
Cable terminal
|
6,3x0,8x4,0-6,0mm²
|
| 5. |
945830
|
[1] |
Housing
|
6,3x11 natural
|
| 6. |
945831
|
[1] |
Tab housing
|
6,3x11 natural
|
| 7. |
958210
|
[1] |
Housing
|
6,3x2 black
|
| 8. |
958209
|
[1] |
Housing
|
6,3x2 black
|
| 9. |
944076
|
[1] |
Housing
|
6,3x8 natural
|
| 10. |
948857
|
[1] |
Housing
|
6,3x8 natural
|
| 11. |
977184
|
[1] |
Housing
|
6,3x5x4,8/2,8x4
|
| 12. |
1214948
|
[1] |
Housing
|
6,3x5 black
|
| 13. |
945469
|
[1] |
Housing
|
6,3x3 black
|
| 14. |
1578937
|
[1] |
Housing
|
6,3x2 natural
|
| 15. |
828624
|
[1] |
Receptacle housing
|
6,3x6
|
| 16. |
|
|
|
6,3x1 black
|
| 17. |
949405
|
[1] |
Cable terminal
|
4,8x1,1-2,5mm²
|
| 18. |
947848
|
[1] |
Housing
|
4,8x1 natural
|
| 19. |
944077
|
[1] |
Housing
|
6,3x8 natural
|
| 20. |
881483
|
[1] |
Cable terminal
|
6,3x0,8x1,1-2,5mm²
|
| 20. |
881484
|
[1] |
Cable terminal
|
6,3x0,8x4,0-6,0mm²
|
| 21. |
949597
|
[1] |
Housing
|
6,3x1 natural
|
| 21. |
943511
|
[1] |
Housing
|
6,3x1 natural
|
| 22. |
881489
|
[1] |
Cable terminal
|
6,3x0,8x1,1-2,5
|
| 23. |
944221
|
[1] |
Housing
|
6,3x1 natural
|
