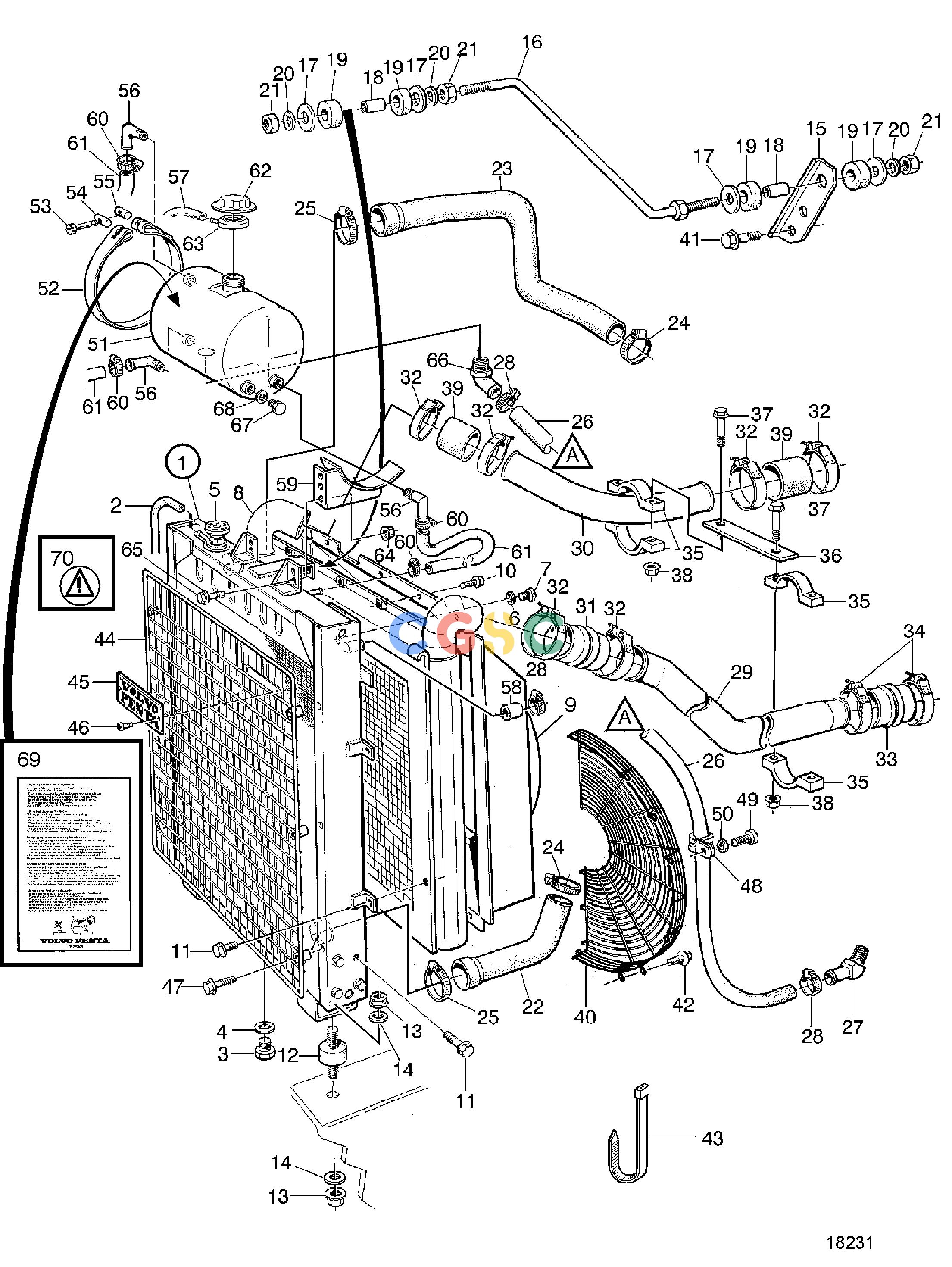

沃尔沃零件查询TAMD71B; TAMD73P-A; TAMD73WJ-ACooling SystemRadiator Cooling and Expansion TankEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
297 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
866092
|
[1] |
Radiator
|
|
| 2. |
192618
|
[1] |
Hose
|
L=1350mm
|
| 3. |
960630
|
[1] |
Plug
|
|
| 4. |
969011
|
[1] |
Gasket
|
|
| 5. |
866095
|
[1] |
Pressure cap
|
Not when extra expansion tank is mounted.
|
| 5. |
344753
|
[1] |
Radiator cap
|
Only when extra expansion tank is mounted
|
| 6. |
11994
|
[1] |
Gasket
|
|
| 7. |
947660
|
[1] |
Plug
|
|
| 8. |
866093
|
[1] |
Charge air cooler
|
|
| 9. |
3825748
|
[1] |
Fan shroud
|
|
| 10. |
973924
|
[8] |
Flange screw
|
(965179)
|
| 11. |
946173
|
[4] |
Flange screw
|
|
| 12. |
849170
|
[2] |
Rubber cushion
|
|
| 13. |
955850
|
[4] |
Hexagon nut
|
|
| 14. |
940280
|
[4] |
Spring washer
|
|
| 15. |
866109
|
[1] |
Attaching plate
|
|
| 16. |
865158
|
[1] |
Radiator stay
|
|
| 17. |
191940
|
[4] |
Washer
|
|
| 18. |
252202
|
[2] |
Spacer sleeve
|
|
| 19. |
866857
|
[4] |
Rubber bushing
|
|
| 20. |
941912
|
[3] |
Spring washer
|
|
| 21. |
955793
|
[3] |
Hexagon nut
|
|
| 22. |
865281
|
[1] |
Hose
|
|
| 23. |
865280
|
[1] |
Hose
|
|
| 24. |
943479
|
[2] |
Hose clamp
|
|
| 25. |
943480
|
[2] |
Hose clamp
|
|
| 26. |
944386
|
[1] |
Rubber hose
|
L=1150mm
|
| 27. |
942649
|
[1] |
Elbow nipple
|
|
| 28. |
994560
|
[3] |
Hose clamp
|
|
| 29. |
3826842
|
[1] |
Tube
|
|
| 30. |
865165
|
[1] |
Charge air pipe
|
|
| 31. |
865127
|
[1] |
Charge air hose
|
|
| 32. |
865575
|
[6] |
Hose clamp
|
|
| 33. |
866689
|
[1] |
Hose
|
|
| 34. |
1544731
|
[2] |
Hose clamp
|
|
| 35. |
865317
|
[4] |
Anchorage
|
|
| 36. |
|
|
|
|
| 37. |
965188
|
[4] |
Flange screw
|
|
| 38. |
971098
|
[4] |
Flange lock nut
|
|
| 39. |
865128
|
[2] |
Charge air hose
|
|
| 40. |
3825616
|
[2] |
Fan guard
|
|
| 41. |
946173
|
[2] |
Flange screw
|
M8x20mm
|
| 42. |
966807
|
[12] |
Flange screw
|
M8x16mm
|
| 43. |
948211
|
[8] |
Cable tie
|
|
| 44. |
865159
|
[1] |
Radiator protector
|
|
| 45. |
846118
|
[1] |
Emblem
|
|
| 46. |
941651
|
[2] |
Cross recessed sunk
|
|
| 47. |
947760
|
[6] |
Flange screw
|
|
| 48. |
952637
|
[1] |
Clamp
|
|
| 49. |
972603
|
[1] |
Six point socket scr
|
|
| 50. |
960138
|
[1] |
Washer
|
|
| 51. |
3827367
|
[1] |
Expansion tank
|
|
| 52. |
339958
|
[2] |
Tensioning band
|
|
| 53. |
31406
|
[2] |
Hexagon screw
|
|
| 54. |
31405
|
[2] |
Pin
|
|
| 55. |
31404
|
[2] |
Clevis pin
|
|
| 56. |
479953
|
[3] |
Elbow nipple
|
|
| 57. |
192618
|
[1] |
Hose
|
|
| 58. |
845422
|
[1] |
Plastic plug
|
|
| 59. |
3826803
|
[2] |
Bracket
|
|
| 60. |
994556
|
[6] |
Hose clamp
|
|
| 61. |
943367
|
[1] |
Rubber hose
|
|
| 62. |
1674083
|
[1] |
Pressure cap
|
|
| 63. |
3828863
|
[1] |
Rubber collar
|
|
| 64. |
971098
|
[4] |
Flange lock nut
|
|
| 65. |
946329
|
[4] |
Flange screw
|
|
| 66. |
942649
|
[1] |
Elbow nipple
|
|
| 67. |
960632
|
[1] |
Plug
|
|
| 68. |
11998
|
[1] |
Gasket
|
|
| 69. |
3825346
|
[1] |
Decal
|
|
| 70. |
3827294
|
[1] |
Decal
|
|
