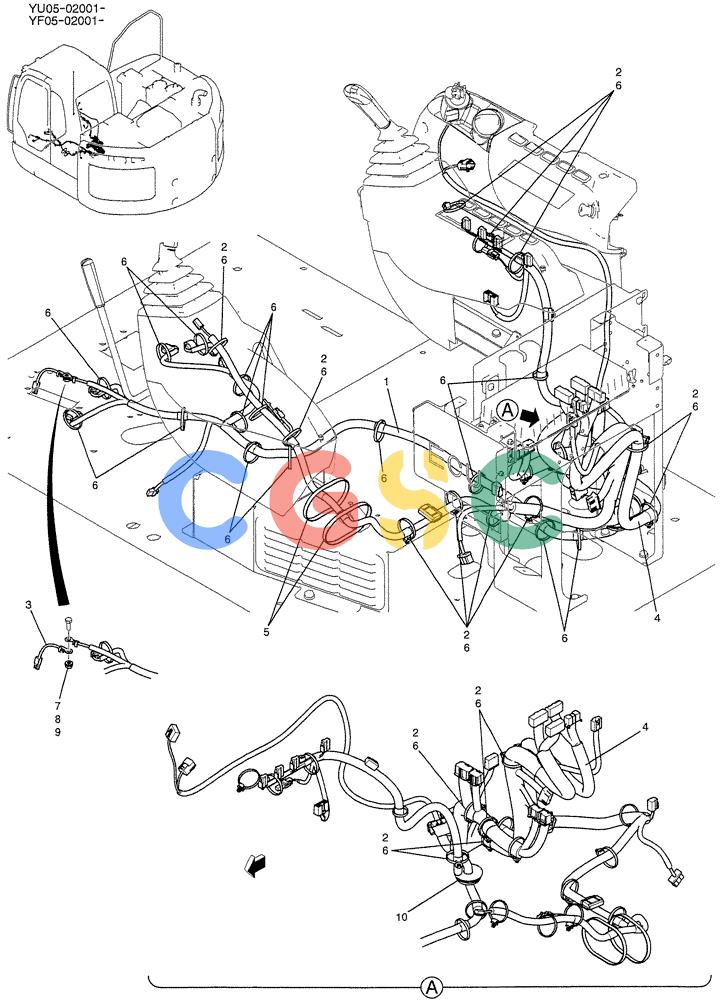

纽荷兰零件查询(E235BSRNLC) - CRAWLER EXCAVATOR ASN YU05-02001 (01-075) - HARNESS ASSY, UPPER (FLOOR PLATE) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
359 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YB13E00025F1 | [1] | HARNESS ASSY, UPP (FLOOR PLATE) | |
| 1. | YB13E01071P2 | [1] | HARNESS | KOB Superseded by part number: YB13E01071P3 |
| 2. | YN13E01375P1 | [17] | CLIP,M8 x 8.20mm Shank | KOB |
| 3. | LE13E01005P1 | [1] | CABLE,100mm L | KOB |
| 4. | YB13E01054P1 | [1] | HARNESS | KOB |
| 5. | PY01P01043D8 | [2] | CABLE TIE,102mm L | KOB |
| 6. | PY01P01043D3 | [32] | CABLE TIE,188mm L | KOBWire Ties -- 188mm Long |
| 7. | ZW26X08000 | [1] | LOCK WASHER | KOBLock Superseded by part number: 83990583 |
| 8. | ZW16P08000 | [1] | WASHER | KOBID 08 x OD 17 x Th 1.6mm |
| 9. | ZN18C08007 | [1] | NUT | KOBM08x1.25mm |
| 10. | YB13E01055P1 | [1] | GROMMET | KOB |
