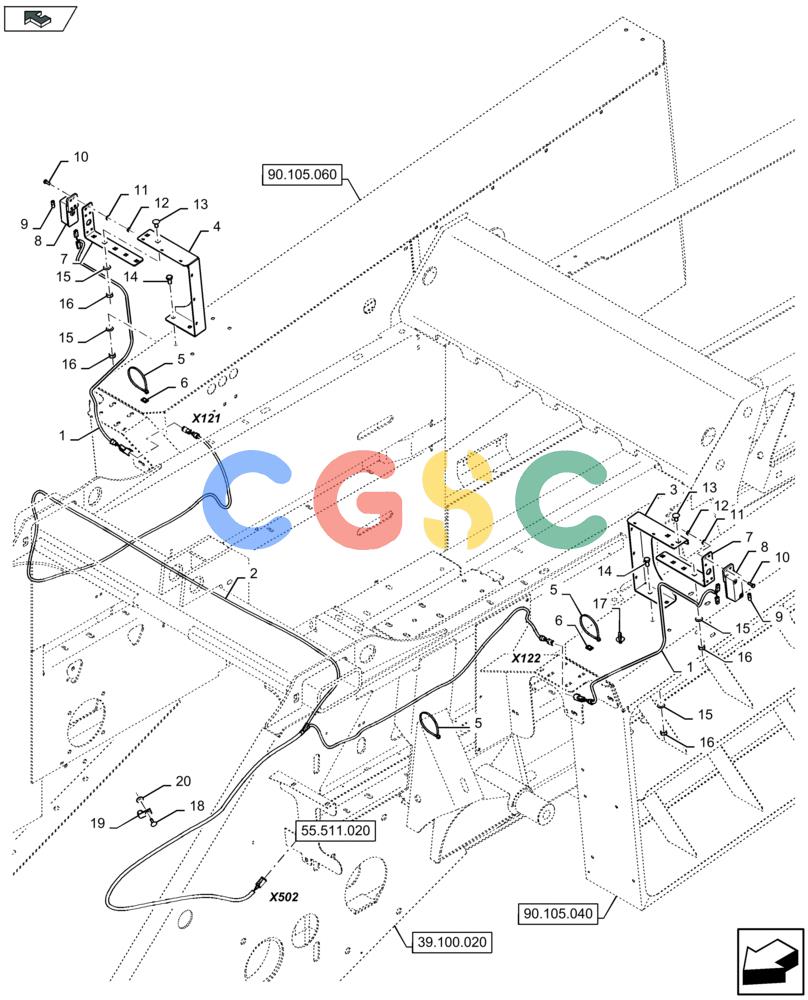

| 1. |
84554131
|
[2] |
WIRE HARNESS
|
ZED
|
| 2. |
84554130
|
[1] |
WIRE HARNESS
|
ZED
|
| 3. |
84604681
|
[1] |
SUPPORT
|
ZED
|
| 4. |
84604683
|
[1] |
SUPPORT
|
ZED
|
| 5. |
86566990
|
[36] |
CABLE TIE,292mm OAL x 4.8mm W
|
ZED
|
| 6. |
8467255
|
[2] |
CLIP
|
BER
Superseded by part number: 73171113
|
| 7. |
84605184
|
[2] |
PLATE
|
ZED
|
| 8. |
449531
|
[2] |
POSITION LAMP,Red
|
ZED
, Serial Range: -C084
|
| 8. |
47381350
|
[2] |
POSITION LAMP
|
PLO
, Start Serial: D085
|
| 9. |
353078
|
[2] |
BULB,T8/4, 12V, 4W
|
ZED
Superseded by part number: 3050199R91
|
| 10. |
120100
|
[4] |
BOLT,M6 x 20mm, Cl 8.8
|
NH
, Serial Range: -C084
|
| 10. |
86511042
|
[4] |
SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8
|
ZED
, Start Serial: D085 Superseded by part number: 13272214
|
| 11. |
322357
|
[4] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
, Serial Range: -C084
|
| 11. |
322355
|
[4] |
BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk
|
NH
, Start Serial: D085
|
| 12. |
9706755
|
[4] |
NUT,M6, Cl 8
|
NH
, Serial Range: -C084 Superseded by part number: 86500688
|
| 12. |
385681
|
[4] |
NUT,M4 x 0.7, Cl 8
|
MKT
, Start Serial: D085
|
| 13. |
120041
|
[4] |
CARRIAGE BOLT,M10 x 20mm, Cl 8.8
|
NH
|
| 14. |
43138
|
[4] |
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8
|
NH
|
| 15. |
140045
|
[8] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 16. |
100016
|
[8] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 17. |
82033028
|
[2] |
CABLE TIE,170mm L
|
BAS
, Start Serial: D085
|
| 18. |
9512290
|
[2] |
RIVET,Pop, 4.8mm OD x 17.8mm L
|
ZED
, Serial Range: -F085144
|
| 19. |
858956
|
[2] |
CLAMP,11.1mm, Coat, 8.7mm Bolt Hole, P Type
|
NH
, Serial Range: -F085144
|
| 20. |
140182
|
[2] |
WASHER,5.5mm ID x 18mm OD x 2mm Thk
|
ZED
, Serial Range: -F085144
|
