沃尔沃零件查询TAMD71B; TAMD73P-A; TAMD73WJ-AElectrical SystemAlternator 14V 50A, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
811 次

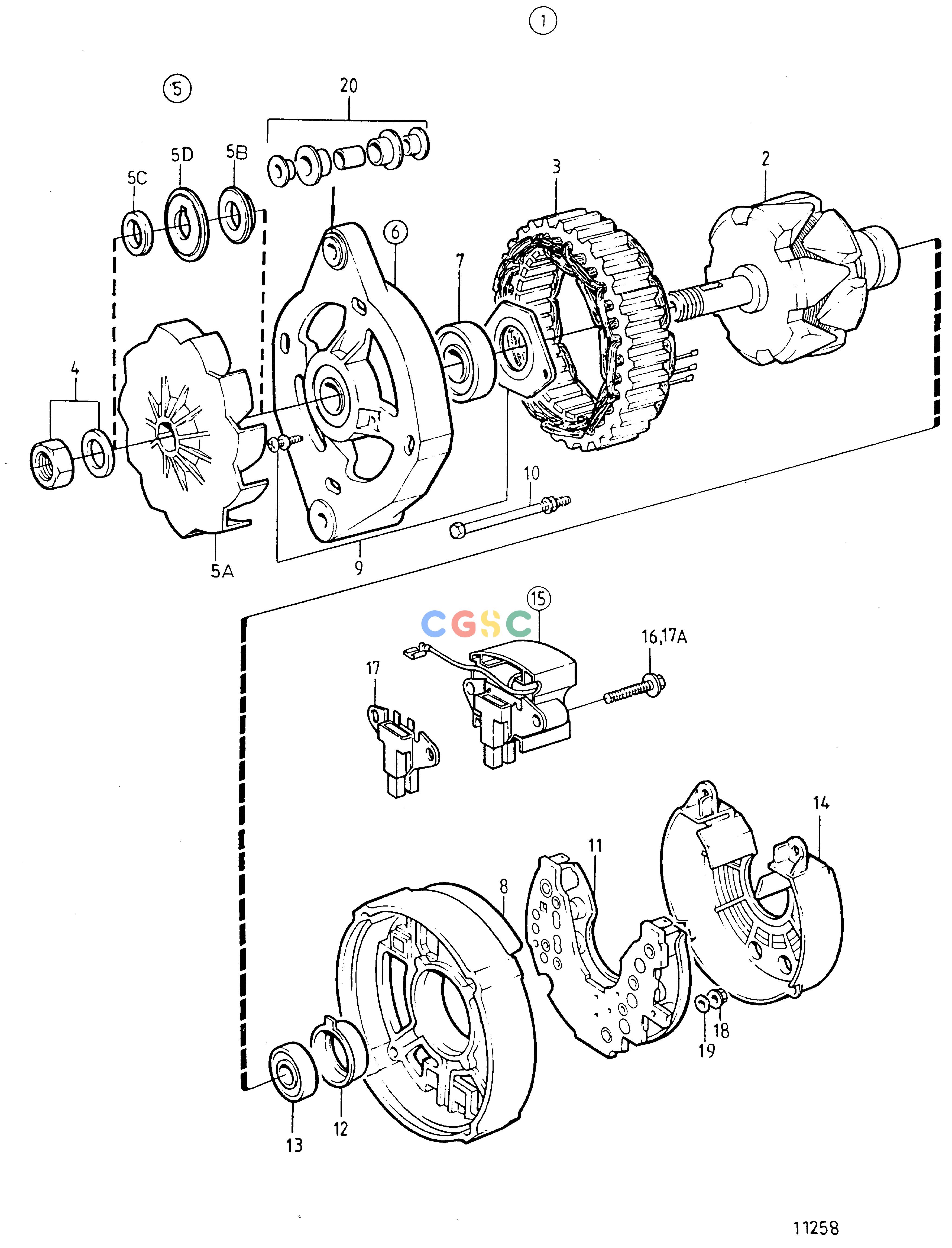

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
872018
|
[1] |
Alternator
|
14V 50A
|
| 2. |
|
|
|
|
| 3. |
859421
|
[1] |
Stator
|
|
| 4. |
6212688
|
[1] |
Mounting kit
|
|
| 5. |
860281
|
[1] |
Fan kit
|
|
| 5A. |
|
|
|
|
| 5B. |
862897
|
[1] |
Spacer
|
|
| 5C. |
860284
|
[1] |
Spacer
|
|
| 5D. |
860283
|
[1] |
Washer
|
|
| 6. |
|
|
|
|
| 7. |
860432
|
[1] |
Ball bearing
|
|
| 8. |
|
|
|
|
| 9. |
840625
|
[1] |
Mounting kit
|
|
| 10. |
|
|
|
|
| 11. |
1698689
|
[1] |
Diode bridge
|
This diode bridge with zener-diodes replaces all the earlier diode bridges
|
| 12. |
840629
|
[1] |
Bearing race
|
|
| 13. |
864351
|
[1] |
Ball bearing
|
|
| 14. |
840631
|
[1] |
Protecting casing
|
|
| 15. |
872367
|
[1] |
Regulator kit
|
|
| 16. |
859312
|
[6] |
Screw
|
|
| 17. |
840632
|
[1] |
Brush retainer
|
|
| 17A. |
859312
|
[2] |
Screw
|
|
| 18. |
955779
|
[1] |
Hexagon nut
|
M4, w
|
| 18. |
965483
|
[2] |
Flange nut
|
M5, D+, B-
|
| 18. |
945407
|
[1] |
Flange nut
|
M6, b+
|
| 19. |
941904
|
[1] |
Spring washer
|
W
|
| 20. |
840634
|
[1] |
Guide
|
|
