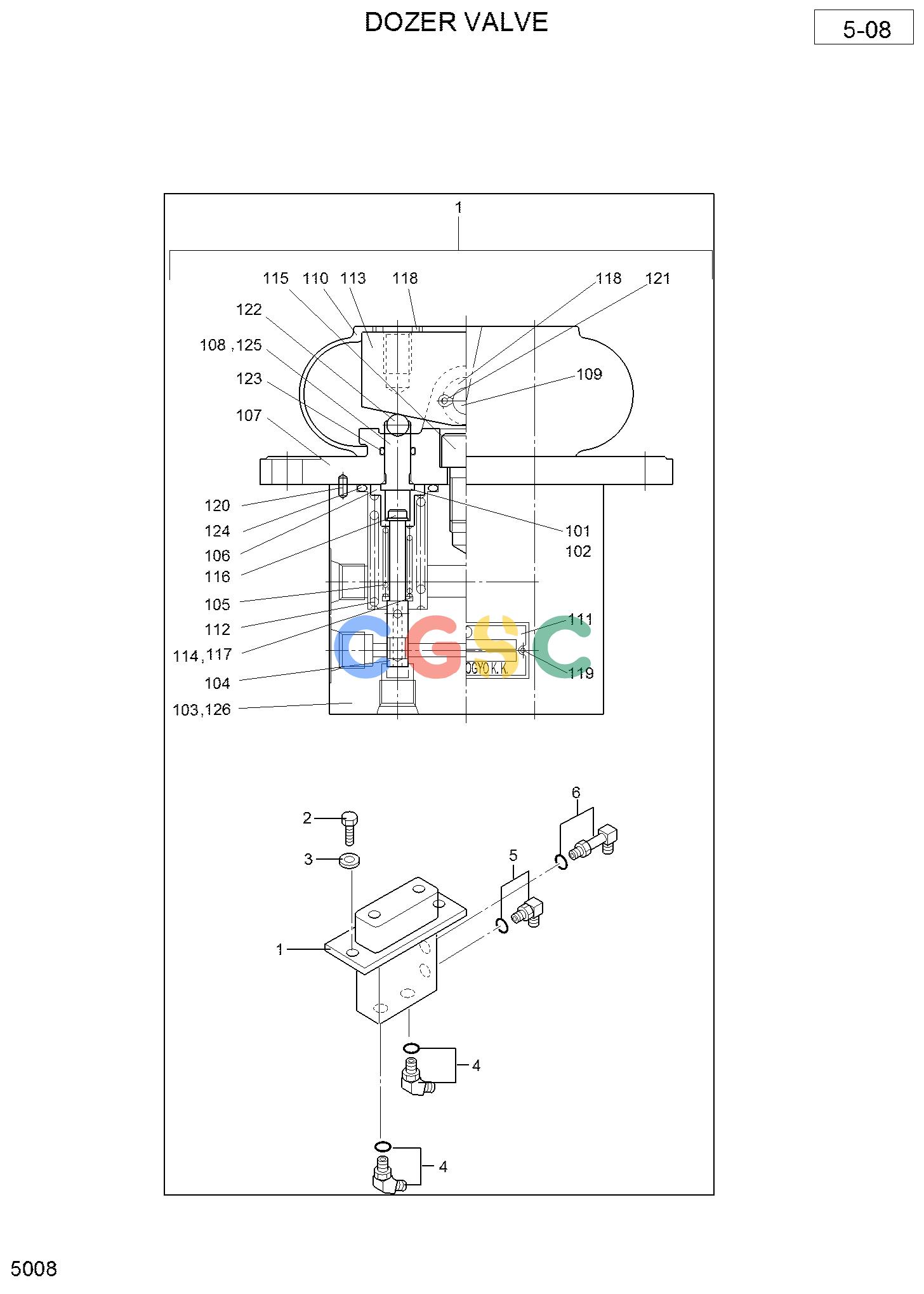

现代零件查询R28-7 DOZER VALVEEPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
874 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-01755
|
[1] |
VALVE-PILOT
|
|
| 101. |
XJDH-01986
|
[2] |
SHIM
|
|
| 125. |
XJDH-01994
|
[2] |
PUSHER ASSY
|
|
| N126. |
@
|
[1] |
BODY ASSY
|
|
| 102. |
XJDH-01987
|
[2] |
SHIM
|
|
| N103. |
@
|
[1] |
BODY
|
|
| N104. |
@
|
[2] |
SPOOL
|
|
| 105. |
XJDH-01988
|
[2] |
SPRING-COMP
|
|
| 106. |
XJDH-01989
|
[2] |
SLEEVE
|
|
| N107. |
@
|
[1] |
COVER
|
|
| N108. |
@
|
[2] |
PUSHER
|
|
| 109. |
XJDH-01990
|
[1] |
PIN
|
|
| 110. |
XJDH-01991
|
[1] |
BOOT
|
|
| N111. |
@
|
[1] |
PLATE-NAME
|
|
| 112. |
XJDH-01992
|
[2] |
SPRING-COMP
|
|
| N113. |
@
|
[1] |
CAM
|
|
| 114. |
XJDH-01993
|
[2] |
SHIM
|
|
| 115. |
XJDH-00132
|
[1] |
BOLT-SOCKET HEAD
|
|
| 116. |
XJDH-00113
|
[2] |
FLANGE-BOLT
|
|
| 117. |
XJDH-00247
|
[2] |
WASHER
|
|
| 118. |
XJDH-00249
|
[4] |
WASHER
|
|
| N119. |
@
|
[2] |
SCREW
|
|
| 120. |
XJDH-00306
|
[2] |
PIN-SPRING
|
|
| 121. |
XJDH-00302
|
[2] |
PIN-SPLIT
|
|
| N122. |
@
|
[2] |
BALL-STEEL
|
|
| 123. |
XJDH-00326
|
[2] |
O-RING
|
|
| 124. |
XJDH-00336
|
[2] |
O-RING
|
|
| 2. |
XJDH-00059
|
[2] |
BOLT
|
|
| 3. |
XJDH-00278
|
[2] |
WASHER
|
|
| 4. |
XJDH-00462
|
[2] |
ELBOW-MALE 45
|
|
| 5. |
XJDH-00467
|
[1] |
ELBOW-MALE 90
|
|
| 6. |
XJDH-00480
|
[1] |
ADAPTER-LONG 90
|
|
| N. |
@
|
[1] |
NOT INDIVIDUALLY SUPPLIED
|
|
