纽荷兰零件查询(E235SR) - CRAWLER EXCAVATOR BTW YF04-01513 - YF04-01758 (07-002) - LIGHT ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
604 次

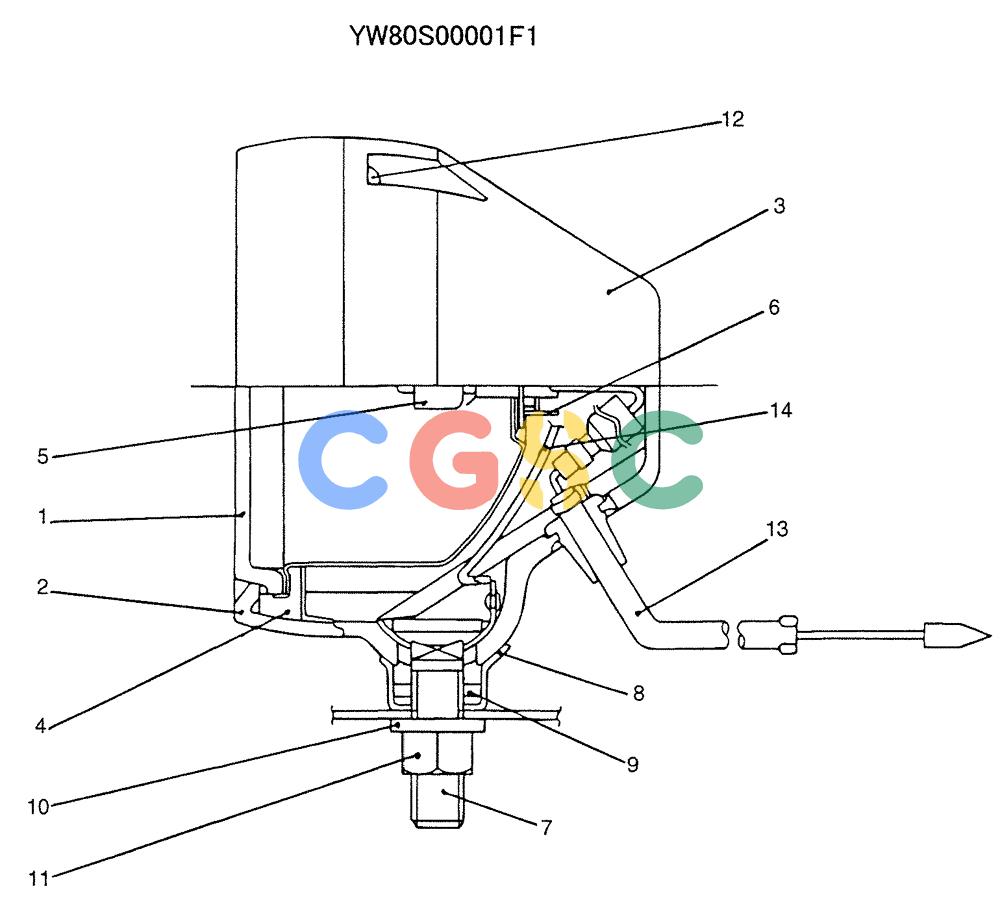

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YW80S00001F1 | [1] | LIGHT ASSY. | KOB Superseded by part number: 2456R442F1 |
| 1. | YW80S00001S001 | [1] | LAMP | KOBUNIT |
| 2. | YW80S00001S002 | [1] | CAPPING | KOBRIM |
| 3. | NSS | [1] | NOT SERVICED SEPARATELY | CONBODY |
| 4. | YW80S00001S004 | [1] | GASKET | KOB |
| 5. | YW80S00001S005 | [1] | BULB | KOB |
| 10. | YW80S00001S010 | [1] | LOCK WASHER | KOB |
| 11. | YW80S00001S011 | [1] | NUT | KOB |
| 12. | YW80S00001S012 | [4] | SCREW | KOBCAP Superseded by part number: ZS32T05025 |
