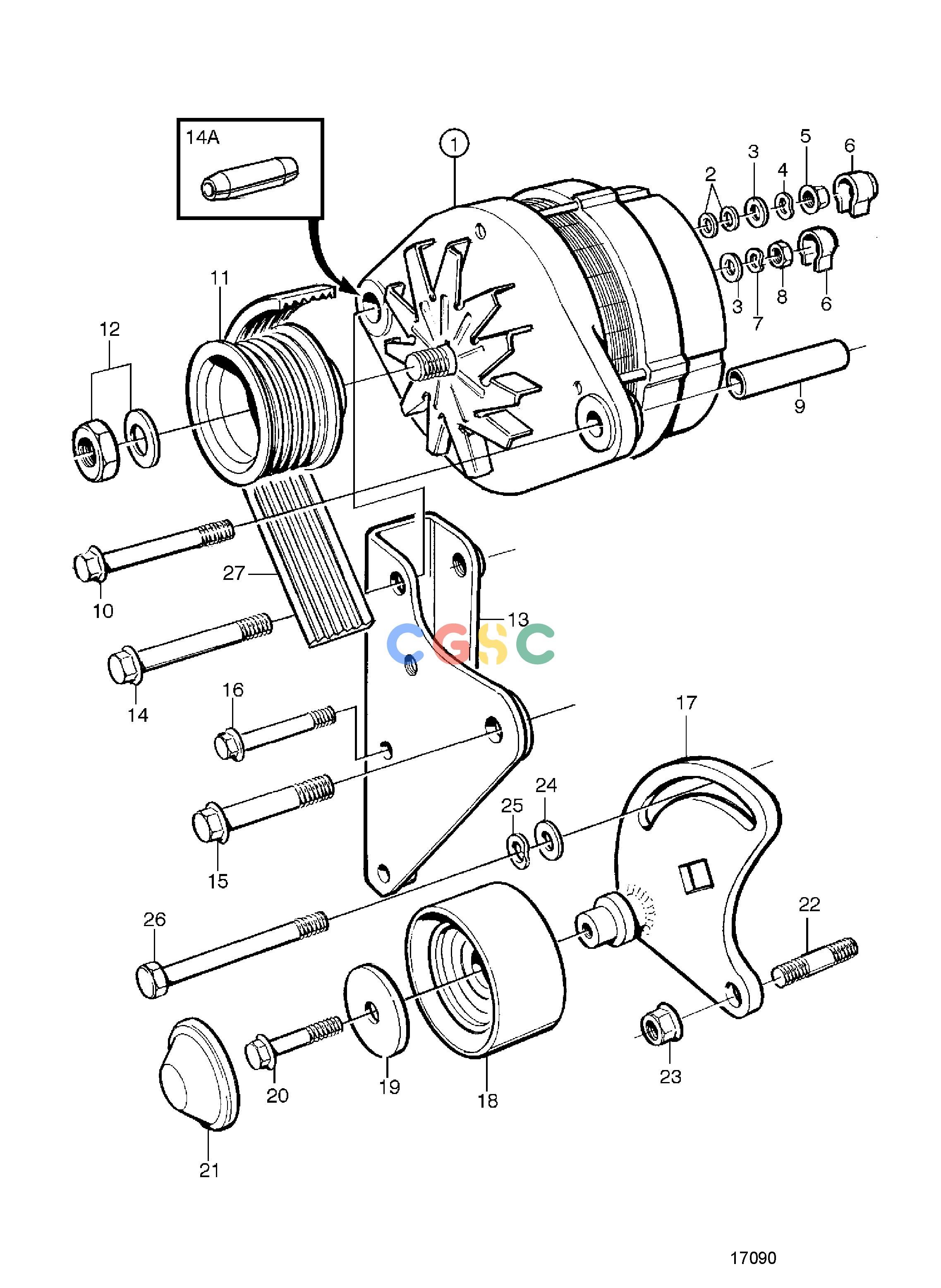

沃尔沃零件查询TAMD71B; TAMD73P-A; TAMD73WJ-AElectrical SystemAlternator: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
261 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 1. |
873770
|
[1] |
Alternator
|
12V
|
| 1. |
3803444
|
[1] |
Alternator, exch
|
12V
|
| 1. |
872927
|
[1] |
Alternator
|
24V
|
| 1. |
3803619
|
[1] |
Alternator, exch
|
|
| 1. |
873771
|
[1] |
Alternator
|
(873757)
|
| 1. |
3803443
|
[1] |
Alternator, exch
|
(873757)
|
| 2. |
940090
|
[2] |
Washer
|
|
| 3. |
960140
|
[2] |
Washer
|
|
| 4. |
941905
|
[1] |
Spring washer
|
|
| 5. |
965483
|
[1] |
Flange nut
|
|
| 6. |
1234326
|
[2] |
Protecting casing
|
|
| 7. |
949607
|
[1] |
Spring washer
|
|
| 8. |
955781
|
[1] |
Hexagon nut
|
|
| 9. |
823494
|
[1] |
Spacer sleeve
|
|
| 10. |
965181
|
[1] |
Flange screw
|
|
| 11. |
866220
|
[1] |
Pulley
|
|
| 12. |
6212688
|
[1] |
Mounting kit
|
|
| 13. |
866219
|
[1] |
Bracket
|
|
| 14. |
947790
|
[1] |
Flange screw
|
|
| 14A. |
1610144
|
[1] |
Spring pin
|
For 873771
|
| 15. |
965195
|
[1] |
Flange screw
|
|
| 16. |
965180
|
[2] |
Flange screw
|
|
| 17. |
866654
|
[1] |
Bracket
|
|
| 18. |
3154314
|
[1] |
Idler pulley
|
|
| 19. |
1675387
|
[1] |
Washer
|
|
| 20. |
945444
|
[1] |
Flange screw
|
|
| 21. |
1675386
|
[1] |
Protecting cover
|
|
| 22. |
953067
|
[1] |
Stud
|
|
| 23. |
971098
|
[1] |
Flange lock nut
|
|
| 24. |
976945
|
[1] |
Washer
|
|
| 25. |
941908
|
[1] |
Spring washer
|
|
| 26. |
970961
|
[1] |
Hexagon screw
|
|
| 27. |
7740910_116
|
|
Drive belt
|
|
