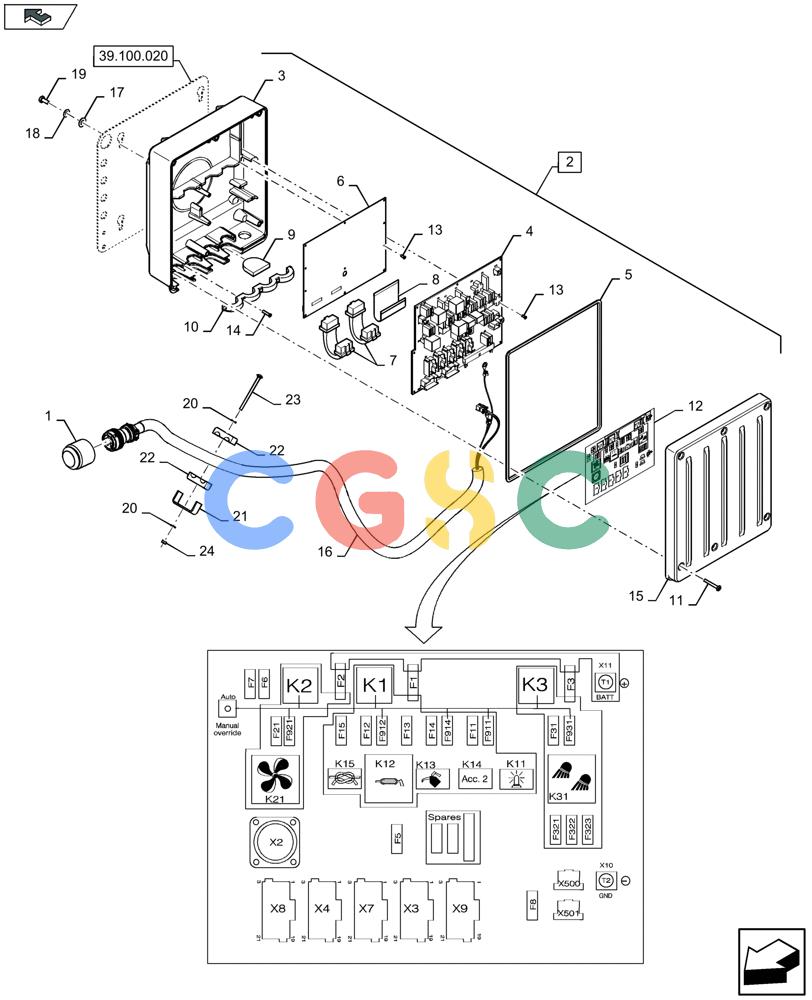

凯斯零件查询(LB324S) - BALER (9/12-) (55.640.010) - CONTROL BOX - C136 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
519 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87105683
|
[1] |
CAP
|
GI
|
| 2. |
47371550
|
[1] |
ECU
|
ZED
Incl 3 - 16, Serial Range: -C035 Superseded by part number: 47426237
|
| 2. |
47426237
|
[1] |
ECU
|
ZED
Incl 3 - 16, Start Serial: D036
|
| 3. |
84537481
|
[1] |
CONTROL UNIT
|
ZED
Superseded by part number: 87395817
|
| 4. |
84496234
|
[1] |
PRINTED CIRCUIT BOAR
|
ZED
|
| 5. |
84490359
|
[1] |
SEAL
|
ZED
|
| 6. |
84238173
|
[1] |
PRINTED CIRCUIT BOAR
|
ZED
,, Serial Range: -C035
|
| 6. |
47426236
|
[1] |
PRINTED CIRCUIT BOAR
|
ZED
,, Start Serial: D036
|
| 7. |
87349912
|
[2] |
ELECTRIC CABLE
|
ZED
|
| 8. |
87349913
|
[1] |
CABLE
|
ZED
|
| 9. |
87339935
|
[2] |
PLUG
|
ZED
|
| 10. |
87349919
|
[1] |
CLAMP
|
ZED
|
| 11. |
87349920
|
[6] |
BOLT
|
PLO
|
| 12. |
47366882
|
[1] |
DECAL
|
ZED
|
| 13. |
87593594
|
[18] |
SCREW
|
ZED
|
| 14. |
87349928
|
[5] |
BOLT
|
PLO
|
| 15. |
84537456
|
[1] |
COVER
|
ZED
|
| 16. |
84460798
|
[1] |
CABLE
|
ZED
|
| 17. |
140045
|
[4] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 18. |
322358
|
[4] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 19. |
120104
|
[4] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 20. |
86588450
|
[2] |
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
|
ZED
|
| 21. |
84814948
|
[1] |
SUPPORT
|
ZED
|
| 22. |
430356
|
[2] |
CLAMP
|
ZED
|
| 23. |
120036
|
[1] |
CARRIAGE BOLT,Short Nk, M6 x 90mm, Cl 8.8
|
GI
Superseded by part number: 80120036
|
| 24. |
412152
|
[1] |
NUT,M6 x 1, Cl 8.8
|
ZED
|
