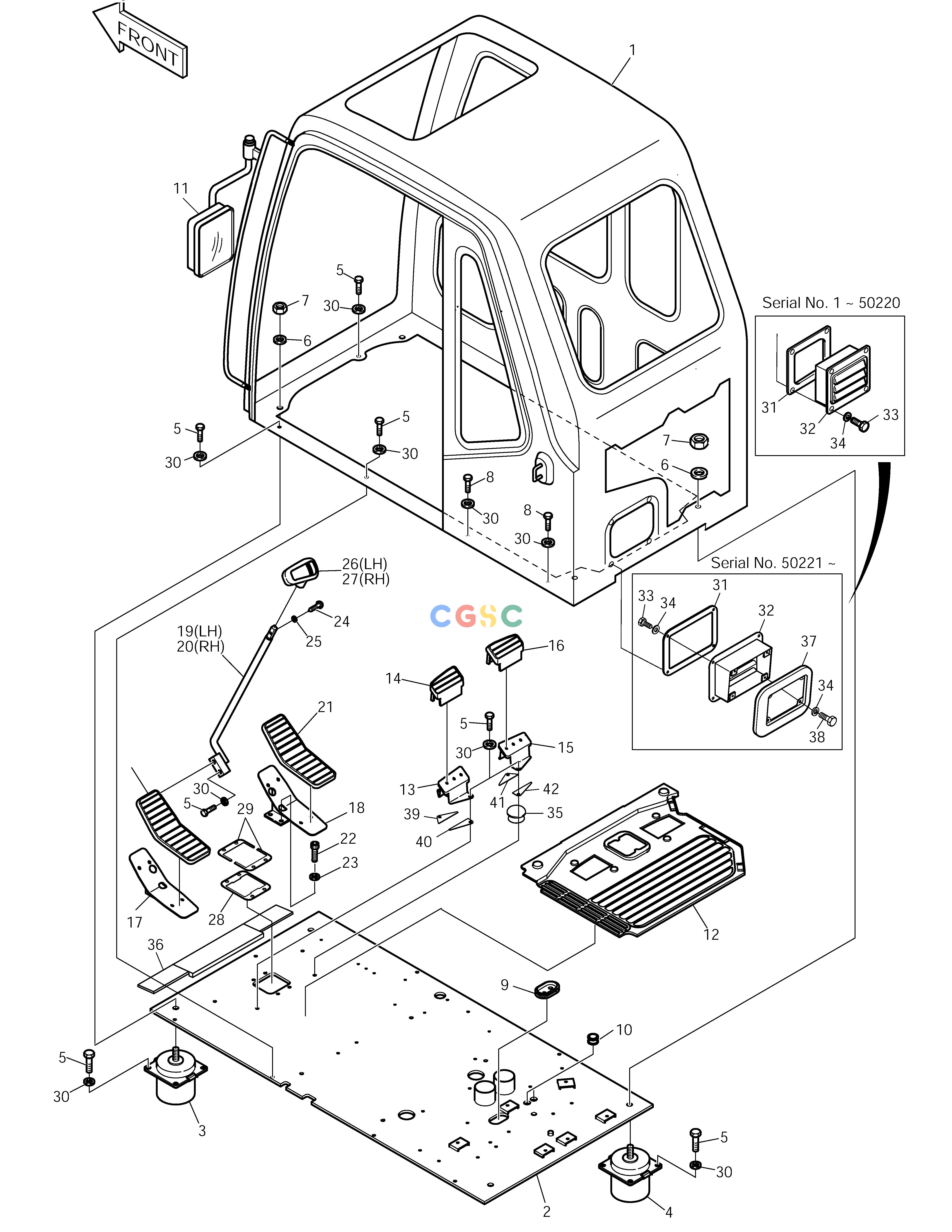

斗山零件查询CABIN ASS'Y SOLAR 170LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
897 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2622-1545E
|
[-] |
CABIN ASS'Y
|
|
| -. |
2622-1545H
|
[-] |
CABIN ASS'Y
|
|
| 1. |
2622-1432N
|
[1] |
CABIN ASS'Y
|
|
| 1. |
2622-1432Q
|
[1] |
CABIN ASS'Y
|
|
| 10. |
2160-1004D48
|
[2] |
BUSHING;RUBBER
|
|
| 11. |
2903-9012
|
[1] |
MIRROR;MAIN
|
|
| 11. |
9903-9001
|
[1] |
MIRROR;MAIN
|
|
| 12. |
2161-2266
|
[1] |
MAT;FLOOR
|
|
| 13. |
2197-1704A
|
[1] |
BRACKET;FOOT REST(L.H)
|
|
| 14. |
2161-2216
|
[1] |
COVER;FOOT REST(L.H)
|
|
| 15. |
2197-1744A
|
[1] |
BRACKET;FOOT REST(R.H)
|
|
| 16. |
2161-2235
|
[1] |
COVER;FOOT REST(R.H)
|
|
| 17. |
2197-1818
|
[1] |
BRACKET;PEDAL(L.H)
|
|
| 18. |
2197-1817
|
[1] |
BRACKET;PEDAL(R.H)
|
|
| 19. |
2133-2013B
|
[1] |
LEVER(LH)
|
|
| 2. |
2621-3746E
|
[1] |
FLOOR PLATE PL12
|
|
| 2. |
2621-3746G
|
[1] |
FLOOR PLATE PL12
|
|
| 20. |
2133-2012B
|
[1] |
LEVER(RH)
|
|
| 21. |
2161-2257
|
[2] |
RUBBER;PEDAL
|
|
| 22. |
S2211861
|
[4] |
BOLT;SOCKET M10X1.5X20
|
|
| 23. |
S5110601
|
[4] |
WASHER;SPRING M10
|
|
| 24. |
S3450573
|
[2] |
SCREW
|
|
| 25. |
S5000113
|
[2] |
WASHER
|
|
| 26. |
2132-1133B
|
[1] |
GRIP,LEVER(L.H)
|
|
| 27. |
2132-1134B
|
[1] |
GRIP,LEVER(R.H)
|
|
| 28. |
161-00077
|
[1] |
PLATE;RUBBER
|
|
| 29. |
621-00564
|
[2] |
SHIM
|
|
| 3. |
2161-9057
|
[2] |
CABIN MOUNT;FRONT
|
|
| 30. |
2114-1898D1
|
[31] |
WASHER
|
|
| 31. |
2161-2317
|
[1] |
RUBBER;PLATE
|
|
| 32. |
2213-1115
|
[1] |
PLATE;COVER
|
|
| 33. |
2120-2166D6
|
[4] |
BOLT
|
|
| 34. |
2114-1898D3
|
[4] |
WASHER
|
|
| 34. |
2114-1898D3
|
[8] |
WASHER
|
|
| 35. |
2161-2487
|
[1] |
CAP
|
|
| 36. |
2161-2506
|
[1] |
MAT;FRONT
|
|
| 37. |
621-01160
|
[1] |
COVER;FRESH AIR DUCT
|
|
| 38. |
2120-2166D19
|
[4] |
. BOLT M6X1.0X12
|
|
| 39. |
161-00329
|
[1] |
RUBBER;DAMPER(L.H)
|
|
| 4. |
2161-9058
|
[2] |
CABIN MOUNT;REAR
|
|
| 40. |
161-00330
|
[1] |
RUBBER;DAMPER(L.H)
|
|
| 41. |
161-00331
|
[1] |
RUBBER;DAMPER(R.H)
|
|
| 42. |
161-00335
|
[1] |
RUBBER;DAMPER(R.H)
|
|
| 5. |
2120-2166D2
|
[27] |
BOLT
|
|
| 6. |
2114-1058D2
|
[4] |
WAHSER
|
|
| 7. |
2121-9007
|
[4] |
NUT
|
|
| 8. |
2120-2166D3
|
[4] |
BOLT M10X1.5X65
|
|
| 9. |
2160-1308
|
[1] |
BUSHING;RUBBER
|
|
