斗山零件查询TRACK SHOE ASS'Y-500G-INTERTRACTOR SOLAR 170LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
820 次

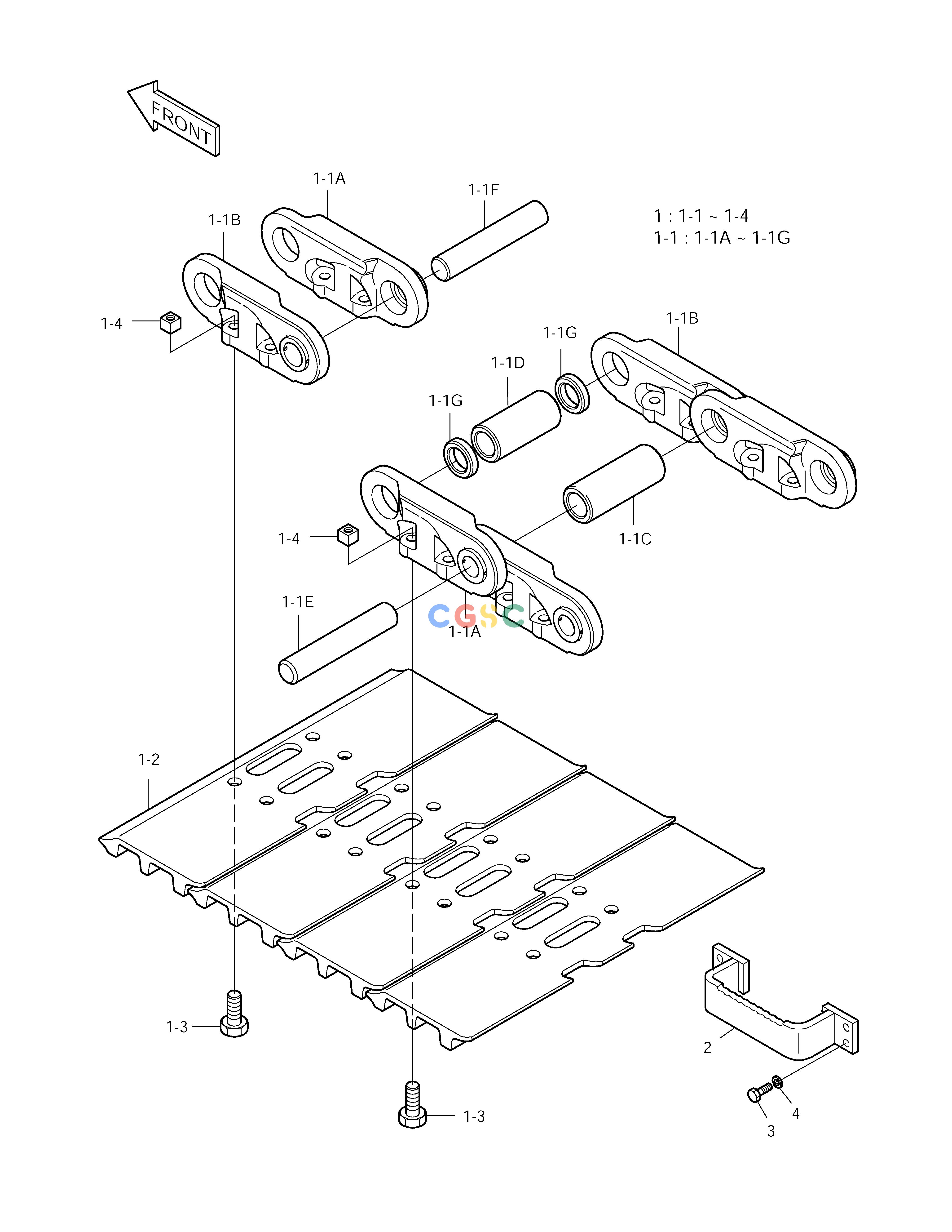

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
9273-6010D1
|
[2] |
TRACK SHOE ASS'Y
|
|
| 1-1. |
9272-6006
|
[1] |
LINK ASS'Y
|
|
| 1-1A. |
9272-6007
|
[49] |
LINK (L.H)
|
|
| 1-1B. |
9272-6008
|
[49] |
LINK(R.H)
|
|
| 1-1C. |
9110-6001
|
[48] |
BUSHING
|
|
| 1-1D. |
9110-6002
|
[1] |
BUSHING
|
|
| 1-1E. |
9123-6001
|
[48] |
PIN
|
|
| 1-1F. |
9123-6002
|
[1] |
PIN;MASTER
|
|
| 1-1G. |
9114-6001
|
[2] |
SPACER
|
|
| 1-2. |
9272-6005-500
|
[49] |
SHOE;TRACK 500G
|
|
| 1-3. |
9120-6006D12
|
[196] |
BOLT
|
|
| 1-4. |
9121-6005D11
|
[196] |
NUT
|
|
| 2. |
2195-2527AD6
|
[4] |
BRACKET
|
|
| 3. |
S0515353
|
[16] |
BOLT M12X1.75X35
|
|
| 4. |
S5102703
|
[16] |
WASHER
|
|
