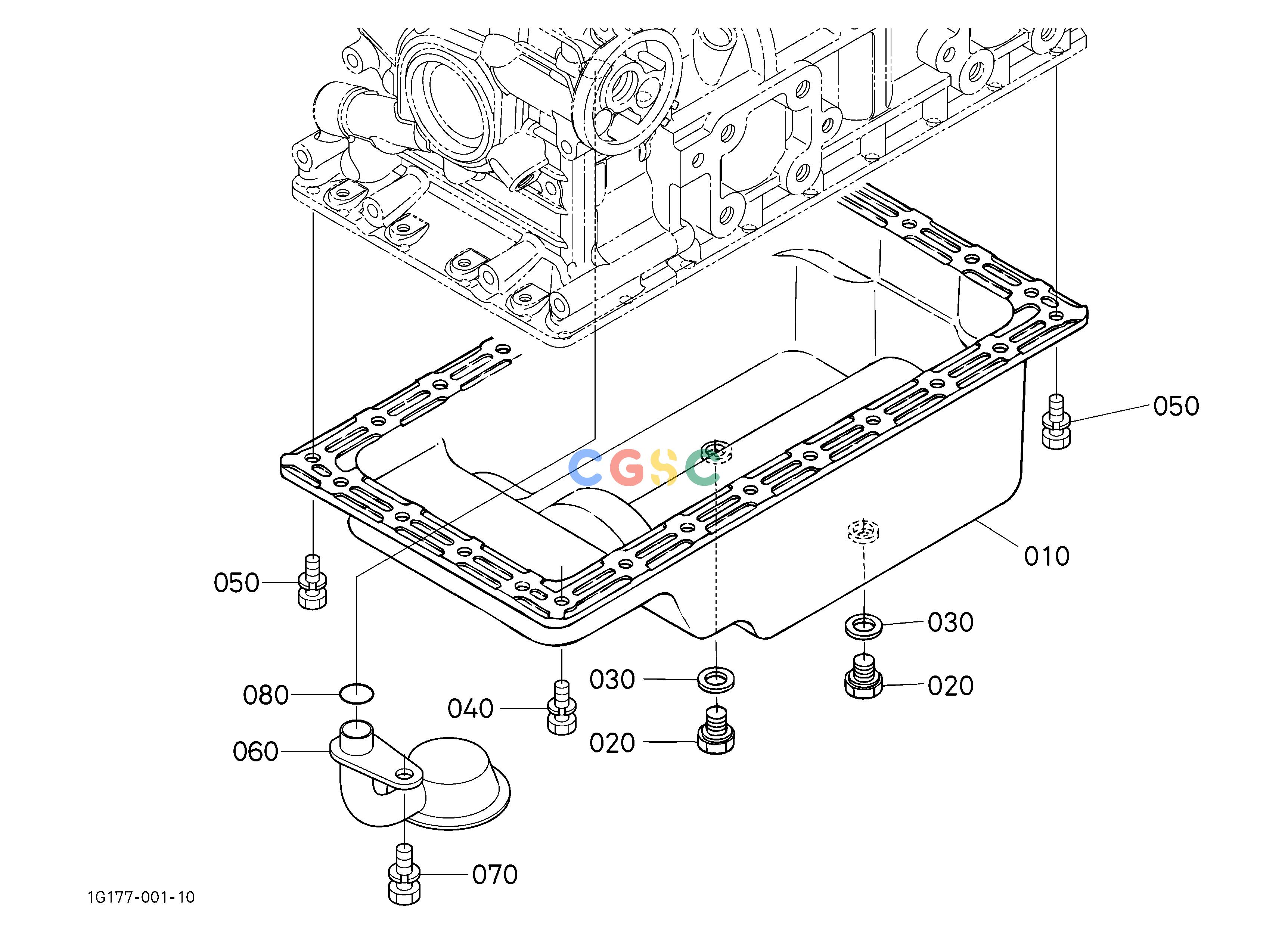

久保田零件查询100200 OIL PAN ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
264 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1627101502
|
[1] |
COMP.OIL PAN
|
3.7400(lbs); 1.700
|
| 020. |
1627133750
|
[2] |
PLUG
|
0.0748(lbs); 0.034
|
| 030. |
1547196650
|
[2] |
PACKING
|
0.0044(lbs); 0.002
|
| 040. |
0102350614
|
[24] |
BOLT,SEMS
|
0.0110(lbs); 0.005
|
| 050. |
0102350614
|
[2] |
BOLT,SEMS
|
0.0110(lbs); 0.005
|
| 060. |
1G17732110
|
[1] |
FILTER,OIL
|
0.2200(lbs); 0.100
|
| 070. |
0112350816
|
[1] |
BOLT,SEMS
|
0.0242(lbs); 0.011
|
| 080. |
0481400160
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
