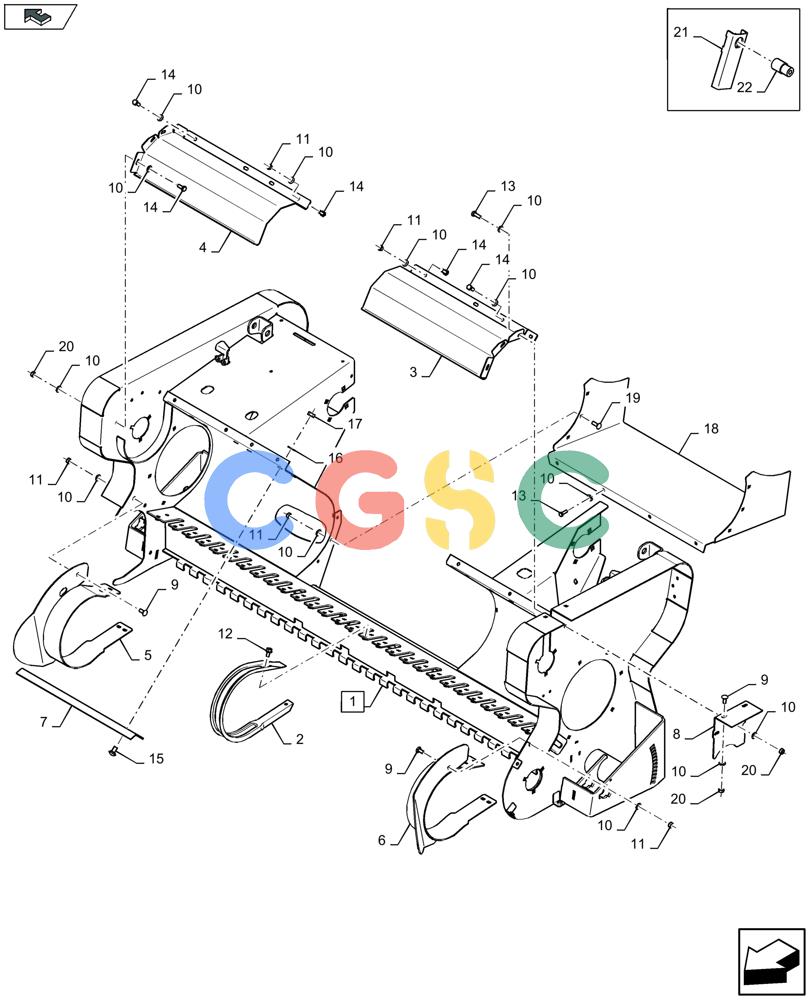

凯斯零件查询(LB324S) - BALER (9/12-) (60.220.010) - PICK-UP, FRAME - C136 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
359 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84247243
|
[1] |
FRAME
|
ZED
Incl 21, 22, Serial Range: -C084
|
| 1. |
47504318
|
[1] |
FRAME
|
ZED
Incl 21, 22, Start Serial: D085
|
| 1. |
84315080
|
[1] |
FRAME
|
ZED
Incl 21, 22, Serial Range: -C084
|
| 1. |
47504305
|
[1] |
FRAME
|
ZED
Incl 21, 22, Start Serial: D085
|
| 2. |
84274387
|
[27] |
BRACKET
|
ZED
|
| 3. |
84268704
|
[1] |
SHIELD
|
ZED
|
| 3. |
84315037
|
[1] |
SHIELD
|
ZED
|
| 4. |
84268702
|
[1] |
SHIELD
|
ZED
|
| 4. |
84315038
|
[1] |
SHIELD
|
ZED
|
| 5. |
84309224
|
[1] |
SHIELD
|
ZED
|
| 6. |
84309225
|
[1] |
SHIELD
|
ZED
|
| 7. |
84218623
|
[4] |
ADJUSTING PLATE
|
ZED
|
| 7. |
84315039
|
[4] |
PLATE
|
ZED
|
| 8. |
84492908
|
[1] |
SUPPORT
|
ZED
|
| 9. |
86507486
|
[4] |
CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 10. |
322358
|
[41] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 11. |
9706690
|
[11] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 12. |
86511478
|
[1] |
BOLT,Hex Serr, M8 x 1.25 x 16mm
|
ZED
|
| 13. |
43127
|
[6] |
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 14. |
120104
|
[14] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 15. |
120041
|
[12] |
CARRIAGE BOLT,M10 x 20mm, Cl 8.8
|
NH
|
| 16. |
140045
|
[12] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 17. |
100016
|
[12] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 18. |
84603864
|
[1] |
PLATE
|
ZED
|
| 18. |
84598878
|
[1] |
PLATE
|
ZED
|
| 18. |
84603874
|
[1] |
PLATE
|
ZED
|
| 19. |
308761
|
[6] |
CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8
|
NH
, Serial Range: -C084
|
| 20. |
86629542
|
[10] |
NUT,M8 x 1.25, Cl 8.8
|
ZED
|
| 21. |
47934252
|
[1] |
SUPPORT
|
ZED
|
| 22. |
47819175
|
[1] |
SHAFT
|
ZED
|
