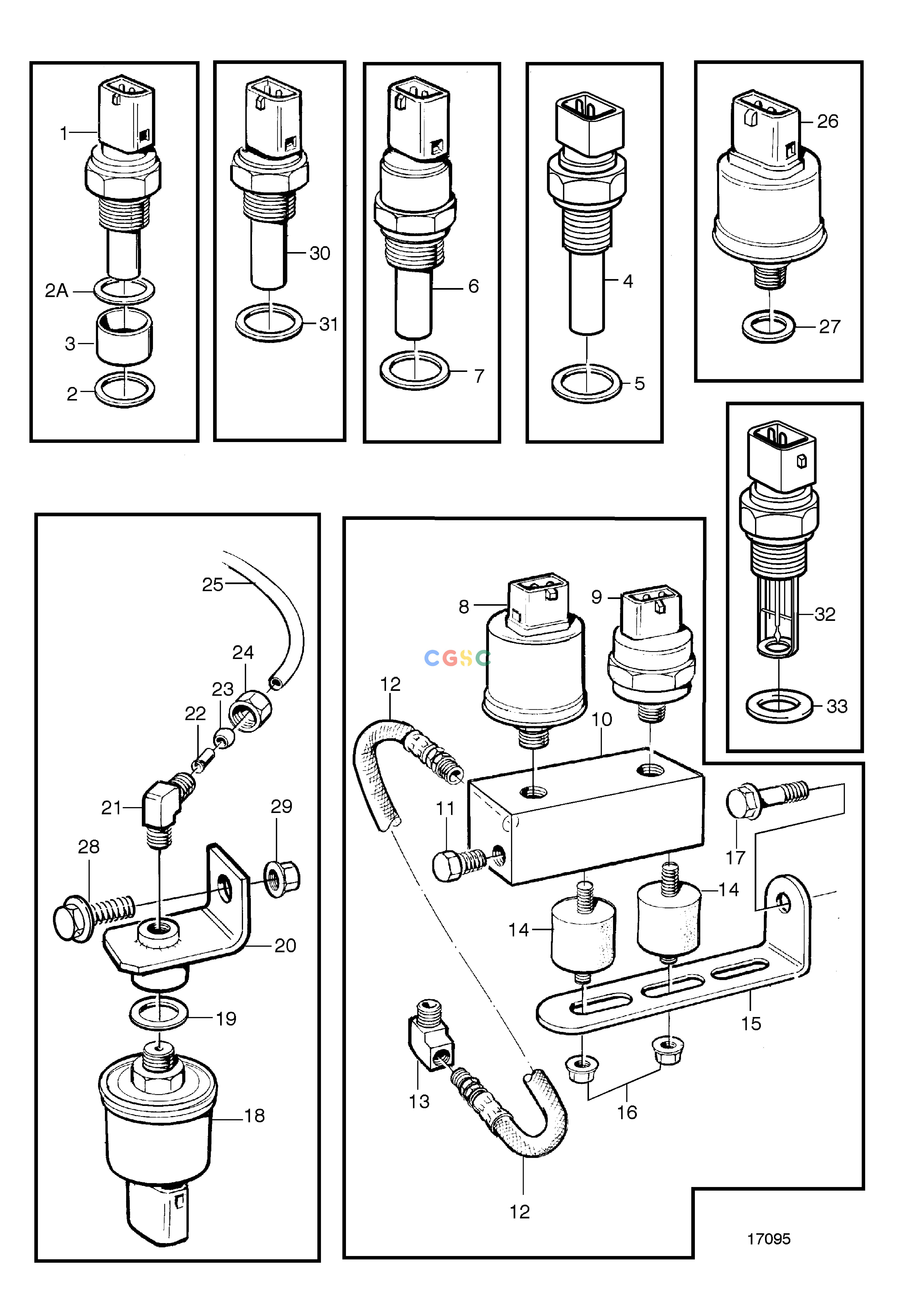

沃尔沃零件查询TAMD71B; TAMD73P-A; TAMD73WJ-AElectrical SystemContacts and Sensors: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
371 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
862154
|
[1] |
Temperature sensor, coolant water
|
For single instrument., 12V/24V, 120°C, M18
|
| 4. |
862567
|
[1] |
Temperature sensor, coolant water
|
For double instruments., 12V/24V, 120°C, M18
|
| 5. |
11998
|
[1] |
Gasket
|
(947624)
|
| 6. |
862250
|
[1] |
Thermo monitor, coolant water
|
12V/24V, 97°C
|
| 7. |
947624
|
[1] |
Gasket
|
|
| 8. |
866835
|
[1] |
Sensor, oil-engine
|
0-10BAR
|
| 8. |
866836
|
[1] |
Sensor, oil-engine
|
For double instruments., 0-10BAR
|
| 9. |
863169
|
[1] |
Pressure monitor
|
0,7bar
|
| 10. |
866704
|
[1] |
Bracket
|
|
| 11. |
479979
|
[1] |
Plug
|
|
| 12. |
334175
|
[1] |
Hose assembly
|
|
| 13. |
180110
|
[1] |
Elbow nipple
|
|
| 14. |
3574797
|
[2] |
Vibration damper
|
|
| 15. |
965561
|
[1] |
Bracket
|
|
| 16. |
949278
|
[2] |
Flange lock nut
|
|
| 17. |
946440
|
[1] |
Flange screw
|
|
| 18. |
866837
|
[1] |
Sensor, turbo
|
0-3bar
|
| 19. |
11998
|
[1] |
Gasket
|
(947624)
|
| 20. |
843698
|
[1] |
Bracket
|
|
| 21. |
954385
|
[1] |
Elbow nipple
|
|
| 22. |
944717
|
[1] |
Support sleeve
|
|
| 23. |
954364
|
[1] |
Sleeve
|
|
| 24. |
954356
|
[1] |
Fitting nut
|
|
| 25. |
945460
|
[1] |
Tube
|
L=500mm
|
| 26. |
866839
|
[1] |
Sensor, reverseing gear
|
0-30bar
|
| 27. |
947624
|
[1] |
Gasket
|
|
| 28. |
967949
|
[1] |
Flange screw
|
|
| 29. |
949278
|
[1] |
Flange lock nut
|
|
| 30. |
1624368
|
[1] |
Sensor, coolant water
|
For EDC unit., M16
|
| 31. |
947622
|
[1] |
Gasket
|
|
| 32. |
8141474
|
[1] |
Temperature sensor, air inlet
|
|
| 33. |
947624
|
[1] |
Gasket
|
|
