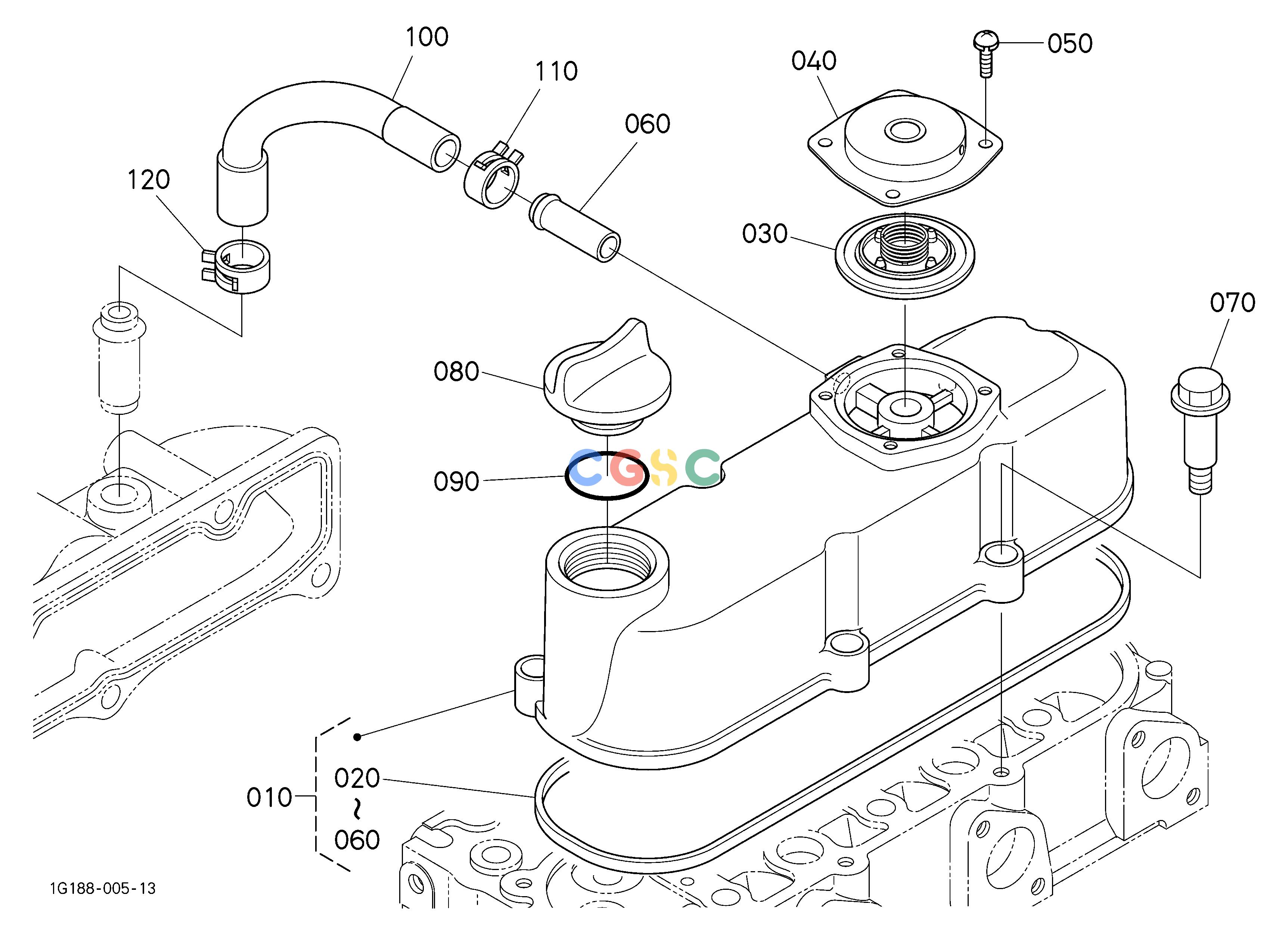

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1G70014502
|
[1] |
ASSY COVER,CYL.HEAD
|
1.7160(lbs); 0.780
|
| 020. |
1G70014520
|
[1] |
GASKET,HEAD COVER
|
0.0440(lbs); 0.020
|
| 030. |
1G91105203
|
[1] |
COMP VALVE,BREATHER
|
0.0220(lbs); 0.010
|
| 040. |
1G80105120
|
[1] |
COVER,BREATHER
|
0.0770(lbs); 0.035
|
| 050. |
0302450510
|
[4] |
SCREW,SEMS(PAN HEAD)
|
0.0044(lbs); 0.002
|
| 060. |
1733173342
|
[1] |
PIPE,WATER RETURN
|
0.0220(lbs); 0.010
|
| 070. |
1G91191022
|
[5] |
BOLT
|
0.0330(lbs); 0.015
|
| 080. |
E915133140
|
[1] |
PLUG(OIL FILLER)
|
0.0374(lbs); 0.017
|
| 090. |
0481450300
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 100. |
1G03205510
|
[1] |
TUBE,BREATHER
|
0.0374(lbs); 0.017
|
| 110. |
0931888150
|
[1] |
CLAMPHOSE
|
0.0088(lbs); 0.004
|
| 120. |
1625905580
|
[1] |
BAND,PIPE
|
0.0660(lbs); 0.030
|
