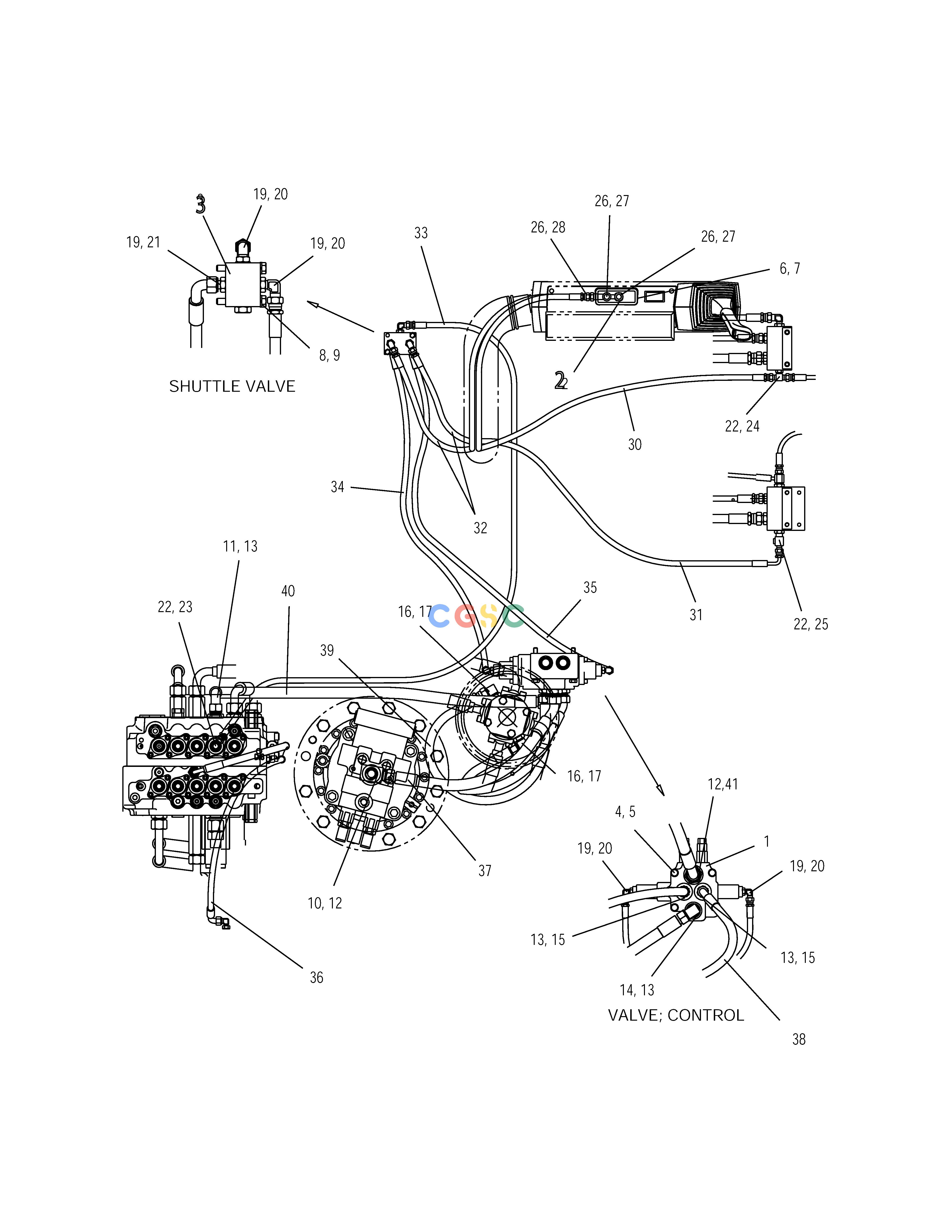

斗山零件查询BLADE PIPING FRAME SOLAR 175LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
838 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
9400-1318
|
[1] |
FRAME PIPING BLADE
|
|
| 1. |
2420-9365
|
[1] |
VALVE;CONTROL
|
|
| 10. |
2181-1951D18
|
[1] |
TEE
|
|
| 11. |
2181-1126D1
|
[1] |
ADAPTER
|
|
| 12. |
S8000291
|
[2] |
O-RING
|
|
| 13. |
S8000231
|
[4] |
O-RING
|
|
| 14. |
2181-1702D1
|
[1] |
ELBOW
|
|
| 15. |
2181-1126D24
|
[2] |
ADAPTER
|
|
| 16. |
S8000181
|
[2] |
O-RING
|
|
| 17. |
2181-1702D2
|
[2] |
ELBOW
|
|
| 19. |
S8000111
|
[7] |
O-RING
|
|
| 2. |
420-00377
|
[1] |
REMOTE CONTROL VALVE-DOZER
|
|
| 20. |
2181-1702D4
|
[5] |
ELBOW
|
|
| 21. |
2181-1126D14
|
[2] |
ADAPTER
|
|
| 22. |
S8000141
|
[3] |
O-RING
|
|
| 23. |
2181-1702D12
|
[1] |
ELBOW
|
|
| 24. |
2181-2281D4
|
[1] |
TEE
|
|
| 25. |
2181-1951D11
|
[1] |
TEE
|
|
| 26. |
S8180221
|
[6] |
RING;SEAL
|
|
| 27. |
2120-1475
|
[2] |
BOLT;HOLLOW
|
|
| 28. |
2181-1917D4
|
[2] |
ADAPTER
|
|
| 3. |
2420-9158
|
[1] |
VALVE;SHUTTLE
|
|
| 30. |
2184-1045D110
|
[1] |
HOSE PF1/4-1850L
|
|
| 31. |
2184-1046D121
|
[1] |
HOSE PF1/4-2240L
|
|
| 32. |
9184-1071D4
|
[2] |
HOSE;BANJO
|
9184-1071D9
|
| 32. |
9184-1071D9
|
[2] |
HOSE;BANJO
|
|
| 33. |
9184-1010D109
|
[1] |
HOSE
|
|
| 34. |
9184-1012D167
|
[1] |
HOSE
|
|
| 35. |
9184-1012D149
|
[1] |
HOSE
|
|
| 36. |
9184-1014D58
|
[1] |
HOSE
|
|
| 37. |
9184-1022D70
|
[1] |
HOSE
|
|
| 38. |
9184-1022D71
|
[1] |
HOSE
|
|
| 39. |
9184-1010D158
|
[1] |
HOSE
|
|
| 4. |
S0559253
|
[3] |
BOLT M10X1.5X85
|
|
| 40. |
9184-1012D225
|
[1] |
HOSE
|
|
| 41. |
2181-1126D22
|
[2] |
ADAPTER
|
|
| 5. |
S5102603
|
[3] |
. WASHER
|
|
| 6. |
S3450973
|
[2] |
SCREW M6X1.0X16
|
|
| 7. |
S5102303
|
[2] |
. WASHER
|
|
| 8. |
S0556553
|
[2] |
BOLT M8X1.25X60
|
|
| 9. |
S5102503
|
[2] |
. WASHER
|
|
