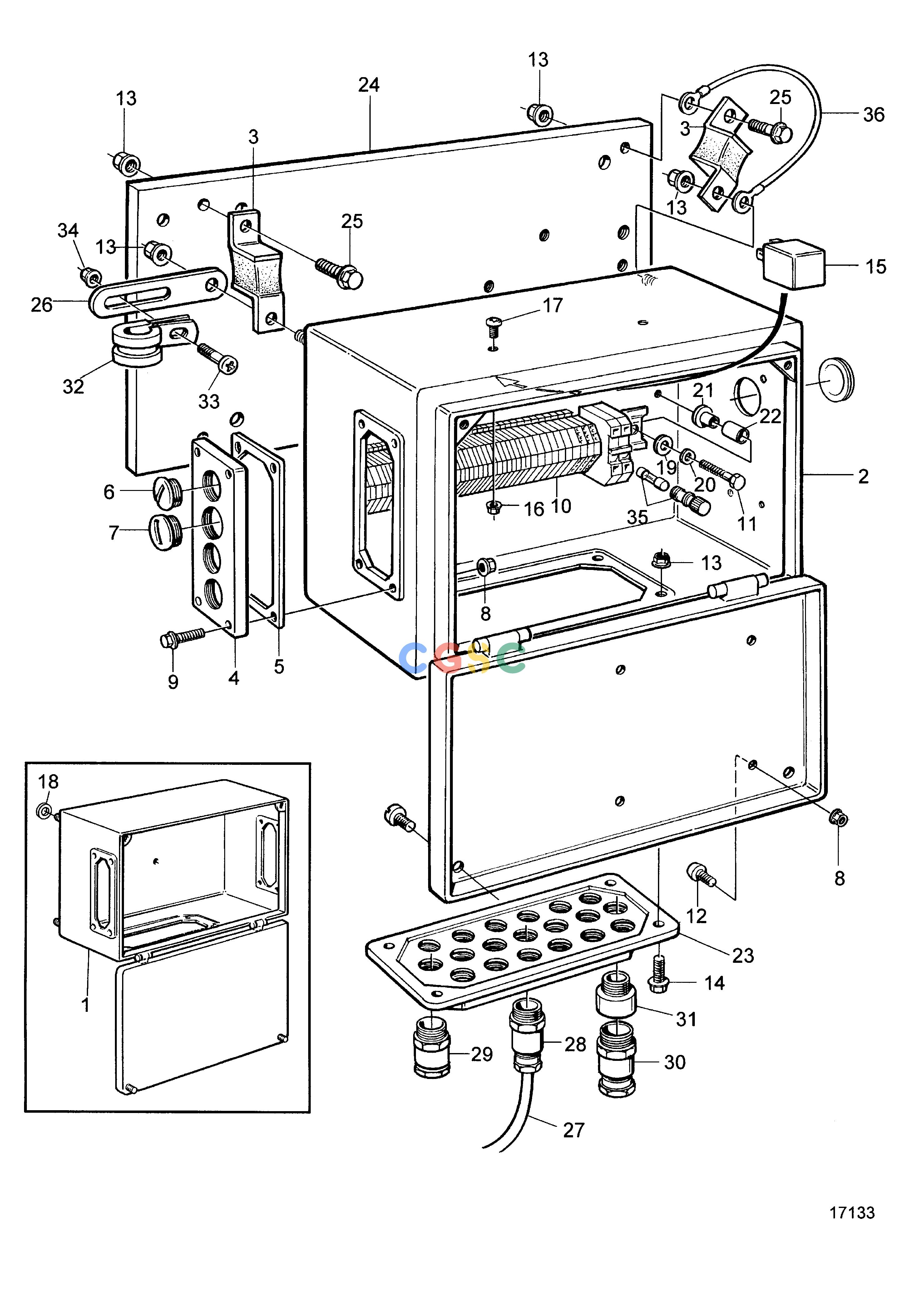

沃尔沃零件查询TAMD71B; TAMD73P-A; TAMD73WJ-AElectrical SystemElectrical Box, Classifiable: 843536EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
844 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
843536
|
[1] |
Box
|
Repl by 873885
|
| 3. |
845513
|
[1] |
Vibration damper
|
|
| 4. |
843094
|
[2] |
Pipe flange
|
|
| 5. |
843578
|
[2] |
Gasket
|
|
| 6. |
843903
|
[6] |
Plug
|
|
| 7. |
843904
|
[2] |
Plug
|
|
| 8. |
963105
|
[12] |
Lock nut
|
M6
|
| 9. |
946544
|
[8] |
Flange screw
|
M6x16mm
|
| 10. |
|
|
|
(873608)
|
| 11. |
956081
|
[2] |
Cross recessed screw
|
M5x25
|
| 12. |
956093
|
[4] |
Cross recessed screw
|
M6x14
|
| 13. |
948645
|
[12] |
Flange lock nut
|
M8
|
| 14. |
946440
|
[4] |
Flange screw
|
M8x16mm
|
| 15. |
9518230
|
[5] |
Relay
|
|
| 16. |
963104
|
[2] |
Lock nut
|
M5
|
| 17. |
956075
|
[2] |
Cross recessed screw
|
M5x10mm
|
| 18. |
976944
|
[4] |
Washer
|
(966674)
|
| 19. |
960138
|
[2] |
Washer
|
|
| 20. |
941905
|
[2] |
Spring washer
|
|
| 21. |
824830
|
[2] |
Spacer sleeve
|
|
| 22. |
403894
|
[2] |
Spacer sleeve
|
|
| 23. |
|
|
|
|
| 24. |
7740910_090
|
|
Bracket
|
|
| 25. |
946173
|
[4] |
Flange screw
|
M8x20mm
|
| 26. |
965534
|
[2] |
Bracket
|
|
| 27. |
862989
|
[1] |
Cable
|
Non reinforced ship cable approved by classification societies., 2x1,5mm²
|
| 28. |
881191
|
[1] |
Grommet
|
7,5-10,5mm, pr 18,6
|
| 29. |
844576
|
[1] |
Grommet
|
9,5-12,0mm, pr 18,6
|
| 30. |
881192
|
[1] |
Grommet
|
12,5-15,0mm, pr 22,5
|
| 31. |
872939
|
[1] |
Adapter, electr box-altern-starter
|
|
| 32. |
952637
|
[2] |
Clamp
|
|
| 33. |
956093
|
[2] |
Cross recessed screw
|
|
| 34. |
949278
|
[2] |
Flange lock nut
|
|
| 35. |
873712
|
[5] |
Fuse
|
|
| 36. |
7740910_202
|
|
cables and terminals
|
|
