斗山零件查询TRACK SHOE ASS'Y-700-ED SOLAR 220LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
307 次

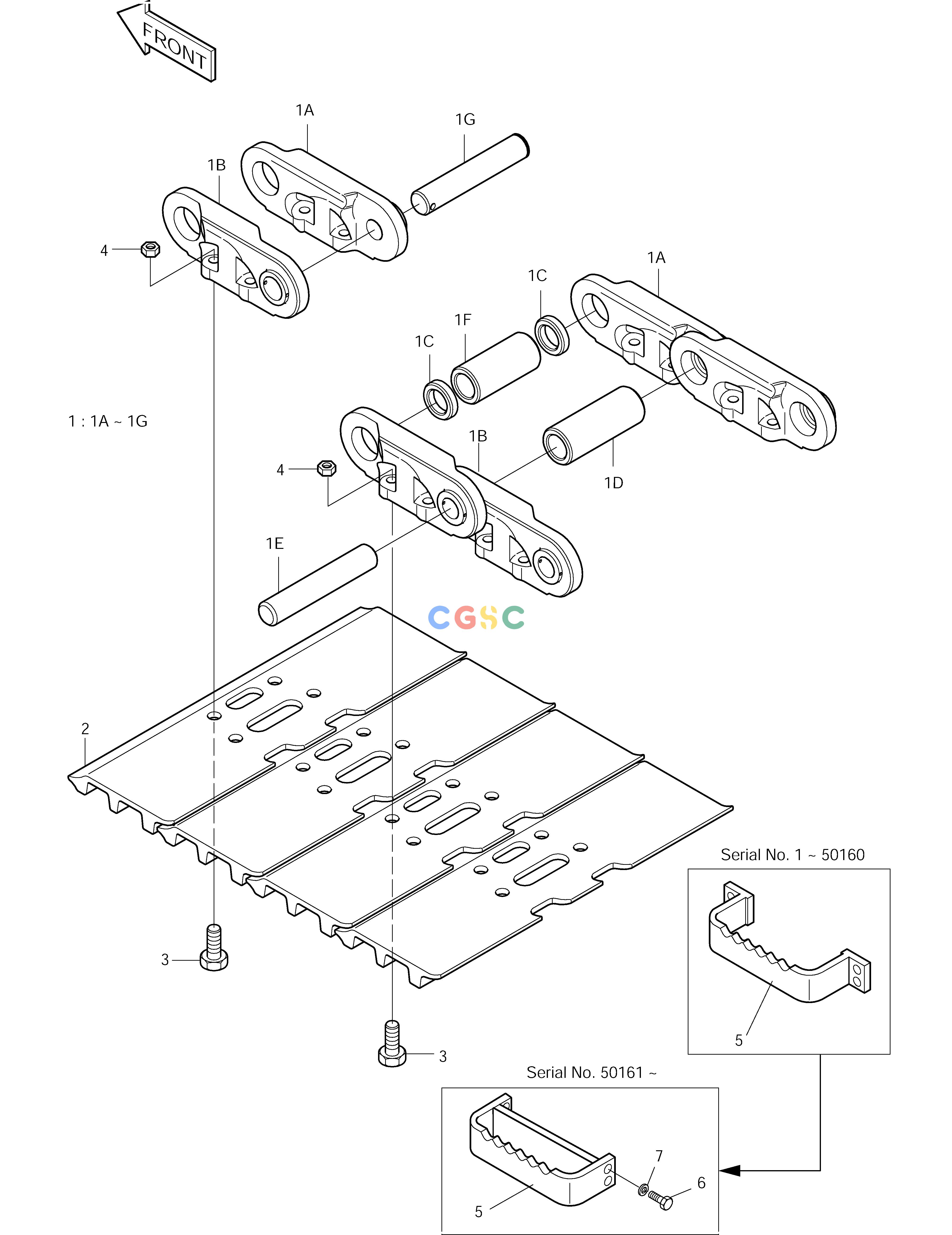

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
9273-6021D3
|
[2] |
TRACK SHOE ASS'Y-700 - ED
|
|
| 1. |
9272-6018
|
[2] |
TRACK LINK ASS'Y
|
|
| 1A. |
9272-6019
|
[49] |
LINK;TRACK(RH)
|
|
| 1B. |
9272-6020
|
[49] |
LINK;TRACK(LH)
|
|
| 1C. |
9114-6007
|
[2] |
SPACER
|
|
| 1D. |
9110-6006
|
[48] |
BUSHING
|
|
| 1E. |
9123-6011
|
[48] |
PIN
|
|
| 1F. |
9110-6007
|
[1] |
BUSHING;MASTER
|
|
| 1G. |
9123-6012
|
[1] |
PIN;MASTER
|
|
| 2. |
9273-6003D5
|
[49] |
SHOE 700G
|
|
| 3. |
9120-6005D11
|
[196] |
BOLT
|
|
| 4. |
9121-6006D2
|
[196] |
NUT
|
|
| 5. |
2195-2527D5
|
[4] |
BRACKET
|
|
| 5. |
2625-1220D1
|
[4] |
BRACKET
|
|
| 6. |
S0558253
|
[16] |
BOLT M10X1.5X35
|
|
| 7. |
S5102603
|
[16] |
. WASHER
|
|
