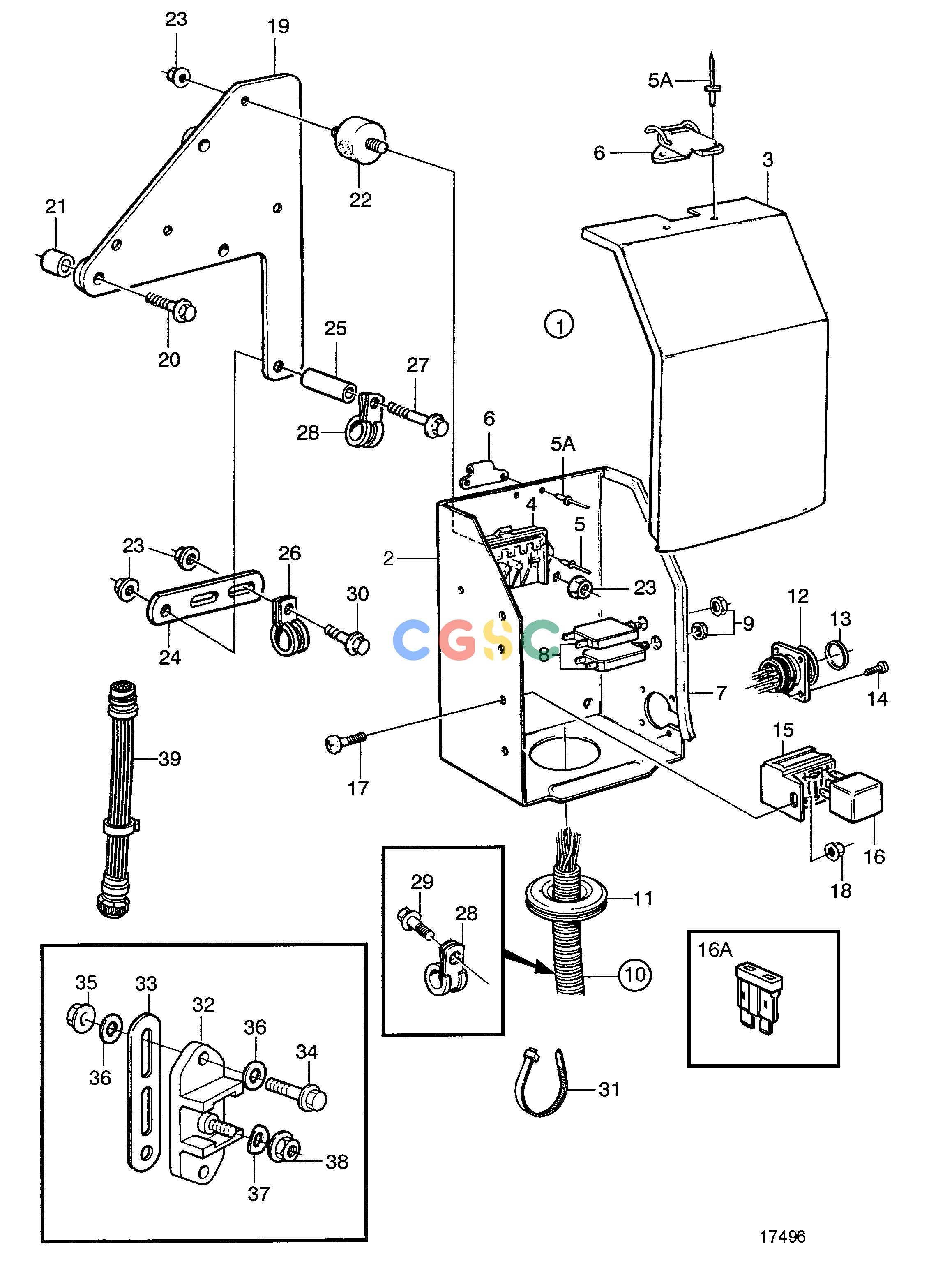

沃尔沃零件查询TAMD71B; TAMD73P-A; TAMD73WJ-AElectrical SystemElectrical System: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
646 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3825254
|
[1] |
Electrical distribut
|
|
| 2. |
|
|
|
|
| 3. |
3825253
|
[1] |
Cap
|
|
| 4. |
1234048
|
[1] |
Bottom section
|
|
| 5. |
942670
|
[2] |
Blind rivet
|
|
| 5A. |
965592
|
[4] |
Blind rivet
|
|
| 6. |
3825257
|
[1] |
Snap lock
|
|
| 7. |
1214306
|
[1] |
Stop dog
|
|
| 8. |
966689
|
[2] |
Fuse
|
|
| 9. |
|
|
|
|
| 10. |
874183
|
[1] |
Cable harness
|
(873935)
|
| 11. |
943920
|
[1] |
Plug
|
|
| 12. |
846611
|
[1] |
Housing, instrument panel
|
|
| 13. |
846615
|
[1] |
Sealing ring
|
|
| 14. |
945761
|
[4] |
Cross recessed screw
|
|
| 15. |
977184
|
[2] |
Housing
|
|
| 16. |
873765
|
[3] |
Relay
|
12V
|
| 16. |
9518230
|
[3] |
Relay
|
24V
|
| 17. |
956075
|
[3] |
Cross recessed screw
|
(967378)
|
| 18. |
965483
|
[3] |
Flange nut
|
|
| 19. |
866694
|
[1] |
Bracket
|
|
| 20. |
946470
|
[3] |
Flange screw
|
|
| 21. |
845589
|
[3] |
Spacer sleeve
|
|
| 22. |
3574797
|
[3] |
Vibration damper
|
|
| 23. |
949278
|
[9] |
Flange lock nut
|
M6
|
| 24. |
965540
|
[1] |
Bracket
|
|
| 25. |
848229
|
[1] |
Spacer sleeve
|
|
| 26. |
949747
|
[2] |
Clamp
|
|
| 27. |
965177
|
[1] |
Flange screw
|
M6
|
| 28. |
947827
|
[2] |
Clamp
|
|
| 28. |
949747
|
[2] |
Clamp
|
|
| 28. |
952635
|
[4] |
Clamp
|
|
| 29. |
946440
|
[1] |
Flange screw
|
M8
|
| 29. |
945414
|
[6] |
Flange screw
|
M6
|
| 30. |
945414
|
[2] |
Flange screw
|
M6
|
| 31. |
948211
|
[7] |
Cable tie
|
|
| 32. |
6776926
|
[2] |
Connector
|
M6 connecting, only 12V engines.
|
| 33. |
965541
|
[2] |
Bracket
|
Only 12V engines.
|
| 34. |
965200
|
[4] |
Flange screw
|
Only 12V engines., M5x16
|
| 35. |
949874
|
[4] |
Flange lock nut
|
Only 12V engines., M5
|
| 36. |
960140
|
[8] |
Washer
|
Only 12V engines.
|
| 37. |
941906
|
[2] |
Spring washer
|
Only 12V engines.
|
| 38. |
945407
|
[2] |
Flange nut
|
Only 12V engines., M6
|
| 39. |
873689
|
[1] |
Cable kit
|
This cable kit is needed for the connection of EDC-system to an instrument panel or instrument panel
|
