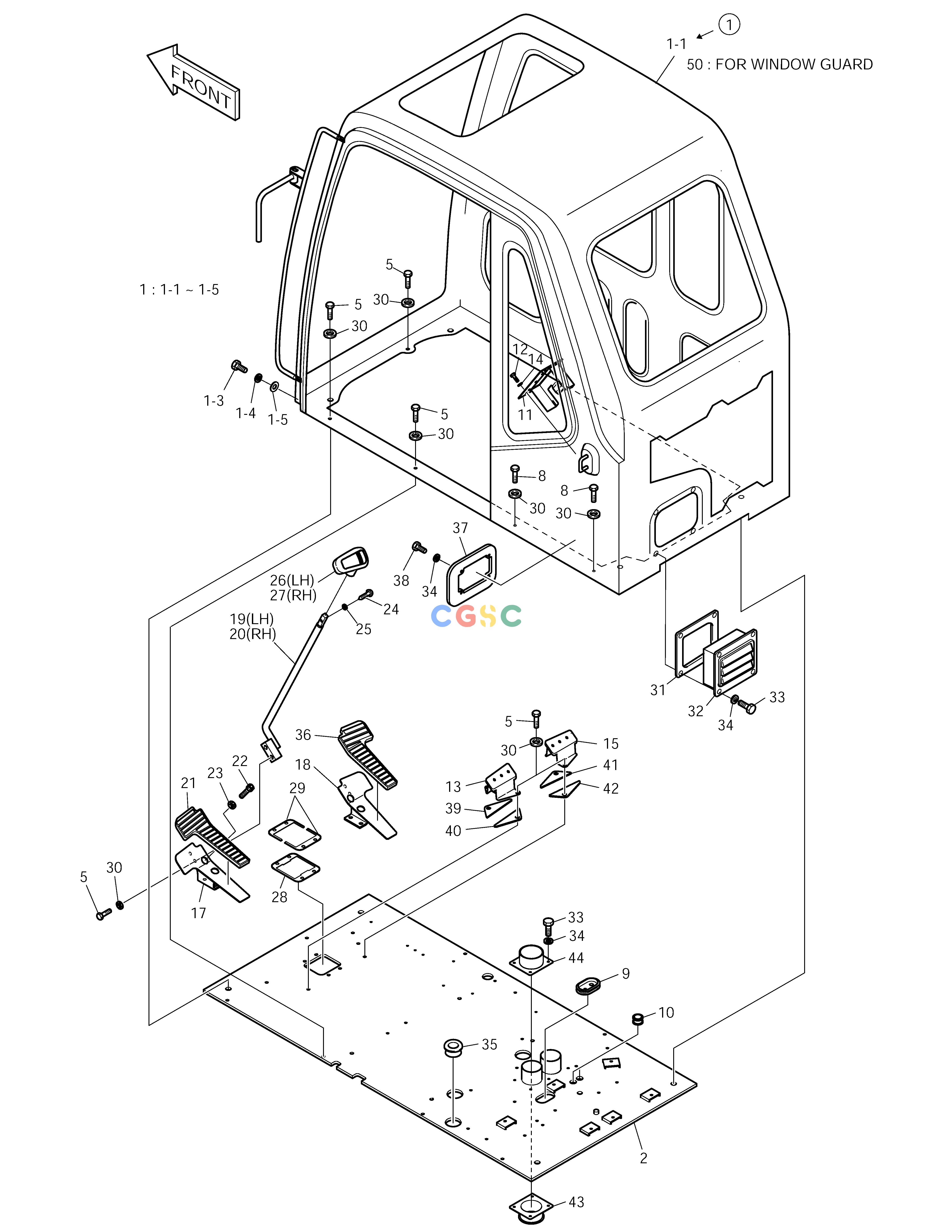

斗山零件查询CABIN ASS'Y SOLAR 255LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
517 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
622-00197M
|
[-] |
CABIN ASS'Y
|
|
| -. |
622-00197N
|
[-] |
CABIN ASS'Y
|
|
| -. |
622-00197P
|
[-] |
CABIN ASS'Y
|
|
| -. |
622-00197R
|
[-] |
CABIN ASS'Y
|
|
| 1. |
622-00297B
|
[1] |
CABIN ASS'Y
|
622-00297C
|
| 1. |
622-00297C
|
[1] |
CABIN ASS'Y
|
622-00297E
|
| 1. |
622-00297E
|
[1] |
CABIN ASS'Y
|
|
| 1. |
622-00297H
|
[1] |
CABIN ASS'Y
|
|
| 1-1. |
622-00177L
|
[1] |
CABIN ASS'Y
|
|
| 1-1. |
622-00177M
|
[1] |
CABIN ASS'Y
|
|
| 1-1. |
622-00177N
|
[1] |
CABIN ASS'Y
|
|
| 1-1. |
622-00177Q
|
[1] |
CABIN ASS'Y
|
|
| 1-3. |
2120-2166D4
|
[4] |
BOLT
|
|
| 1-4. |
2114-2031D5
|
[4] |
WASHER
|
|
| 1-5. |
2114-1898D1
|
[4] |
WASHER
|
|
| 10. |
2160-1004D48
|
[2] |
BUSHING;RUBBER
|
|
| 11. |
195-01784C
|
[1] |
BRACKET;AUDIO CASSETTE
|
|
| 12. |
S0508853
|
[3] |
. BOLT
|
|
| 13. |
2197-1704A
|
[1] |
BRACKET;FOOT REST(L.H)
|
|
| 14. |
S5010513
|
[3] |
WASHER
|
|
| 15. |
2197-1744A
|
[1] |
BRACKET;FOOT REST(R.H)
|
|
| 17. |
195-01684A
|
[1] |
BRACKET;PEDAL(L.H)
|
|
| 18. |
195-01683A
|
[1] |
BRACKET,PEDAL(R.H)
|
|
| 19. |
133-00155A
|
[1] |
LEVER(L.H)
|
|
| 2. |
621-01920B
|
[1] |
PLATE;FLOOR
|
|
| 20. |
133-00156A
|
[1] |
LEVER(R.H)
|
|
| 21. |
161-00382
|
[1] |
RUBBER;PEDAL(L.H)
|
|
| 22. |
S2211866
|
[4] |
BOLT
|
|
| 23. |
S5110601
|
[4] |
WASHER;SPRING M10
|
|
| 24. |
S2201766
|
[2] |
BOLT
|
|
| 25. |
S5000113
|
[2] |
WASHER
|
|
| 26. |
2132-1133B
|
[1] |
GRIP,LEVER(L.H)
|
|
| 27. |
2132-1134B
|
[1] |
GRIP,LEVER(R.H)
|
|
| 28. |
161-00077
|
[1] |
PLATE;RUBBER
|
|
| 29. |
621-00564
|
[2] |
SHIM
|
|
| 30. |
2114-1898D1
|
[15] |
WASHER
|
|
| 31. |
2161-2317
|
[1] |
RUBBER;PLATE
|
|
| 32. |
621-01159
|
[1] |
PLATE;COVER
|
|
| 33. |
2120-2166D6
|
[12] |
BOLT
|
|
| 34. |
2114-1898D3
|
[16] |
WASHER
|
|
| 35. |
160-00035
|
[1] |
BUSHING;RUBBER
|
|
| 36. |
161-00381
|
[1] |
RUBBER,PEDAL(R.H)
|
|
| 37. |
621-01160
|
[1] |
COVER;FRESH AIR DUCT
|
|
| 38. |
2120-2166D19
|
[4] |
. BOLT M6X1.0X12
|
|
| 39. |
161-00329
|
[1] |
RUBBER;DAMPER(L.H)
|
|
| 40. |
161-00330
|
[1] |
RUBBER;DAMPER(L.H)
|
|
| 41. |
161-00331
|
[1] |
RUBBER;DAMPER(R.H)
|
|
| 42. |
161-00335
|
[1] |
RUBBER;DAMPER(R.H)
|
|
| 43. |
160-00030
|
[2] |
BOOT
|
|
| 44. |
195-01765B
|
[2] |
BRACKET
|
|
| 5. |
2120-2166D2
|
[11] |
BOLT
|
|
| 50. |
622-00309C
|
[1] |
CABIN ASS'Y-OPT.
|
622-00309E
|
| 50. |
622-00309E
|
[1] |
CABIN ASS'Y-OPT.
|
622-00309G
|
| 50. |
622-00309G
|
[1] |
CABIN ASS'Y-OPT.
|
|
| 8. |
2120-2166D3
|
[4] |
BOLT M10X1.5X65
|
|
| 9. |
2160-1308
|
[1] |
BUSHING;RUBBER
|
|
