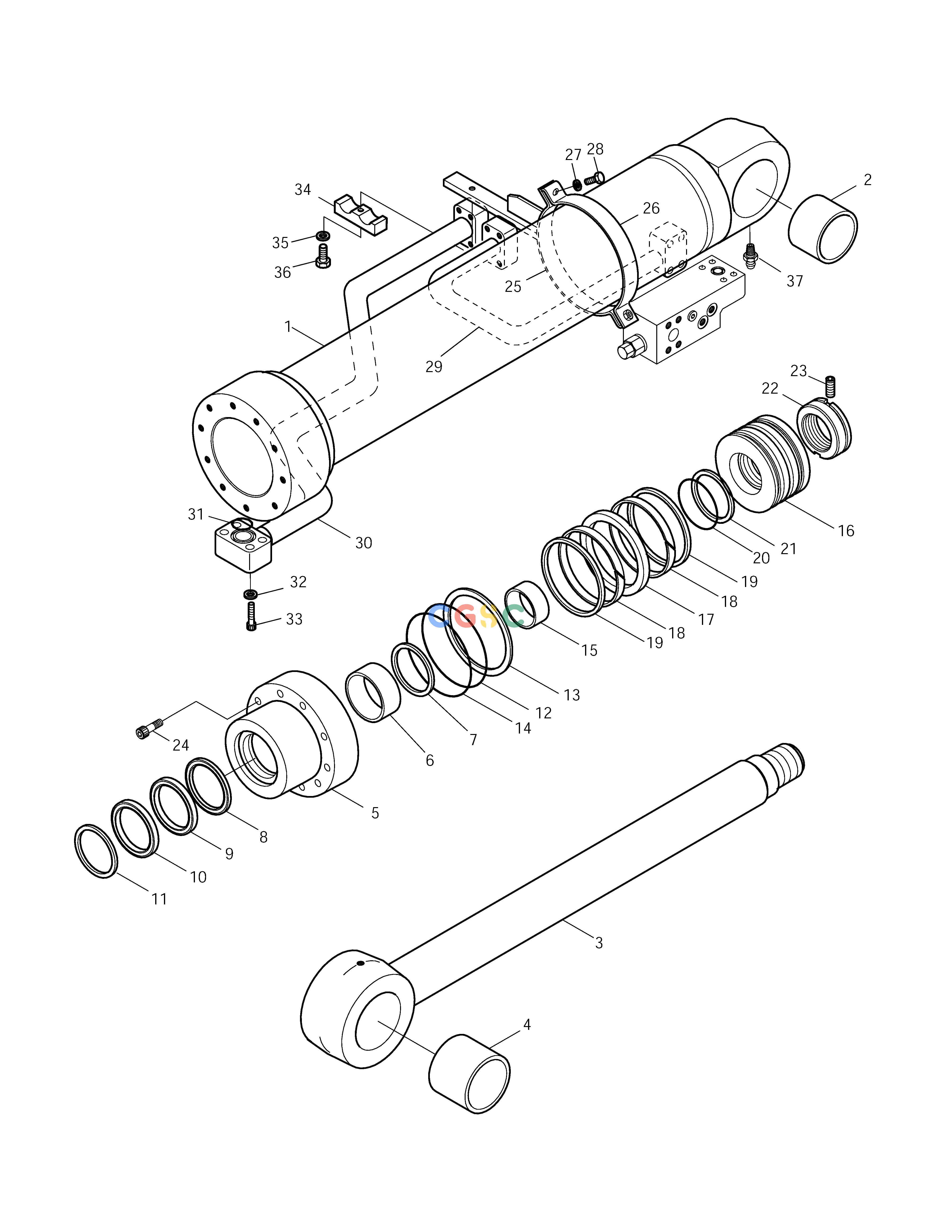

斗山零件查询BOOM CYLINDER(L.H)-LOCK VALVE SOLAR 255LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
184 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
440-00042BKT
|
[1] |
SEAL KIT
|
|
| -. |
440-00186C
|
[1] |
CYLINDER;BOOM(L.H)
|
|
| 1. |
53B576-1
|
[1] |
TUBE ASS'Y
|
|
| 10. |
E6020300
|
[1] |
WIPER;DUST
|
|
| 11. |
00M315-0
|
[1] |
RING;RETAINING
|
|
| 12. |
E6311661
|
[1] |
O-RING
|
|
| 13. |
53D317-0
|
[1] |
RING;BACK UP
|
|
| 14. |
E6311701
|
[1] |
O-RING
|
|
| 15. |
00C319-0
|
[1] |
RING;CUSHION
|
|
| 16. |
53B579-0
|
[1] |
PISTON
|
|
| 17. |
E5130300
|
[1] |
SEAL;SLIPPER
|
|
| 18. |
00Z107-0
|
[2] |
RING;WEAR
|
|
| 19. |
00R100-0
|
[2] |
RING;SLYD
|
|
| 2. |
00B168-0
|
[1] |
BUSH
|
|
| 20. |
E6311341
|
[1] |
O-RING
|
|
| 21. |
53U252-0
|
[2] |
RING;BACK UP
|
|
| 22. |
53U374-1
|
[1] |
NUT;PISTON
|
|
| 23. |
E1330544
|
[1] |
SCREW;SET
|
|
| 24. |
E0502139
|
[10] |
BOLT;SOCKET
|
|
| 25. |
53B583-0
|
[1] |
PIPE BAND ASS'Y
|
|
| 26. |
03B753-0
|
[1] |
BAND;PIPE
|
|
| 27. |
E3110102
|
[2] |
WASHER;SPRING
|
|
| 28. |
E0020673
|
[2] |
BOLT;HEX
|
|
| 29. |
53B639-1
|
[1] |
PIPE ASS'Y-H
|
|
| 3. |
53B577-1
|
[1] |
ROD ASS'Y
|
|
| 30. |
53B582-0
|
[1] |
PIPE ASS'Y-R
|
|
| 31. |
E6300621
|
[1] |
O-RING
|
|
| 32. |
E3110102
|
[4] |
WASHER;SPRING
|
|
| 33. |
E0501246
|
[4] |
BOLT;SOCKET
|
|
| 34. |
00C257-0
|
[1] |
CLAMP;PIPE
|
|
| 35. |
E3110112
|
[1] |
WASHER;SPRING
|
|
| 36. |
E0021023
|
[1] |
BOLT;HEX
|
|
| 37. |
E8841022
|
[1] |
NIPPLE;GREASE
|
|
| 4. |
00B123-0
|
[1] |
BUSH
|
|
| 5. |
53B578-1
|
[1] |
COVER;ROD
|
|
| 6. |
E8412281
|
[1] |
BUSH;DD
|
|
| 7. |
00M313-0
|
[1] |
RING;RETAINING
|
|
| 8. |
E5500300
|
[1] |
SEAL;BUFFER
|
|
| 9. |
E5303200
|
[1] |
U-PACKING
|
|
