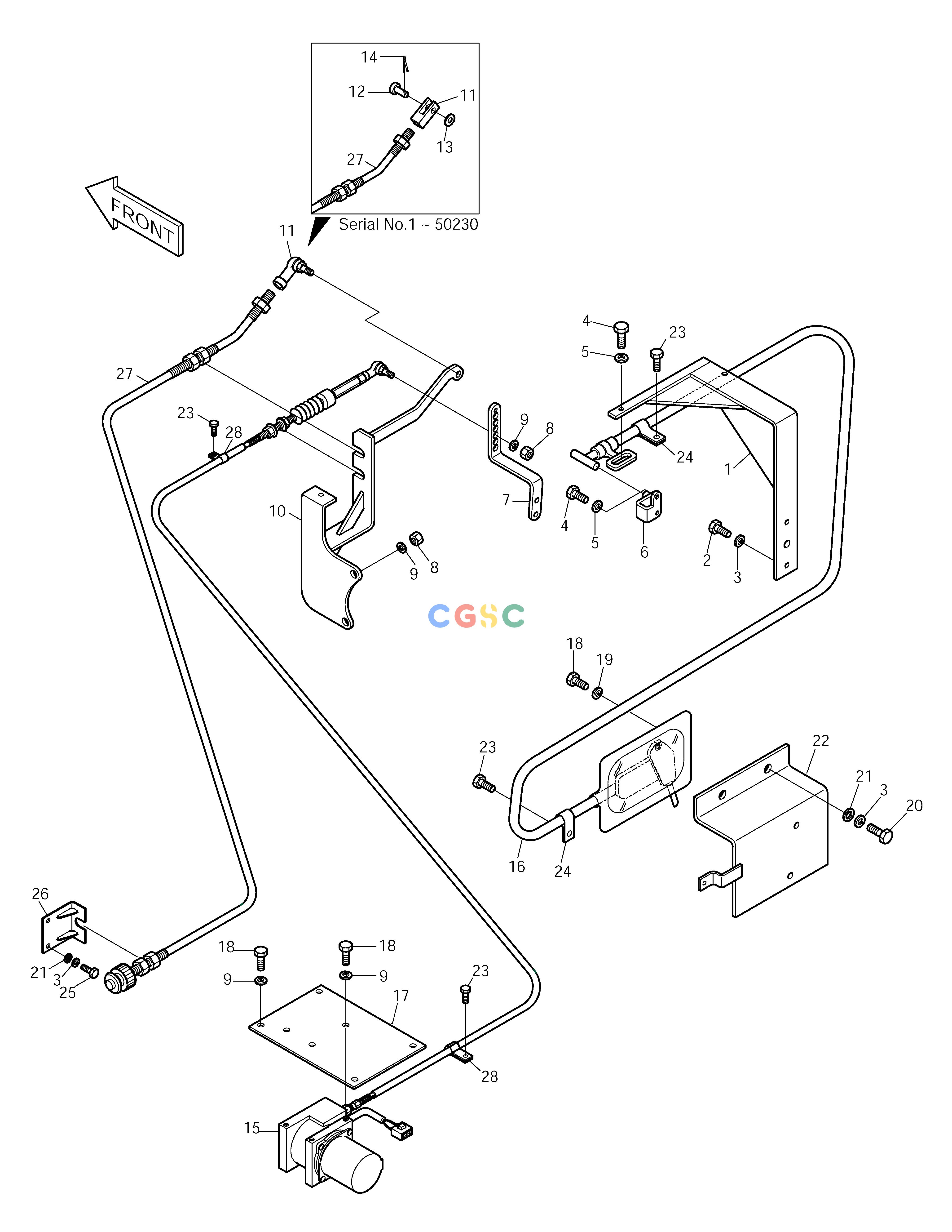

斗山零件查询ENGINE CONTROL ASS'Y SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
419 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2133-2033
|
[-] |
ENGINE CONTROL ASS'Y
|
|
| 1. |
2197-1836
|
[1] |
BRACKET
|
2197-1836A
|
| 1. |
2197-1836A
|
[1] |
BRACKET
|
|
| 10. |
2197-1837A
|
[1] |
BRACKET
|
2197-1837B
|
| 10. |
2197-1837B
|
[1] |
BRACKET
|
|
| 11. |
2135-1008D25
|
[1] |
END;FORK
|
|
| 11. |
2138-9006B
|
[1] |
JOINT,BALL
|
|
| 12. |
2123-1888
|
[1] |
PIN
|
|
| 13. |
S5010313
|
[1] |
WASHER
|
|
| 14. |
S5735121
|
[1] |
PIN;SPLIT
|
|
| 15. |
2523-9014
|
[1] |
MOTOR;ENGINE CONTROL
|
|
| 16. |
2523-9016
|
[1] |
MOTOR,E/G STOP
|
|
| 17. |
2197-1533
|
[1] |
PLATE
|
|
| 18. |
S0508853
|
[9] |
. BOLT
|
|
| 19. |
S5010513
|
[2] |
WASHER
|
|
| 2. |
S0512053
|
[2] |
BOLT
|
|
| 20. |
S0511853
|
[2] |
BOLT
|
|
| 21. |
S5010613
|
[4] |
WASHER
|
|
| 22. |
2197-1802
|
[1] |
BRACKET
|
|
| 22. |
2197-1802A
|
[1] |
BRACKET
|
|
| 23. |
S0508453
|
[3] |
BOLT
|
|
| 24. |
2124-1509D10
|
[2] |
CLIP
|
|
| 25. |
S0512253
|
[2] |
BOLT M10X1.5X30
|
|
| 26. |
2197-1791
|
[1] |
BRACKET
|
2197-1791A
|
| 26. |
2197-1791A
|
[1] |
BRACKET
|
2197-1791B
|
| 26. |
2197-1791B
|
[1] |
BRACKET
|
|
| 27. |
2139-6055D10
|
[1] |
CABLE;CONTROL
|
2139-6055D12
|
| 27. |
2139-6055D12
|
[1] |
CABLE;CONTROL
|
|
| 28. |
2124-1509D1
|
[1] |
CLIP
|
|
| 29. |
S4012233
|
[1] |
NUT
|
|
| 3. |
S5102603
|
[6] |
. WASHER
|
|
| 30. |
S5102203
|
[1] |
WASHER
|
|
| 4. |
S0504553
|
[3] |
BOLT
|
|
| 5. |
S5102303
|
[3] |
. WASHER
|
|
| 6. |
2150-1135
|
[1] |
HOOK;CABLE
|
2150-1135A
|
| 6. |
2150-1135A
|
[1] |
HOOK;CABLE
|
|
| 7. |
2133-2032A
|
[1] |
LEVER
|
|
| 8. |
S4012533
|
[3] |
NUT
|
|
| 9. |
S5102503
|
[10] |
. WASHER
|
|
