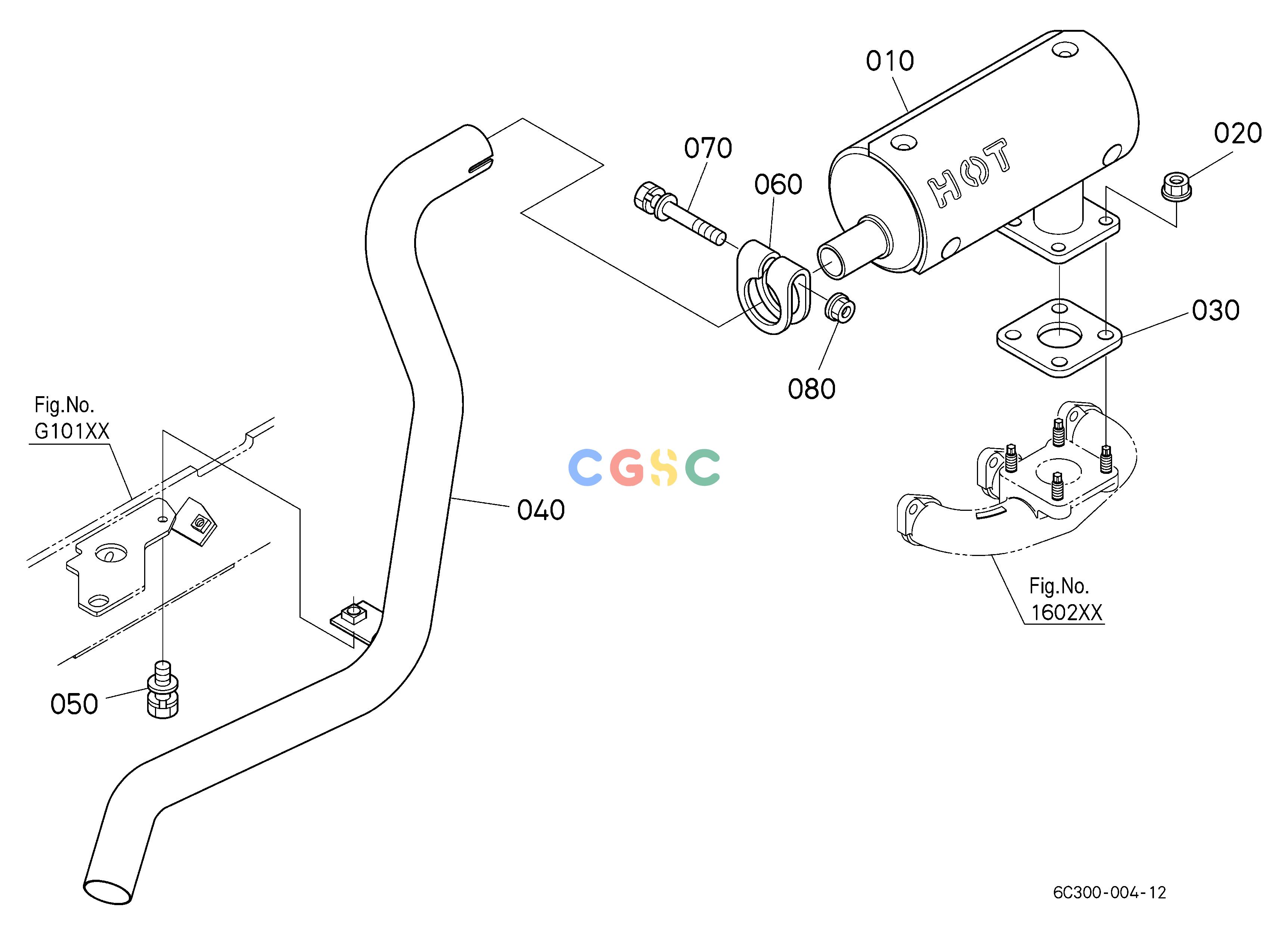

久保田零件查询160500 MUFFLER ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
995 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6A32058406
|
[1] |
COMP.MUFFLER
|
4.3340(lbs); 1.970
|
| 020. |
0212150080
|
[4] |
NUT
|
0.0220(lbs); 0.010
|
| 030. |
1526312370
|
[1] |
PACKING,MUFFLER
|
0.0330(lbs); 0.015
|
| 040. |
6C34058423
|
[1] |
PIPE,EXHAUST
|
1.5400(lbs); 0.700
|
| 040. |
6C34058424
|
[1] |
PIPE,EXHAUST
|
1.5400(lbs); 0.700
|
| 050. |
0112550820
|
[1] |
BOLT,W SEMS
|
0.0308(lbs); 0.014
|
| 060. |
1522112433
|
[1] |
CLAMP,MUFFLER PIPE
|
0.1100(lbs); 0.050
|
| 070. |
0112550855
|
[1] |
BOLT,W SEMS
|
0.0550(lbs); 0.025
|
| 080. |
0212150080
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
