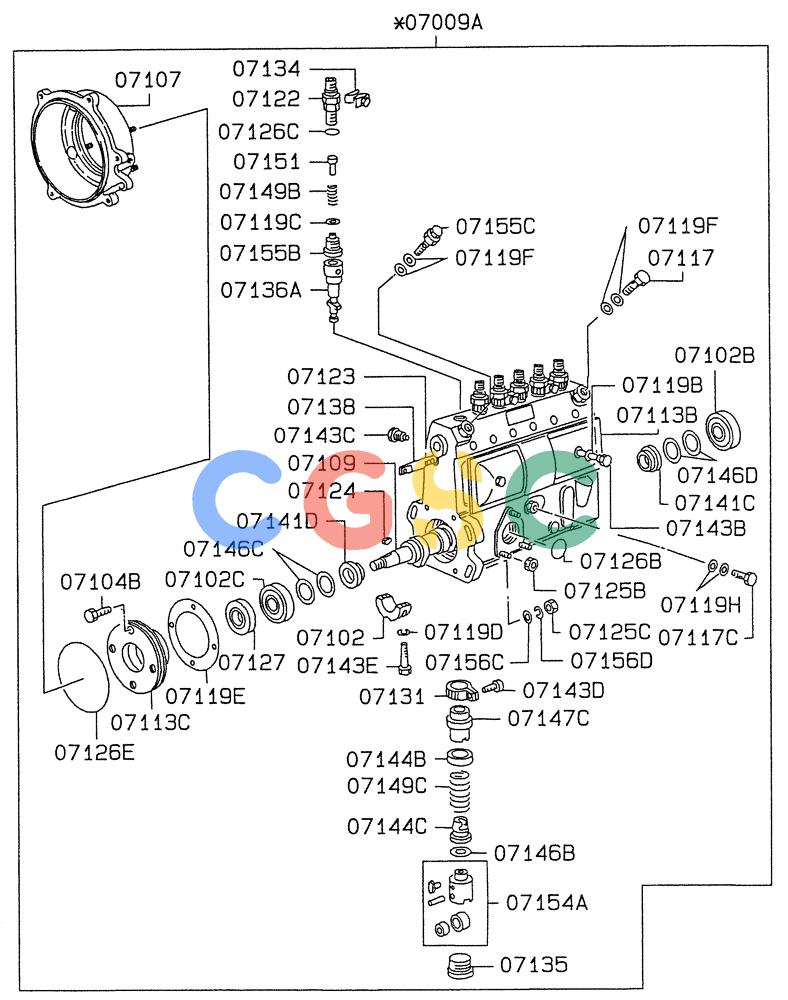

纽荷兰零件查询(E235SR) - CRAWLER EXCAVATOR BTW YF04-01513 - YF04-01758 (08-021) - INJECTION PUMP New Holland Constructuion_纽荷兰New Holland_工程机械

Pos.	Part No	Qty	Parts name	Comments
07009A.	NSS	[1]	NOT SERVICED SEPARATELY	CONBODY ASSY, INJECTION PUMP, NS (ME755367), (0210-1)
7102.	VAME704350	[1]	BEARING	KOBBEARING, INJECTION PUMP BODY, (0210-1)
07102B.	VAME705186	[1]	BEARING	KOBBEARING, INJECTION PUMP BODY, (0210-1)
07102B.	VAME705187	[1]	BEARING	KOBBEARING, INJECTION PUMP BODY, (0210-1)
07102C.	VAME705184	[1]	BEARING	KOBBEARING INJECTION PUMP BODY, (0210-1)
07102C.	VAME705185	[1]	BEARING	KOBBEARING INJECTION PUMP BODY, (0210-1)
07104B.	VAME705211	[4]	BOLT	KOBBOLT, INJECTION PUMP BODY, (0210-1)
07107.	VAME731077	[1]	BRACKET	KOBBRACKET, INJECTION PUMP BODY, (0210-1)
07109.	VAME722365	[1]	CAMSHAFT	KOBCAMSHAFT, INJECTION PUMP BODY, (0210-1)
07113B.	VAME704318	[1]	COVER	KOBCOVER, INJECTION PUMP BODY, (0210-1)
07113C.	VAME704115	[1]	COVER	KOBCOVER, INJECTION PUMP BODY, (0210-1)
07117.	VAME717882	[1]	BOLT	KOBEYEBOLT, INJECTION PUMP BODY, (0210-1) Superseded by part number: VA1398140900
07117C.	VAME705223	[1]	BOLT	KOBEYEBOLT, INJECTION PUMP BODY, (0210-1)
07119B.	VAME705151	[2]	GASKET	KOBGASKET, INJECTION PUMP BODY, (0210-1)
07119C.	VAME704237	[6]	GASKET	KOBGASKET, INJECTION PUMP BODY, (0210-1)
07119D.	VAME705209	[2]	GASKET	KOBGASKET, INJECTION PUMP BODY, (0210-1)
07119E.	VAME726902	[1]	GASKET	KOBGASKET, INJECTION PUMP BODY, (0210-1)
07119H.	VA0375124001	[2]	GASKET	KOBGASKET, INJECTION PUMP BODY, (0210-1) Superseded by part number: VA0265101340
07122.	VAME704287	[6]	HOLDER	KOBHOLDER, INJECTION PUMP BODY, (0210-1)
07123.	VAME742522	[1]	HOUSING	KOBHOUSING, INJECTION PUMP BODY, (0210-1)
07124.	VAMD620909	[1]	KEY	KOBKEY, INJECTION PUMP BODY, (0210-1) Superseded by part number: VA0294704030
07125B.	VAME704489	[3]	NUT	KOBNUT, INJECTION PUMP BODY, (0210-1) Superseded by part number: VA1392060400
07125C.	VAME705222	[4]	NUT	KOBNUT, INJECTION PUMP BODY, (0210-1) ,10X8 Superseded by part number: VA0130210040
07126B.	VAME705152	[1]	O-RING	KOBC-RING, INJECTION PUMP BODY, (0210-1)
07126C.	VAME705358	[6]	O-RING	KOBO-RING, INJECTION PUMP BODY, (0210-1)
07126E.	VAME705219	[1]	O-RING	KOBO-RING, INJECTION PUMP BODY, (0210-1) Superseded by part number: VA0296375020
07127.	VAME705210	[1]	OIL SEAL	KOBOIL SEAL, INJECTION PUMP BODY, (0210-1) Superseded by part number: VA0296220190
07131.	VAME704023	[6]	PINION	KOBPINION, INJECTION PUMP BODY, (0210-1)
07134.	VAME704013	[3]	LOCKING PLATE	KOBPLATE, INJECTION PUMP BODY, (0210-1)
07135.	VAME704223	[6]	PLUG	KOBPLUG, INJECTION PUMP BODY, (0210-1)
07136A.	VAME755001	[6]	PLUNGER	KOBPLUNGER ASSY, INJECTION PUMP BODY, (0210-1)
07138.	VAME704021	[1]	RACK	KOBRACK, INJECTION PUMP BODY, (0210-1)
07141C.	VAME704137	[1]	RING	KOBRING, INJECTION PUMP BODY, (0210-1)
07141D.	VAME704028	[1]	RING	KOBRING, INJECTION PUMP BODY, (0210-1)
07143B.	VAME704005	[2]	SCREW	KOBSCREW, INJECTION PUMP BODY, (0210-1)
07143C.	VAME704022	[1]	SCREW	KOBSCREW, INJECTION PUMP BODY, (0210-1) Superseded by part number: VA1312260300
07143D.	VAME704025	[6]	SCREW	KOBSCREW, INJECTION PUMP BODY, (0210-1)
07143E.	VAME705208	[2]	SCREW	KOBSCREW, INJECTION PUMP BODY, (0210-1)
07144B.	VAME704110	[6]	SEAT	KOBSEAT, INJECTION PUMP BODY, (0210-1)
07144C.	VAME704295	[6]	SEAT	KOBSEAT, INJECTION PUMP BODY, (0210-1)
07146B.	VAME705177	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1) , T=0.20
07146B.	VAME705178	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=0.25
07146B.	VAME705155	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=0.30
07146B.	VAME705179	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=0.35
07146B.	VAME705156	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=0.40
07146B.	VAME705180	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=0.45
07146B.	VAME705157	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=0.50
07146B.	VAME705167	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=0.55
07146B.	VAME705158	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=0.60
07146B.	VAME705168	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=0.65
07146B.	VAME705159	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=0.70
07146B.	VAME705169	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=0.75
07146B.	VAME705160	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=0.80
07146B.	VAME705170	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=0.85
07146B.	VAME705161	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=0.90
07146B.	VAME705171	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=0.95
07146B.	VAME705162	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=1.00
07146B.	VAME705172	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=1.05
07146B.	VAME705163	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=1.10
07146B.	VAME705173	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=1.15
07146B.	VAME705164	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=1.20
07146B.	VAME705174	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=1.25
07146B.	VAME705165	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=1.30
07146B.	VAME705181	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=1.35
07146B.	VAME705166	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=1.40
07146B.	VAME705182	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=1.45
07146B.	VAME705175	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=1.50
07146B.	VAME705183	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=1.55
07146B.	VAME705176	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=1.60
07146C.	VAME705200	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=010
07146C.	VAME705201	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=0.12
07146C.	VAME705202	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=0.14
07146C.	VAME705203	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=0.16
07146C.	VAME705204	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=0.18
07146C.	VAME705206	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=0.30
07146C.	VAME705205	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=0.50
07146C.	VAME731774	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=0.70
07146C.	VAME705207	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=1.00
07146D.	VAME705189	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=1.10
07146D.	VAME705190	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=0.12
07146D.	VAME705191	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=0.14
07146D.	VAME705192	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=0.16
07146D.	VAME705193	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=0.18
07146D.	VAME705196	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=0.30
07146D.	VAME705194	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=0.50
07146D.	VAME705197	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=0.70
07146D.	VAME705195	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=1.00
07146D.	VAME705198	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=1.40
07146D.	VAME726779	[1]	SHIM	KOBSHIM, INJECTION PUMP BODY, (0210-1), T=2.40
07147C.	VAME704112	[6]	SLEEVE	KOBSLEEVE, INJECnON PUMP BODY, (0210-1)
07149B.	VAME704105	[6]	SPRING	KOBSPRING, INJECTION PUMP BODY, (0210-1)
07149C.	VAME704294	[6]	SPRING	KOBSPRING, INJECTION PUMP BODY, (0210-1)
07151.	VAME704288	[6]	STOP	KOBSTOPPER, INJECTION PUMP BODY, (0210-1)
07154A.	VAME704289	[6]	RING	KOBTAPPET ASSY, INJECTION PUMP BODY, (0210-1)
07155B.	VAME704286	[6]	VALVE	KOBVALVE, INJECTION PUMP BODY, (0210-1)
07155C.	VAME704306	[1]	VALVE	KOBVALVE, INJECTION PUMP BODY, (0210-1) Superseded by part number: VA1314245520
07156C.	VAME705332	[4]	WASHER	KOBWASHER, INJECTION PUMP BODY, (0210-1) Superseded by part number: VA0140110140
07156D.	VAME705645	[4]	WASHER	KOBWASHER, INJECTION PUMP BODY, (0210-1) Superseded by part number: VA0141110440
