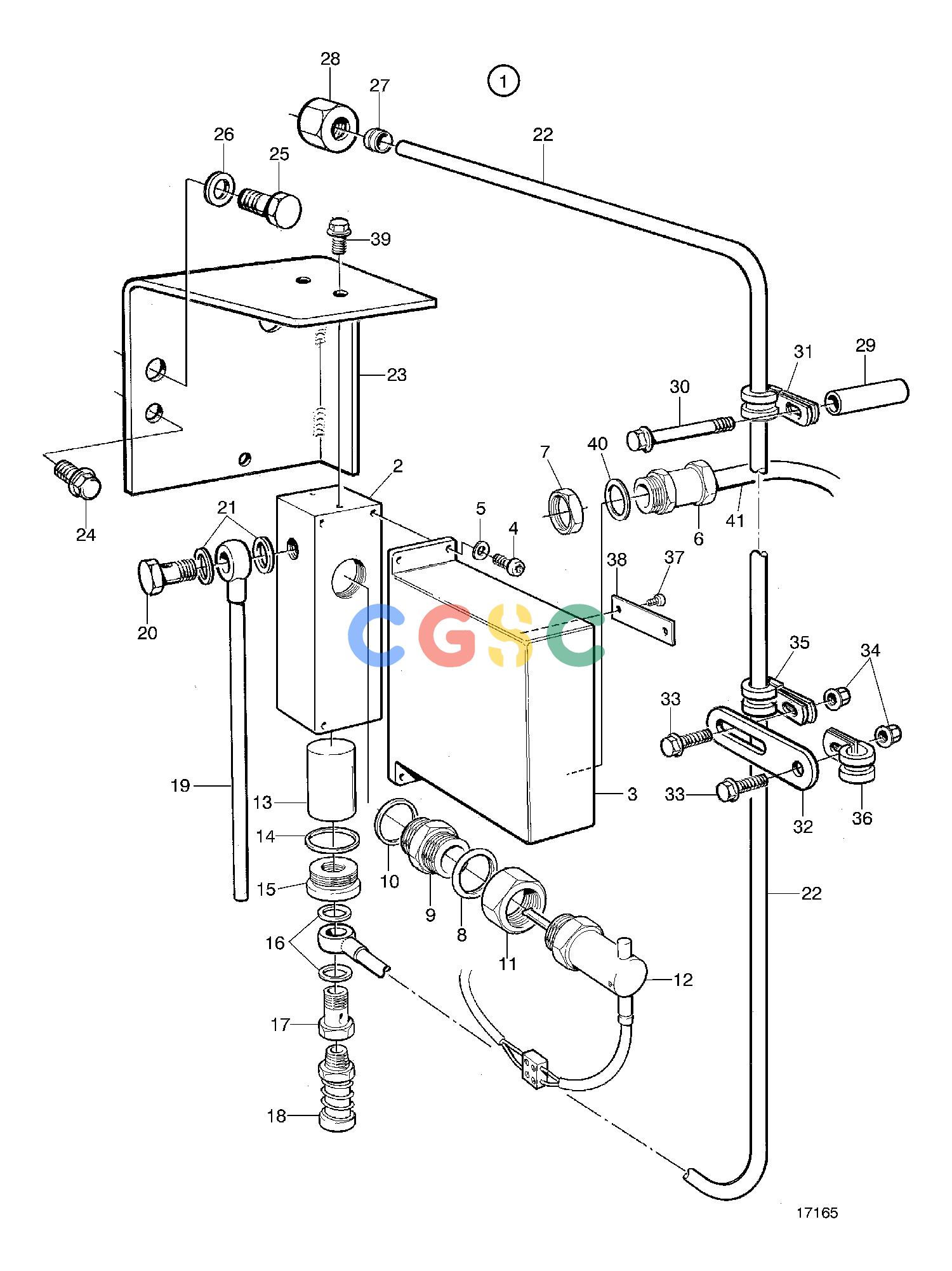

沃尔沃零件查询TAMD71B; TAMD73P-A; TAMD73WJ-AElectrical SystemLeakage Switch for Fuel. ClassifiableEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
837 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
849812
|
[1] |
Flow monitor
|
|
| 2. |
849345
|
[1] |
Housing
|
|
| 3. |
|
|
|
|
| 4. |
956060
|
[4] |
Cross recessed screw
|
|
| 5. |
941904
|
[4] |
Spring washer
|
|
| 6. |
881191
|
[1] |
Grommet
|
|
| 7. |
880244
|
[1] |
Nut
|
|
| 8. |
15304
|
[1] |
Gasket
|
|
| 9. |
843688
|
[1] |
Nipple
|
|
| 10. |
957181
|
[1] |
Gasket
|
|
| 11. |
843640
|
[1] |
Lock nut
|
|
| 12. |
843757
|
[1] |
Flow monitor
|
|
| 13. |
843815
|
[1] |
Float
|
|
| 14. |
957191
|
[1] |
Gasket
|
|
| 15. |
843639
|
[1] |
Plug
|
|
| 16. |
957178
|
[2] |
Gasket
|
|
| 17. |
823417
|
[1] |
Hollow screw
|
|
| 18. |
844770
|
[1] |
Valve
|
|
| 19. |
3826835
|
[1] |
Fuel pipe
|
|
| 20. |
25167
|
[1] |
Hollow screw
|
|
| 21. |
969011
|
[2] |
Gasket
|
|
| 22. |
3835890
|
[1] |
Pipe
|
|
| 23. |
3826004
|
[1] |
Bracket
|
|
| 24. |
947107
|
[1] |
Flange screw
|
M8x12mm
|
| 25. |
946670
|
[1] |
Flange screw
|
M10x14mm
|
| 26. |
976945
|
[1] |
Washer
|
|
| 27. |
956969
|
[1] |
Ferrule
|
|
| 28. |
956983
|
[1] |
Fitting nut
|
|
| 29. |
847238
|
[1] |
Spacer sleeve
|
|
| 30. |
965217
|
[1] |
Flange screw
|
M8x65mm
|
| 31. |
949746
|
[1] |
Clamp
|
|
| 32. |
965535
|
[1] |
Bracket
|
|
| 33. |
946544
|
[2] |
Flange screw
|
M6x16mm
|
| 34. |
949278
|
[2] |
Flange lock nut
|
M6
|
| 35. |
952625
|
[1] |
Clamp
|
|
| 36. |
952637
|
[1] |
Clamp
|
|
| 37. |
955113
|
[2] |
Cross recessed screw
|
|
| 38. |
|
|
|
|
| 39. |
967949
|
[2] |
Flange screw
|
M6x12 (965175)
|
| 40. |
11998
|
[1] |
Gasket
|
|
| 41. |
874854
|
[1] |
Power cable
|
Non reinforced ship cable approved by classification societies., 2x1,5mm²
|
| 41. |
7740910_202
|
|
electrical materials
|
|
