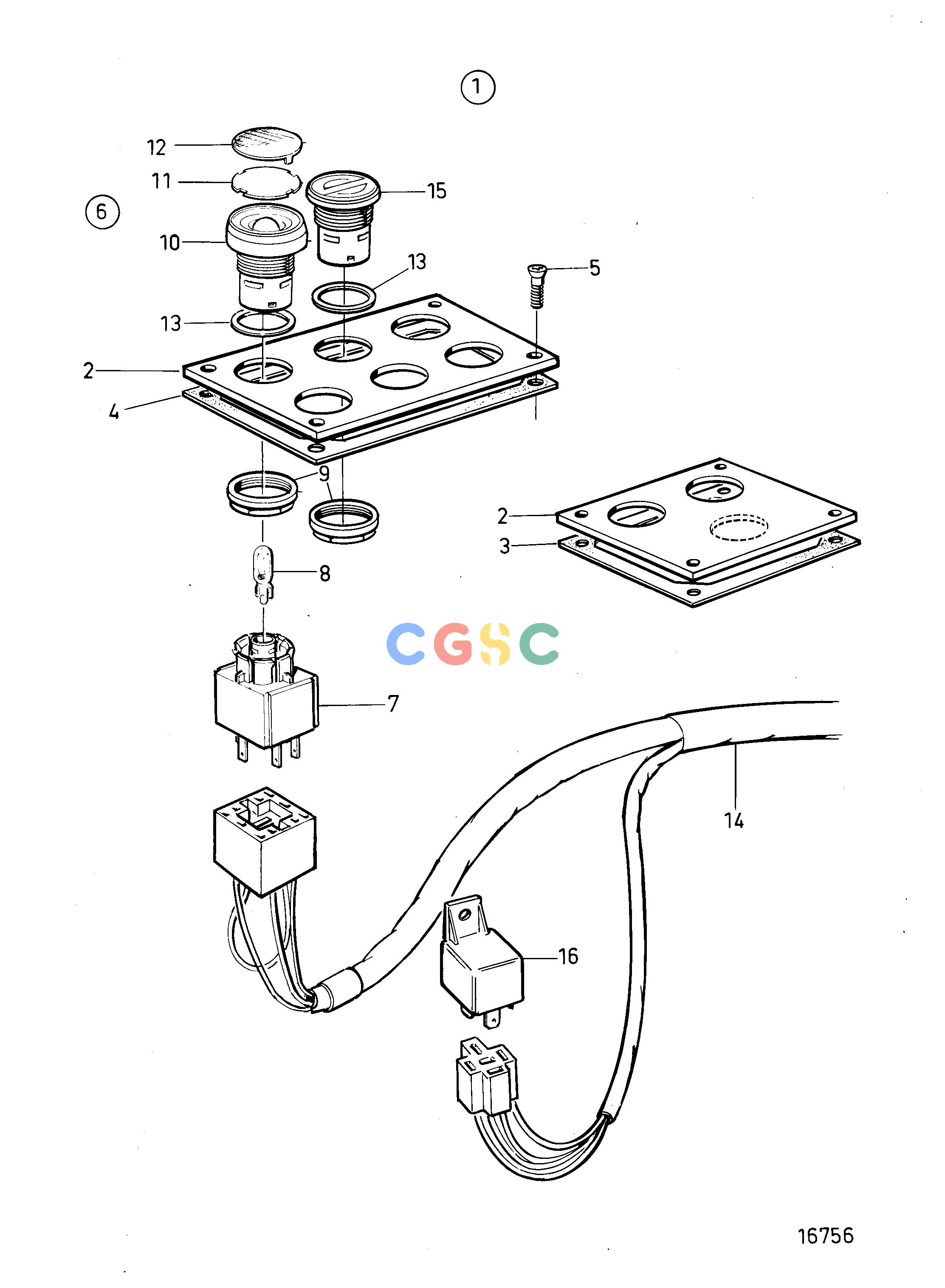

沃尔沃零件查询TAMD71B; TAMD73P-A; TAMD73WJ-AElectrical SystemMonitoring Panel for Single and Two Or More Stations: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
278 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
Singel engine installation. For singel station., 2 hole
|
| 2. |
873642
|
[1] |
Plate
|
Singel engine installation. For singel station., 3 hole
|
| 3. |
873643
|
[1] |
Gasket
|
|
| 5. |
828647
|
[4] |
Screw
|
|
| 6. |
876950
|
[2] |
Push button kit
|
|
| 7. |
|
|
|
24V, 1,2W
|
| 8. |
942327
|
[2] |
Bulb
|
12V, 1,2W
|
| 8. |
943638
|
[2] |
Bulb
|
24V, 1,2W
|
| 9. |
|
|
|
|
| 10. |
|
|
|
Green
|
| 11. |
|
|
|
Yellow
|
| 12. |
|
|
|
Blue
|
| 13. |
|
|
|
|
| 14. |
873629
|
[1] |
Cable harness
|
|
