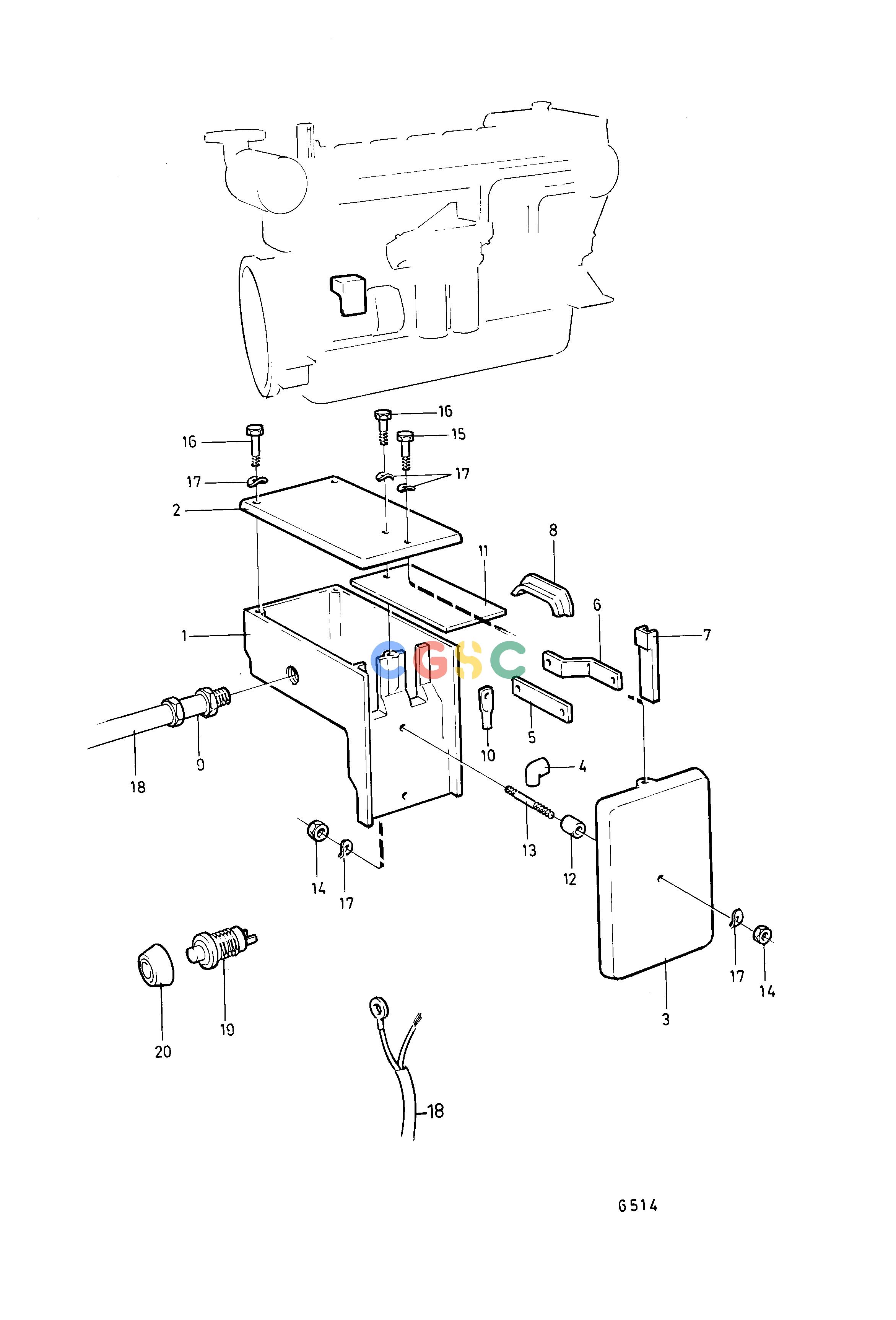

沃尔沃零件查询TAMD71B; TAMD73P-A; TAMD73WJ-AElectrical SystemStarter Casing. ClassifiableEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
399 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
846565
|
[1] |
Clutch housing
|
|
| 2. |
837378
|
[1] |
Cap
|
|
| 3. |
837379
|
[1] |
Cap
|
|
| 4. |
847742
|
[2] |
Clamping sleeve
|
|
| 5. |
837483
|
[1] |
Guide rail
|
|
| 6. |
837484
|
[1] |
Guide rail
|
|
| 7. |
837486
|
[4] |
Housing
|
|
| 8. |
837488
|
[1] |
Sealing strip
|
|
| 9. |
881192
|
[1] |
Grommet
|
|
| 10. |
7740910_202
|
|
electrical materials
|
|
| 11. |
837558
|
[1] |
Guard plate
|
|
| 12. |
192618
|
[1] |
Hose
|
L=50mm
|
| 13. |
946945
|
[1] |
Stud
|
|
| 14. |
955825
|
[2] |
Hexagon nut
|
|
| 15. |
955513
|
[1] |
Hexagon screw
|
|
| 16. |
940117
|
[3] |
Hexagon screw
|
|
| 17. |
941906
|
[7] |
Spring washer
|
|
| 18. |
7740910_202
|
|
electrical materials
|
|
| 19. |
843684
|
[1] |
Button
|
|
| 20. |
837533
|
[1] |
Rubber cap
|
|
