斗山零件查询CHASSIS COMPONENT SOLAR 140W-V RAIL WAY Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
609 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

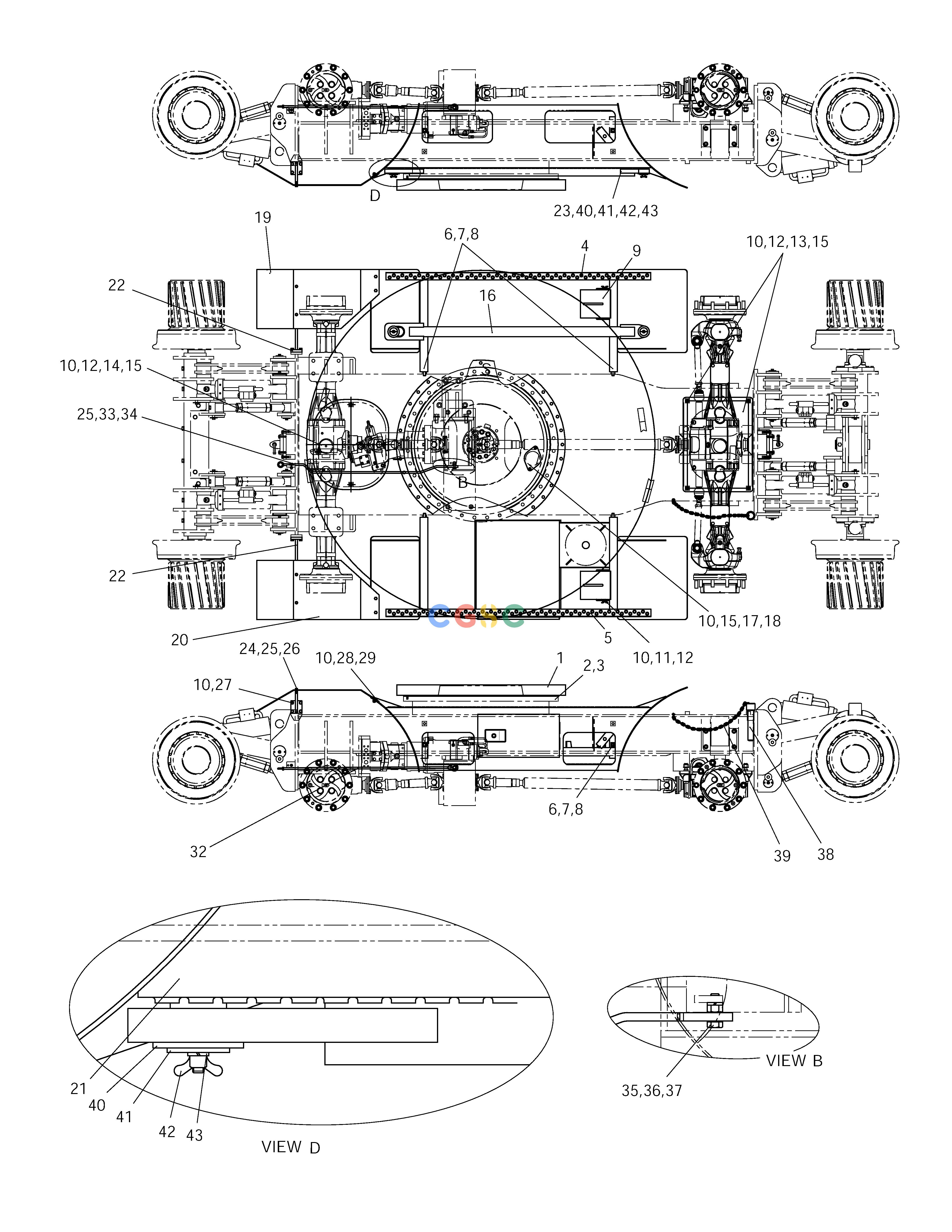

9230-1001
|
[-] |
CHASSIS COMPONENT
|
|
| 1. |
109-00029A
|
[1] |
BEARING;SWING
|
|
| 10. |
S5102603
|
[24] |
. WASHER
|
|
| 11. |
S3056253
|
[2] |
BOLT;WING
|
|
| 12. |
2114-1058D1
|
[10] |
WASHER
|
|
| 13. |
2621-3530A
|
[1] |
COVER;FRONT
|
|
| 14. |
621-02249
|
[1] |
COVER;REAR CHASSIS
|
|
| 15. |
S0511853
|
[10] |
BOLT
|
|
| 16. |
9195-1340
|
[1] |
ROD
|
|
| 17. |
2180-1017A
|
[1] |
PACKING
|
|
| 18. |
2403-1002
|
[1] |
COVER
|
|
| 19. |
9625-1004
|
[1] |
STEP;EXTENSION LH
|
|
| 2. |
S0770066
|
[36] |
BOLT
|
|
| 20. |
9625-1003
|
[1] |
STEP;EXTENSION RH
|
|
| 21. |
9195-1360
|
[1] |
BRACKET
|
|
| 22. |
9195-1342
|
[2] |
BRACKET
|
|
| 23. |
9195-1359
|
[1] |
BRACKET
|
|
| 24. |
S0509253
|
[4] |
BOLT M8X1.25X30
|
|
| 25. |
S5010513
|
[5] |
WASHER
|
|
| 26. |
S5102503
|
[4] |
. WASHER
|
|
| 27. |
S0512353
|
[8] |
BOLT M10X1.5X35
|
|
| 28. |
S0512053
|
[4] |
BOLT
|
|
| 29. |
S4012633
|
[4] |
NUT
|
|
| 3. |
2114-9012A
|
[36] |
WASHER
|
|
| 32. |
9195-1346
|
[1] |
ROD
|
|
| 33. |
S0509353
|
[1] |
BOLT M8X1.25X35
|
|
| 34. |
S4012533
|
[1] |
NUT
|
|
| 35. |
S0515453
|
[1] |
BOLT
|
|
| 36. |
S4012733
|
[1] |
NUT
|
|
| 37. |
S5102703
|
[1] |
WASHER
|
|
| 38. |
9123-1047
|
[1] |
PIN;LOCK
|
|
| 39. |
9106-1001D1
|
[1] |
PIN;CHAIN LOCK
|
|
| 4. |
625-E00045A
|
[1] |
STEP-LH
|
|
| 40. |
2114-1811
|
[2] |
WASHER;REBOUND
|
|
| 41. |
2114-1058D73
|
[2] |
WASHER
|
|
| 42. |
S4540603
|
[2] |
NUT;WING M10X1.5
|
|
| 43. |
S5102603
|
[2] |
. WASHER
|
|
| 5. |
625-1E00047A
|
[1] |
STEP-RH
|
|
| 6. |
S0521466
|
[8] |
BOLT
|
|
| 7. |
S5102903
|
[8] |
WASHER
|
|
| 8. |
2114-1058D2
|
[8] |
WAHSER
|
|
| 9. |
2542-1002A
|
[2] |
CHOCK;WHEEL
|
|
