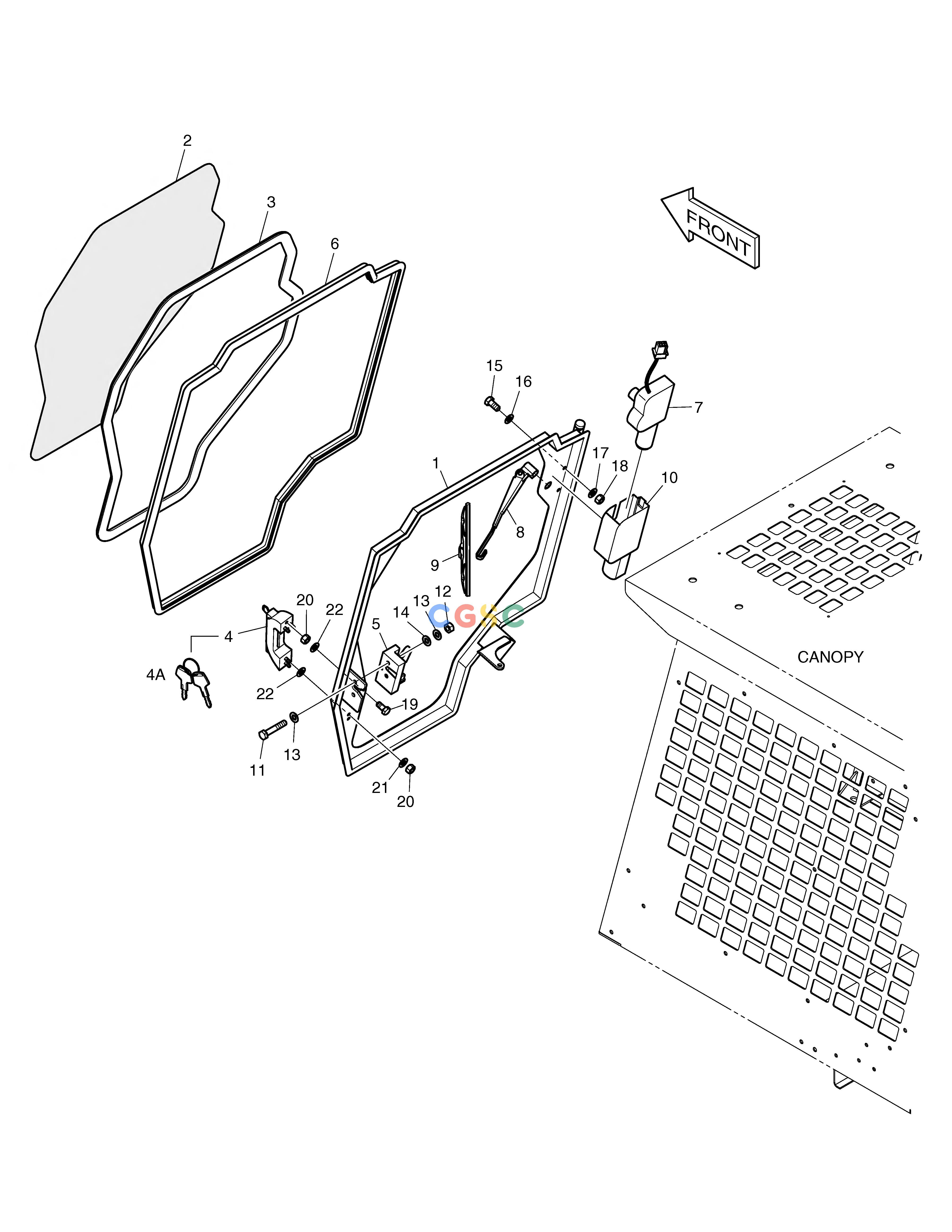

斗山零件查询FRONT DOOR 450 PLUS_TIER-3 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
652 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1021077
|
[1] |
DOOR ASS'Y;FRONT
|
|
| 1. |
NA00470
|
[1] |
|
|
| 10. |
2403-1053
|
[1] |
COVER;WIPER MOTOR
|
|
| 11. |
S0509563
|
[2] |
BOLT
|
|
| 12. |
S4012533
|
[2] |
NUT
|
|
| 13. |
K1023146
|
[4] |
WASHER;HARDENED
|
|
| 14. |
S5100503
|
[2] |
WASHER
|
|
| 15. |
S3450833
|
[2] |
BOLT
|
|
| 16. |
S5000213
|
[2] |
. WASHER
|
|
| 17. |
S5100203
|
[2] |
WASHER
|
|
| 18. |
S4010203
|
[2] |
NUT
|
|
| 19. |
S0505363
|
[1] |
BOLT,HEX
|
|
| 2. |
K1021163
|
[1] |
GLASS
|
|
| 20. |
S4012333
|
[5] |
NUT
|
|
| 21. |
S5010313
|
[4] |
WASHER
|
|
| 22. |
S5100303
|
[5] |
WASHER
|
|
| 3. |
2198-1013
|
[1] |
RUBBER;H
|
|
| 4. |
K1020877
|
[1] |
HANDLE
|
|
| 4A. |
K1020878
|
[1] |
KEY;DOOR
|
|
| 5. |
K1019092
|
[1] |
LATCH
|
|
| 6. |
K1019748
|
[306] |
STRIP
|
|
| 7. |
K1019107
|
[1] |
MOTOR;WIPER
|
|
| 8. |
K1020879
|
[1] |
ARM;WIPER
|
|
| 9. |
K1020880
|
[1] |
BLADE;WIPER
|
|
