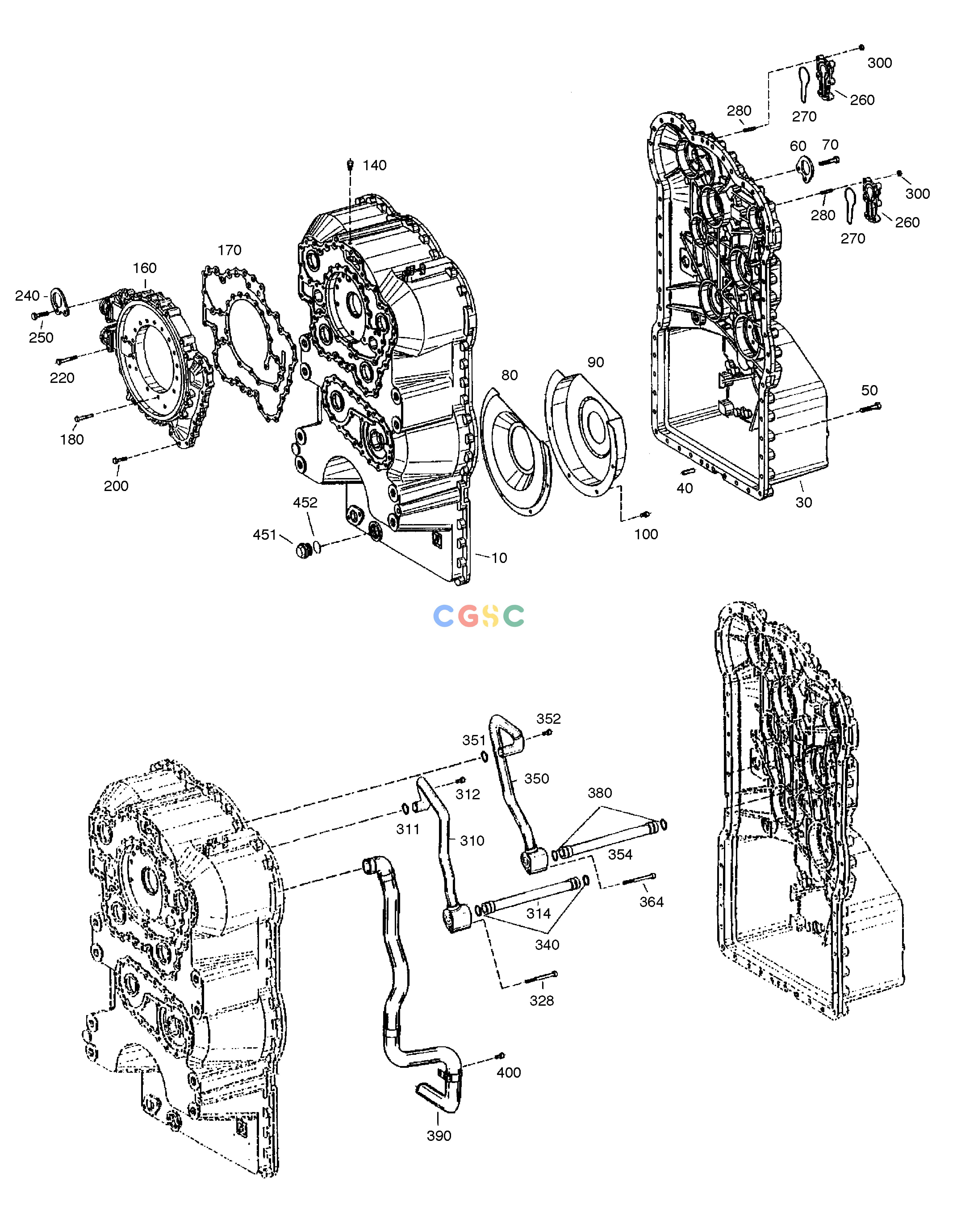

斗山零件查询GEARBOX HOUSING - T/MISSION MEGA 250-V (S/N 3001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
332 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
K9000587
|
[1] |
HOUSING;FRONT
|
|
| 100. |
1.120-00081
|
[5] |
SCREW
|
|
| 140. |
2.422-00001
|
[1] |
BREATHER
|
|
| 160. |
1.402-00115
|
[1] |
HOUSING;OIL FEED
|
|
| 170. |
1.180-00001
|
[1] |
GASKET
|
|
| 180. |
1.120-00083
|
[21] |
SCREW
|
|
| 200. |
1.120-00082
|
[15] |
SCREW
|
|
| 220. |
1.120-00084
|
[4] |
SCREW
|
|
| 240. |
1.412-00003
|
[1] |
PLATE;FIXING
|
|
| 250. |
1.120-00079
|
[2] |
SCREW
|
|
| 260. |
1.430-00001
|
[2] |
COVER
|
|
| 270. |
1.180-00051
|
[2] |
O-RING
|
|
| 280. |
1.120-00036
|
[12] |
STUD
|
|
| 30. |
1.402-00117
|
[1] |
HOUSING;REAR
|
|
| 300. |
1.121-00034
|
[12] |
NUT;HEX.
|
|
| 310. |
K9000588
|
[1] |
TUBE;OIL
|
|
| 311. |
1.180-00053
|
[1] |
O-RING
|
|
| 312. |
1.120-00081
|
[2] |
SCREW
|
|
| 314. |
1.441-00257
|
[1] |
TUBE;OIL
|
|
| 328. |
1.120-00099
|
[1] |
SCREW
|
|
| 340. |
1.180-00053
|
[1] |
O-RING
|
|
| 350. |
K9000589
|
[1] |
TUBE;OIL
|
|
| 351. |
1.180-00053
|
[1] |
O-RING
|
|
| 352. |
1.120-00081
|
[2] |
SCREW
|
|
| 354. |
1.441-00257
|
[1] |
TUBE;OIL
|
|
| 364. |
1.120-00099
|
[1] |
SCREW
|
|
| 380. |
1.180-00053
|
[2] |
O-RING
|
|
| 390. |
1.441-00260
|
[1] |
TUBE;SUCTION
|
|
| 40. |
1.123-00002
|
[2] |
GOUPILLE
|
|
| 400. |
1.120-00081
|
[1] |
SCREW
|
|
| 451. |
1.181-00015
|
[1] |
PLUG
|
|
| 452. |
1.180-00052
|
[1] |
. O-RING
|
|
| 50. |
1.120-00098
|
[51] |
SCREW
|
|
| 60. |
1.412-00003
|
[1] |
PLATE;FIXING
|
|
| 70. |
1.120-00098
|
[2] |
SCREW
|
|
| 80. |
1.461-00009
|
[1] |
SHEET;SCREEN
|
|
| 90. |
1.461-00010
|
[1] |
SHEET;SCREEN
|
|
