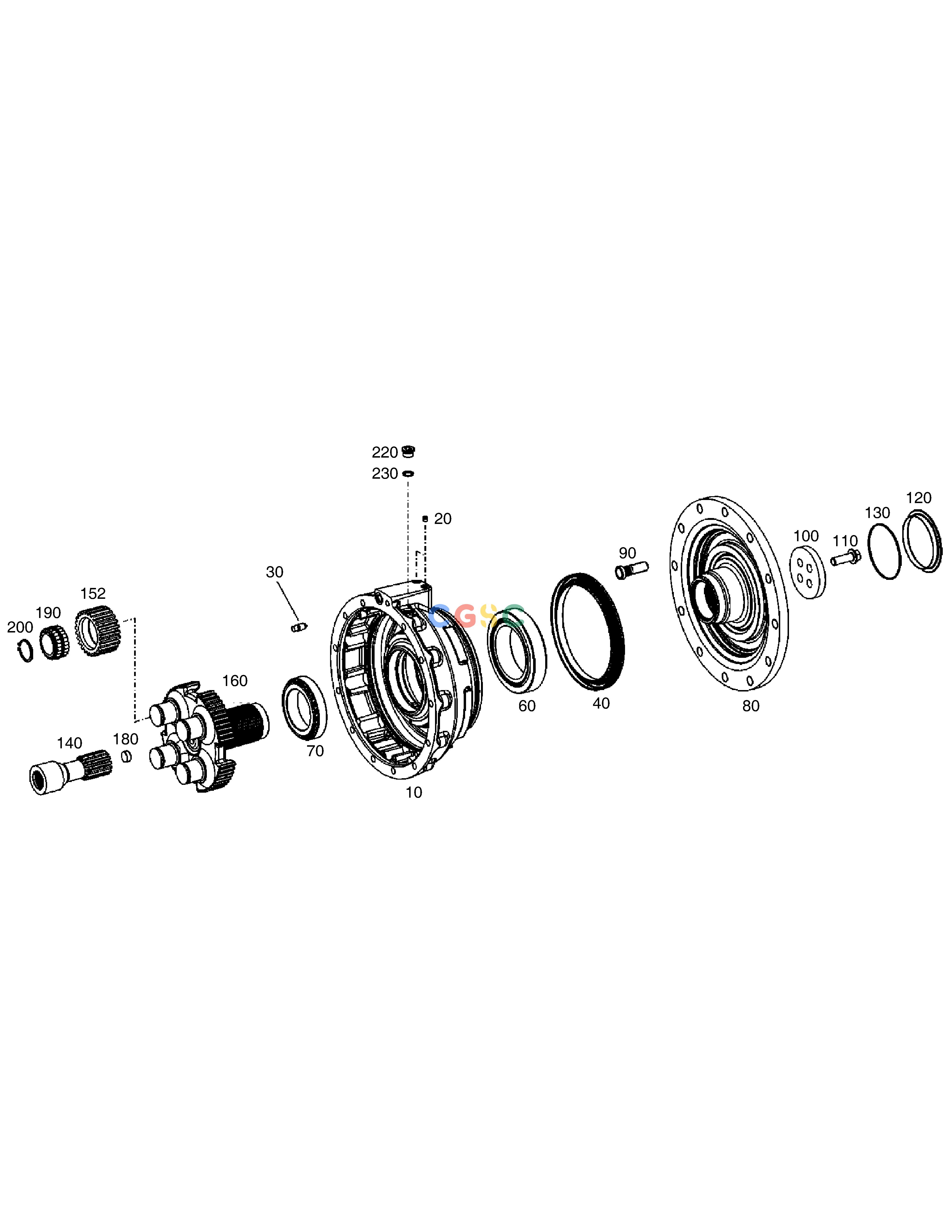

斗山零件查询OUTPUT - REAR AXLE MEGA 250-V (S/N 3001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
648 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
K9006049
|
[1] |
HOUSING;BRAKE
|
|
| 100. |
K9006054
|
[1] |
COVER
|
|
| 110. |
K9006019
|
[4] |
SCREW;LOCKING
|
|
| 120. |
K9006056
|
[1] |
COVER
|
|
| 130. |
2.180-00284
|
[1] |
O-RING
|
|
| 140. |
K9006051
|
[1] |
SHAFT;SUN GEAR
|
|
| 152. |
K9002965
|
[4] |
GEAR;PLANET
|
|
| 160. |
K9006046
|
[1] |
CARRIER;PLANET
|
|
| 180. |
K9000277
|
[1] |
BOLT;STOP
|
|
| 190. |
K9002967
|
[4] |
BEARING;ROLLER
|
|
| 20. |
K9000032
|
[2] |
PLUG
|
|
| 200. |
K9000777
|
[4] |
RING;RETAINING
|
|
| 220. |
K9000164
|
[1] |
PLUG;SCREW
|
|
| 230. |
1.180-00137
|
[1] |
. O-RING
|
|
| 30. |
1.420-00157
|
[1] |
VALVE;VENT
|
|
| 40. |
K9000240
|
[1] |
RING;MULTI SEAL
|
|
| 60. |
K9000323
|
[1] |
BEARING;TAPPER ROLLER
|
|
| 70. |
K9006037
|
[1] |
BEARING;TAPER ROLLER
|
|
| 80. |
K9006055
|
[1] |
SHAFT;DUTPUT
|
|
| 90. |
K9002864
|
[12] |
BOLT;WHEEL
|
|
