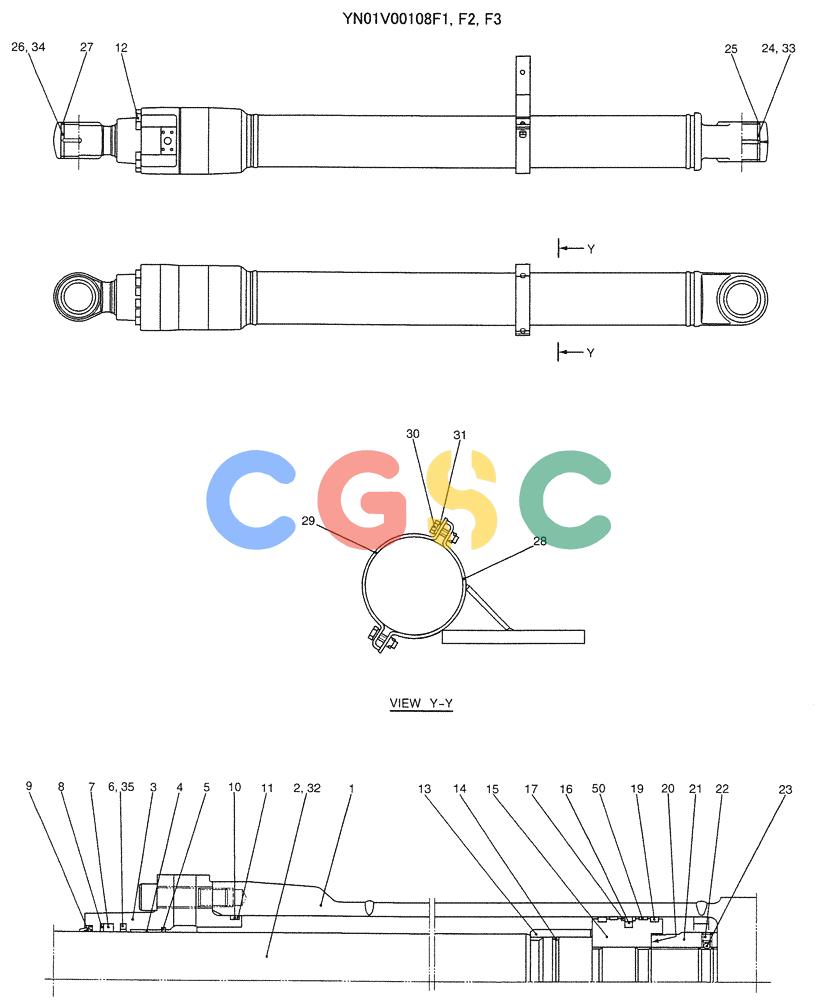

纽荷兰零件查询(E235SRLC) - CRAWLER EXCAVATOR BTW YU04-00837 - YU04-01417 (07-017) - CYLINDER ASSY, BOOM (L.H.) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
1006 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONTUBE, CYLINDER |
| 3. | YN01V00107S003 | [1] | CYLINDER HEAD | KOB |
| 4. | 2438U1106S17 | [1] | BUSHING | KOB |
| 5. | 2438U959S5 | [1] | RING | KOBRETAINING |
| 6. | LQ01V00004S006 | [1] | RING | KOBBUFFER, (FOR F1 & F2 ONLY) |
| 7. | 2438U959S7 | [1] | RING | KOBU |
| 8. | 2438U959S8 | [1] | RING | KOBBACK UP |
| 9. | LP01V00008S009 | [1] | RING | KOBWIPER |
| 10. | ZD12G12000 | [1] | O-RING,3.1mm Thk x 119.4mm ID, 90 Duro | KOBO-RING |
| 11. | 2438U1102S12 | [1] | O-RING | KOBBACK UP |
| 14. | YN01V00103S014 | [1] | SEAL | KOBCUSHION |
| 15. | YN01V00103S015 | [1] | PISTON | KOB |
| 16. | 2438U675S20 | [1] | RING | KOBSEAL |
| 17. | YM01V00008S017 | [2] | RING | KOBBACK UP |
| 19. | 2438U675S28 | [2] | RING | KOBSLIDE |
| 20. | 2438U1948S20 | [1] | SHIM | KOB |
| 21. | YN01V00103S021 | [1] | NUT | KOB |
| 22. | 2438U999S21 | [1] | SET SCREW | KOBSET |
| 23. | 2436U330S16 | [1] | BALL | KOB |
| 25. | 2445R138D8 | [2] | SEAL,90mm ID x 105mm OD x 4mm Thk | KOBRING,WIPER |
| 27. | YM01V00006S025 | [2] | RING | KOBWIPER Superseded by part number: 2438U941S3 |
| 28. | YN01V00103S028 | [1] | BAND | KOBASSY |
| 29. | YN01V00103S029 | [1] | BAND | KOB |
| 30. | ZS18C10035 | [2] | SCREW,Hex, M10 x 35mm | KOBM10x1.50x35mm |
| 31. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 33. | YN01V01075P1 | [1] | BUSHING,90mm ID x 105mm OD x 100mm L | KOBBUSHING, (FOR F2 & F3 ONLY) |
| 34. | YN01V01074P1 | [1] | BUSHING,85mm ID x 100mm OD x 95mm L | KOB(FOR F2 & F3 ONLY) |
| 50. | 2438U1102S18 | [2] | RING | KOBRING |
| . . | YN01V00103R100 | [1] | REPAIR KIT | KOBROD SIDE CONSISTS OF REF. 7(1), 8(1), 9(1), 10(1), 11(1), 35(1), (FOR F3 ONYL) |
| . . | YN01V00103R800 | [1] | REPAIR KIT | KOBPISTON SIDE CONSISTS OF REF. 14(1), 16(1), 17(2), 19(2), 50(2), (FOR F3 ONLY) |
| . . | YN01V00103R900 | [1] | REPAIR KIT | KOBALL(ROD + PISTON) CONSISTS OF REF. 7(1), 8(1), 9(1), 10(1), 11(1), 14(1), 16(1), 17(2), 19(2), 35(1), 50(2) , (FOR F3 ONLY) |
| . . | YN01V00107R900 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 27(2), 32(1), 34(1) , (FOR F2 7 F3 ONLY) |
