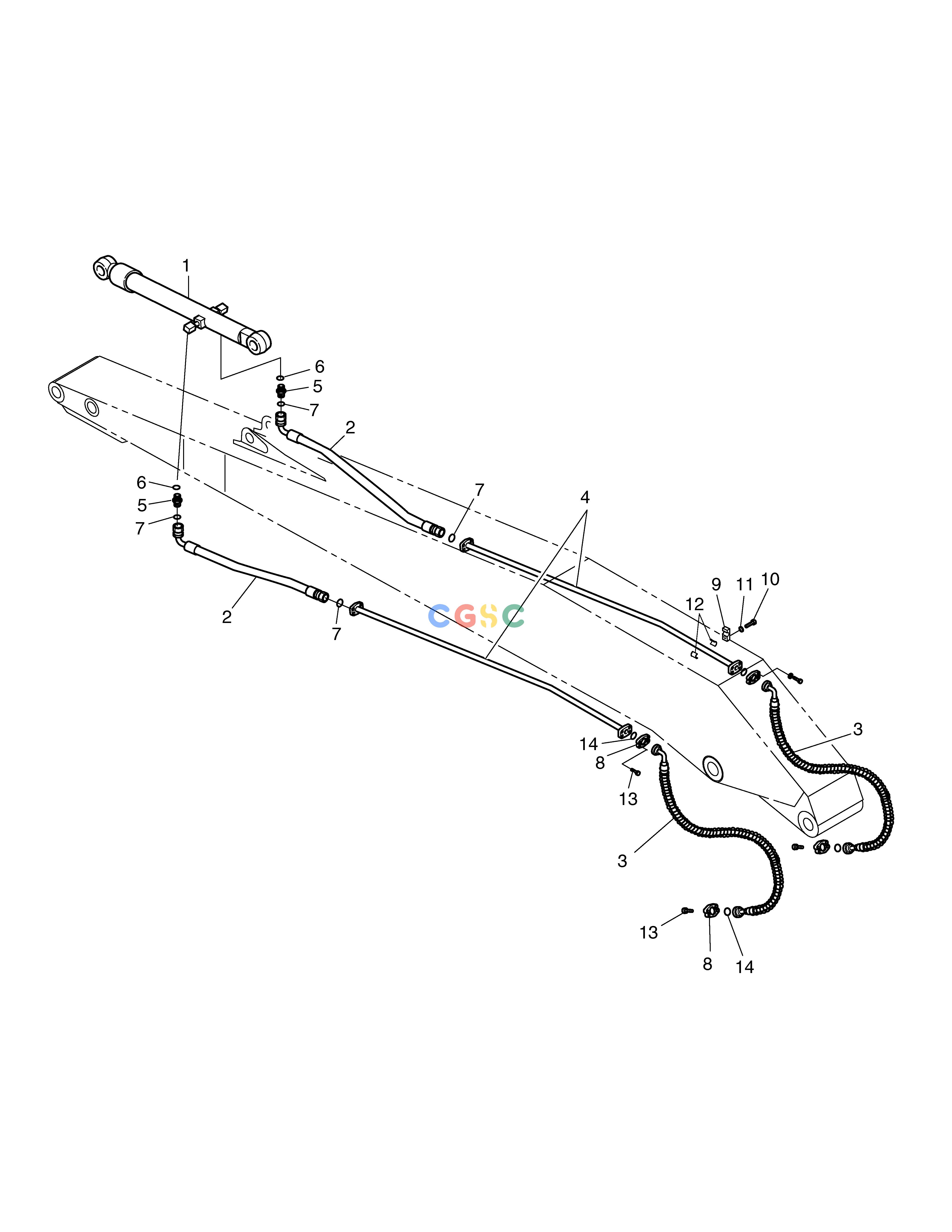

斗山零件查询ARM PIPING-6.2m SOLAR 220LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
861 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-2048
|
[-] |
ARM PIPING-6.2m
|
|
| 1. |
2440-9233A
|
[1] |
CYLINDER;BUCKET
|
2440-9233B
|
| 1. |
2440-9233B
|
[1] |
CYLINDER;BUCKET
|
440-00398
|
| 1. |
440-00398
|
[1] |
CYLINDER;BUCKET
|
|
| 10. |
S0560853
|
[6] |
BOLT M12X1.75X55
|
|
| 11. |
S5102703
|
[6] |
WASHER
|
|
| 12. |
2161-2250A
|
[12] |
RUBBER
|
|
| 13. |
S2212361
|
[16] |
BOLT;SOCKET M10X1.5X35
|
S2212366
|
| 13. |
S2212366
|
[16] |
BOLT
|
|
| 14. |
2180-1026D2
|
[4] |
O-RING
|
|
| 2. |
2184-1197D5
|
[2] |
HOSE
|
|
| 3. |
2184-1100D160
|
[2] |
HOSE
|
|
| 4. |
2140-1573
|
[2] |
PIPE
|
|
| 5. |
2181-2627D1
|
[2] |
ADAPTER
|
|
| 6. |
S8000231
|
[2] |
O-RING
|
|
| 7. |
S8030121
|
[4] |
O-RING
|
|
| 8. |
2181-9079
|
[8] |
FLANGE
|
|
| 9. |
2124-1601A
|
[6] |
CLAMP;PIPE
|
|
