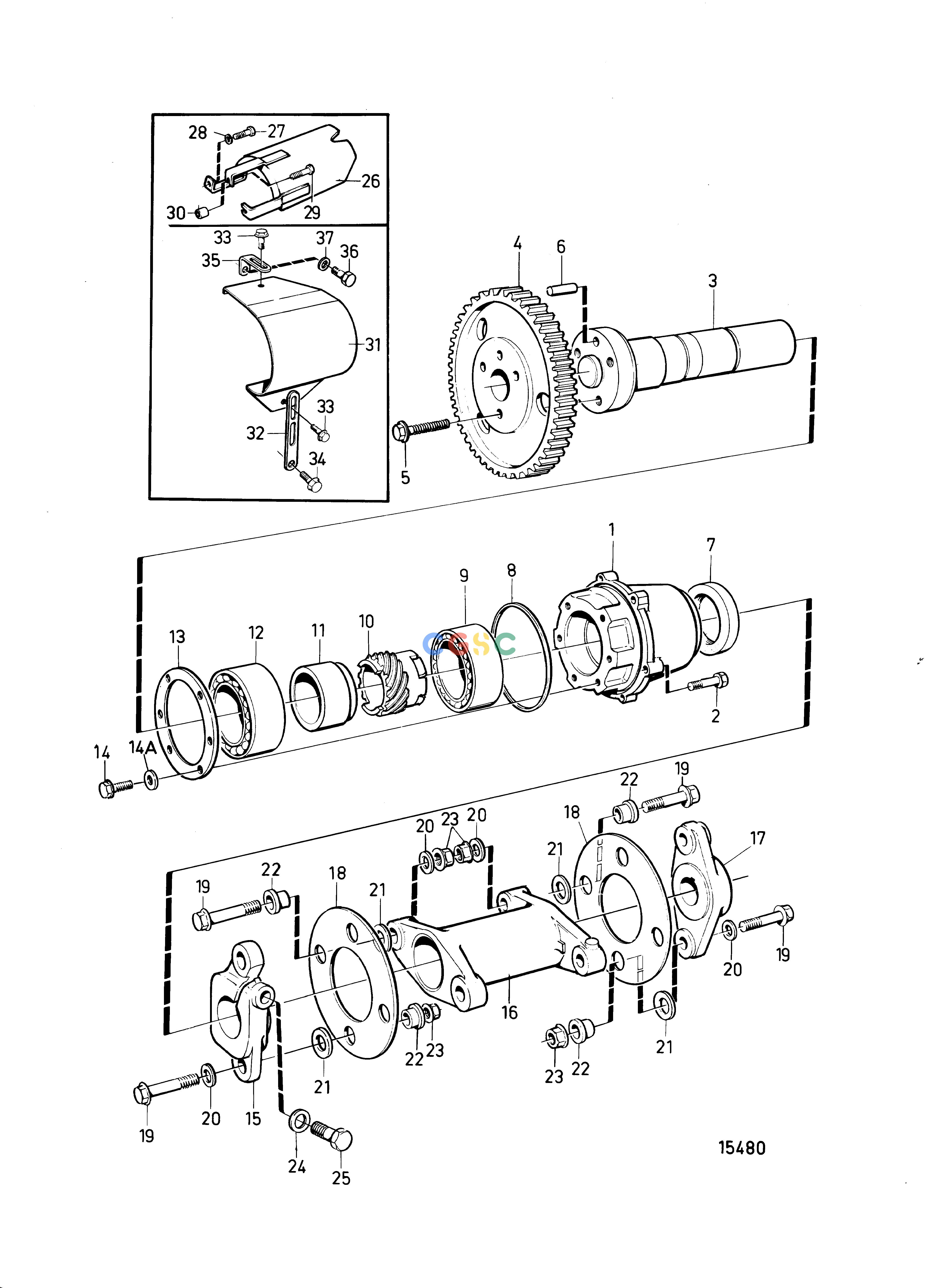

沃尔沃零件查询TAMD71B; TAMD73P-A; TAMD73WJ-AFuel SystemCoupling for Fuel Injection Pump with CoverEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
160 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
471556
|
[1] |
Bearing housing
|
Replaced by 1pc bearing housing 420903 and 5pcs screw 948336.
|
| 1. |
420903
|
[1] |
Bearing housing
|
|
| 2. |
945444
|
[5] |
Flange screw
|
L=25mm, earlier prod
|
| 2. |
948336
|
[5] |
Flange screw
|
L=30mm,later prod (946671)
|
| 3. |
471557
|
[1] |
Axle shaft
|
|
| 4. |
478297
|
[1] |
Gear
|
Nitro
|
| 5. |
471558
|
[3] |
Screw
|
|
| 6. |
950586
|
[1] |
Pin
|
|
| 7. |
424580
|
[1] |
Sealing ring
|
|
| 8. |
423123
|
[1] |
Sealing ring
|
|
| 9. |
11013
|
[1] |
Ball bearing
|
|
| 10. |
469364
|
[1] |
Gear
|
|
| 11. |
469363
|
[1] |
Stop ring
|
|
| 12. |
181577
|
[1] |
Ball bearing
|
|
| 13. |
423074
|
[1] |
Washer
|
|
| 14. |
955274
|
[6] |
Hexagon screw
|
|
| 14A. |
955892
|
[6] |
Washer
|
|
| 15. |
471383
|
[1] |
Companion flange
|
|
| 16. |
471368
|
[1] |
Spacer
|
|
| 17. |
471312
|
[1] |
Companion flange
|
|
| 18. |
479459
|
[6] |
Flexplate
|
|
| 19. |
946470
|
[8] |
Flange screw
|
|
| 20. |
976944
|
[8] |
Washer
|
(960141)
|
| 21. |
479460
|
[8] |
Washer
|
|
| 22. |
478896
|
[8] |
Sleeve
|
|
| 23. |
945408
|
[8] |
Flange nut
|
(968862)
|
| 24. |
976945
|
[1] |
Washer
|
|
| 25. |
970878
|
[1] |
Hexagon screw
|
|
| 26. |
4772263
|
[1] |
Protection
|
Early type
|
| 26. |
865291
|
[1] |
Protecting plate
|
Late type
|
| 27. |
945444
|
[2] |
Flange screw
|
Late type
|
| 28. |
976944
|
[3] |
Washer
|
(960141)
|
| 29. |
965216
|
[1] |
Flange screw
|
Earlier prod, L=55mm
|
| 30. |
848684
|
[1] |
Spacer sleeve
|
Early type
|
| 31. |
865745
|
[1] |
Protecting plate
|
|
| 31. |
3825430
|
[1] |
Protecting plate
|
Aux
|
| 32. |
965542
|
[1] |
Bracket
|
|
| 33. |
967949
|
[2] |
Flange screw
|
(965175)
|
| 34. |
965227
|
[1] |
Flange screw, engine bracket
|
See group 21
|
| 35. |
965552
|
[1] |
Bracket
|
|
| 36. |
946440
|
[1] |
Flange screw
|
(946173)
|
| 37. |
941907
|
[1] |
Spring washer
|
Early type
|
