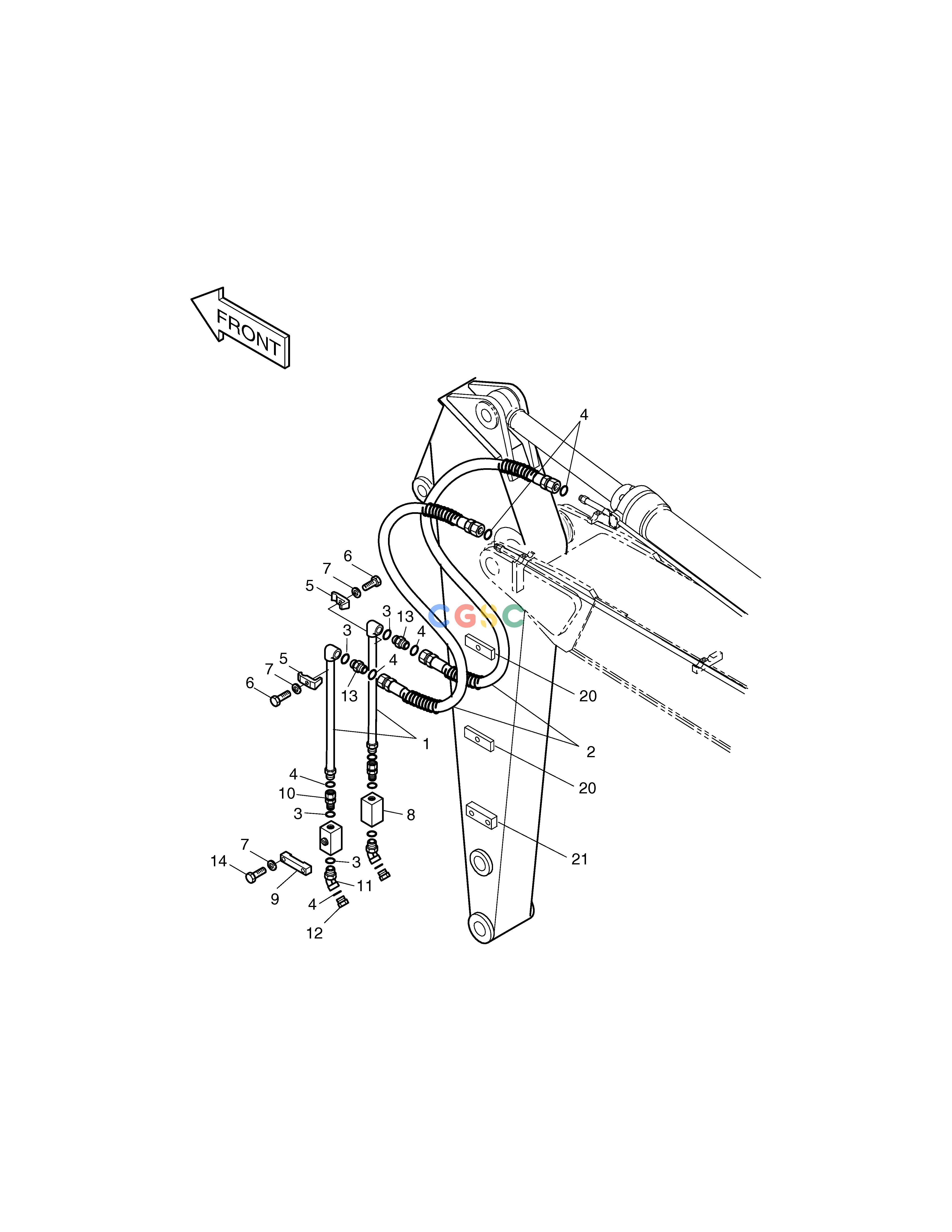

斗山零件查询ARM PIPING-ARM 2.9m 1 & 2 WAY(ARTI.BOOM) SOLAR 220LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
362 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-00390
|
[-] |
ARM PIPING-2.9m
|
|
| 1. |
2140-1677
|
[2] |
PIPE
|
|
| 10. |
2181-2566D8
|
[2] |
ADAPTER;UNION
|
|
| 11. |
2181-2816D2
|
[2] |
ELBOW
|
|
| 12. |
2181-2817D2
|
[2] |
CAP
|
|
| 13. |
2181-4133D6
|
[2] |
ADAPTER
|
|
| 14. |
S0561353
|
[4] |
BOLT M12X1.75X80
|
|
| 2. |
2184-1196D76
|
[2] |
HOSE PF1-1900L
|
|
| 20. |
2191-1799D78
|
[4] |
SEAT;SCREW
|
|
| 21. |
2191-1067D180
|
[2] |
SEAT;SCREW
|
|
| 3. |
S8000291
|
[6] |
O-RING
|
|
| 4. |
S8030161
|
[8] |
O-RING
|
|
| 5. |
2124-1026D3
|
[4] |
CLAMP;PIPE
|
|
| 6. |
S0560953
|
[4] |
BOLT M12X1.75X60
|
|
| 7. |
S5102703
|
[8] |
WASHER
|
|
| 8. |
2420-9628
|
[2] |
VALVE;STOP
|
|
| 8. |
2420-9628A
|
[2] |
VALVE;STOP
|
|
| 9. |
2124-1695
|
[2] |
CLAMP;STOP VALVE
|
|
