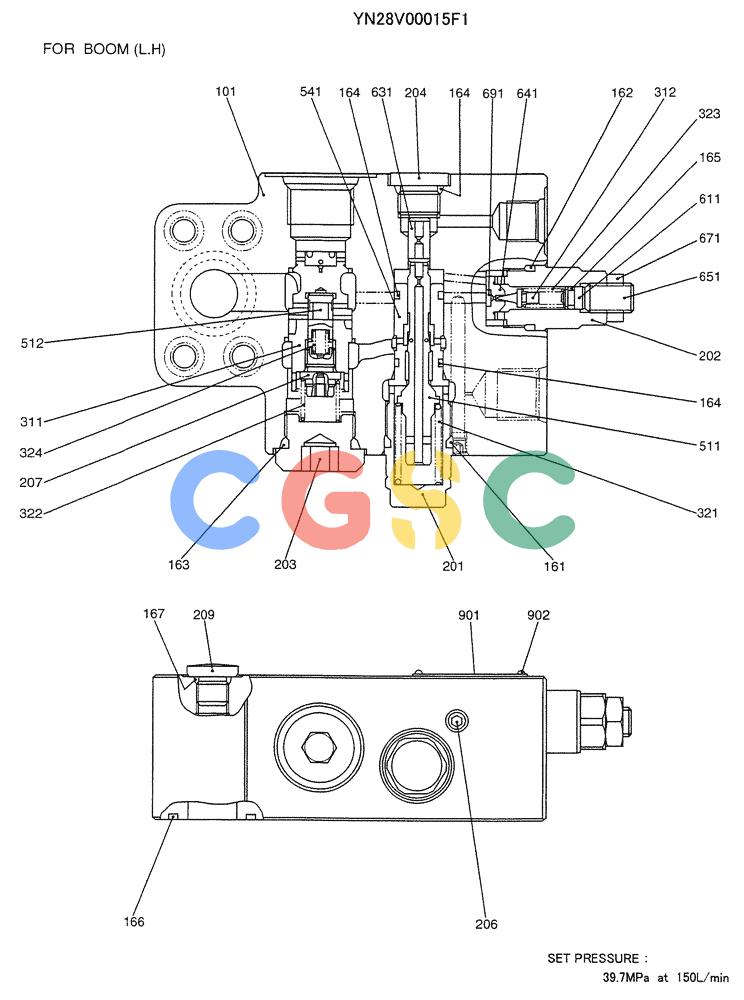

纽荷兰零件查询(E235SRLC) - CRAWLER EXCAVATOR BTW YU04-00837 - YU04-01417 (07-028) - VALVE ASSY, HOLDING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
438 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN28V00015F1 | [1] | HYDRAULIC VALVE | KOBASSY, HOLDING |
| 101. | NSS | [1] | NOT SERVICED SEPARATELY | CONBODY |
| 161. | ZD12P02290 | [1] | O-RING | KOB |
| 163. | ZD12P02400 | [1] | O-RING | KOB |
| 164. | ZD12P01600 | [3] | O-RING | KOB |
| 166. | ZD12G03000 | [1] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOB |
| 167. | ZD12P01100 | [1] | O-RING | KOB |
| 201. | YN28V00012S201 | [1] | PLUG | KOB |
| 203. | YN30V00001S556 | [1] | PLUG | KOB |
| 204. | 2436U1832S651 | [1] | PLUG | KOB |
| 206. | 2441U722S490 | [1] | PLUG | KOB |
| 209. | YW30V00001S157 | [1] | PLUG | KOB |
| 311. | YN28V00012S311 | [1] | POPPET | KOB |
| 321. | YN28V00012S321 | [1] | SPRING | KOB |
| 322. | YM28V00001S322 | [1] | SPRING | KOB |
| 541. | YN28V00012S541 | [1] | | |
| 631. | YM28V00001S631 | [1] | PISTON | KOB |
| . . | YN28V00009R100 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 207(1), 311(1), 324(1), 512(1) |
| . . | YN28V00014R200 | [1] | SPOOL | KOBREPAIR KIT CONSISTS OF REF. 164(2), 511(1), 541(1) |
