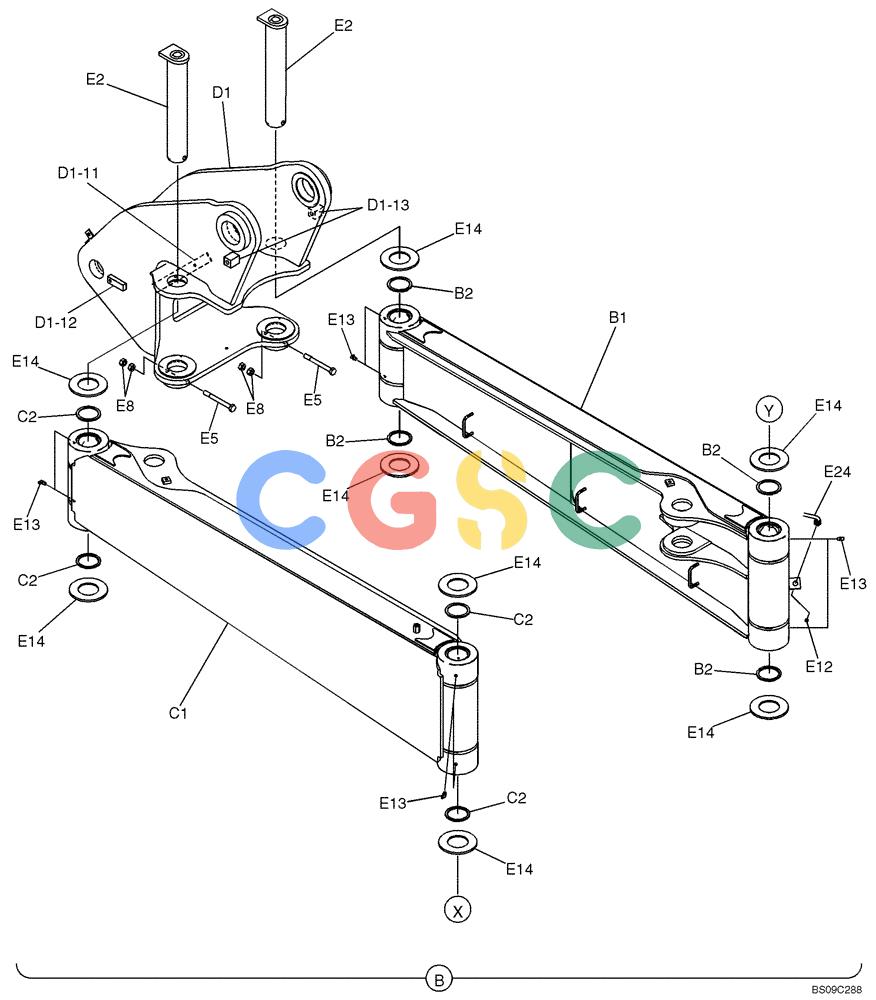

神钢零件查询(OFFSET BOOM) - ATTACHMENT - 140SR EXCAVATOR (ASN YH05-07001) (12/07-12/12) (06-043[03]) - BOOM ASSEMBLY, PAGE 3 OF 3 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
147 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YX05B00048F1 | [1] | Right Hand Front Boom Assembly, Incls. Refs. B1 & B2 | |
| B1. | YX05B00049F1 | [1] | BOOM | KOBRight Hand Front Boom Assembly |
| B2. | 2445R138D6 | [4] | SEAL,70mm ID x 85.3mm OD x 4mm Thk | KOBDust Seal -- ID 70 x OD 85 x Th 4mm |
| . . | YX05B00051F1 | [1] | Left Hand Front Boom Assembly, Incls. Refs. C1 & C2 | |
| C1. | YX05B00070F1 | [1] | BOOM | KOBLeft Hand Front Boom Assembly Superseded by part number: YX05B00086F1 |
| C2. | 2445R138D6 | [4] | SEAL,70mm ID x 85.3mm OD x 4mm Thk | KOBDust Seal -- ID 70 x OD 85 x Th 4mm |
| . . | YX05B00074F1 | [1] | Upper Boom Assembly, Incls. Refs. D1 | |
| D1. | YX05B00020P2 | [1] | BOOM | KOBUpper Boom, Incls. Refs. D1-11 - D1-13 |
| D1-11. | YX05B01020P1 | [1] | BLOCK | KOBTapped |
| D1-12. | YX05B01034P1 | [1] | BLOCK | KOBTapped |
| D1-13. | YX05B01040P1 | [2] | BLOCK | KOBTapped |
| . . | YX02B00016F1 | [1] | Boom Group, Incls. Refs. E1 - E36 | |
| E2. | YX02B01053P1 | [2] | PIN | KOBPin |
| E5. | HS18C14130G1 | [4] | CAPSCREW,M14 x 130mm, Cl 10.9 | KOBSCREW M14x2.0x130mm |
| E8. | ZN18C14011 | [8] | NUT | KOBM14x2.0mm |
| E12. | ZG91S02000 | [5] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| E13. | ZG91V02000 | [8] | LUBE NIPPLE,67 Degree x 1/8" PT | KOB67° x 1/8" PT Superseded by part number: 72283072 |
| E14. | B16T0442D1 | [8] | SHIM,130mm OD x 72mm ID x 1.2mm Thk | KOBID 72 x OD 130 x Th 1.2mm |
| E24. | 2444R1117D054 | [1] | HOSE,6.40mm ID x 540mm L | KOBHose, 540mm Long (21-1/4 in) |
