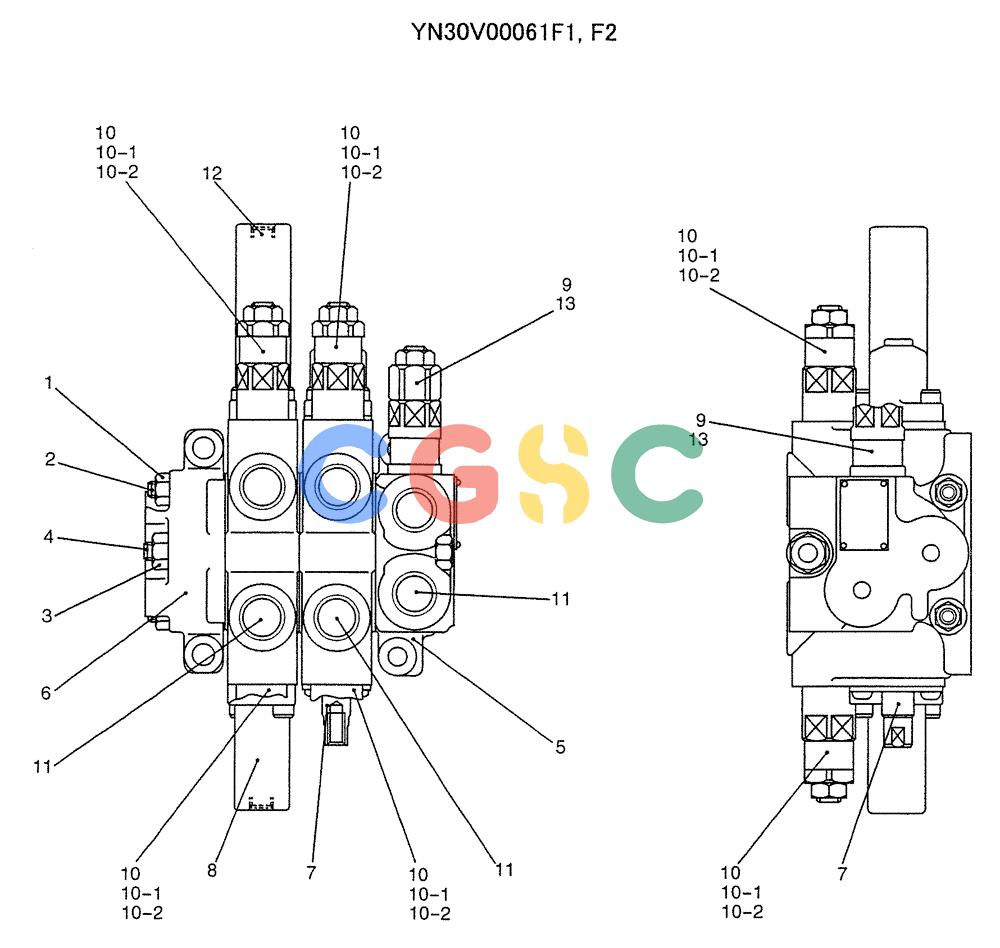

纽荷兰零件查询(E235SRLC) - CRAWLER EXCAVATOR BTW YU04-00837 - YU04-01417 (07-030) - VALVE ASSY, CONTROL (2-PIECE BOOM) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
1000 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN30V00061F1 | [1] | CONTROL VALVE | KOBVALVE ASSY, CONTROL |
| . . | YN30V00061F2 | [1] | VALVE BODY | KOBVALVE ASSY, CONTROL |
| 1. | ZN18C08007 | [4] | NUT | KOBM08x1.25mm |
| 2. | 2436U1238S2 | [2] | ROD | KOBTIE |
| 3. | 2436U424S9 | [2] | NUT | KOB |
| 4. | 2436U1238S4 | [1] | TIE-ROD | KOB |
| 5. | YR20V00001F1 | [1] | VALVE | KOBSECTION ASSY, INLET, SEE FIG 07-037 |
| 6. | 2436R329F1 | [1] | OUTLET | KOBSECTION ASSY |
| 7. | YR30V00018F1 | [1] | SPOOL | KOBSECTION ASSY, SEE FIG 07-039 |
| 8. | YT30V00027F1 | [1] | SPOOL | KOBSECTION ASSY, SEE FIG 07-043 |
| 9. | 2436R1119F1 | [1] | VALVE | KOBASSY, RELIEF, SEE FIG 07-003, (FOR F1 ONLY) Superseded by part number: 2436R1119 |
| 10. | PV22V00002F1 | [4] | VALVE | KOBASSY, RELIEF |
| 10-1. | 2436U388S25 | [1] | O-RING | KOB |
| 10-2. | ZD12P01000 | [1] | O-RING | KOB |
| 11. | YR30V00014S010 | [6] | PLUG | KOB |
| 12. | 2436U2937S18 | [2] | PLUG | KOB |
