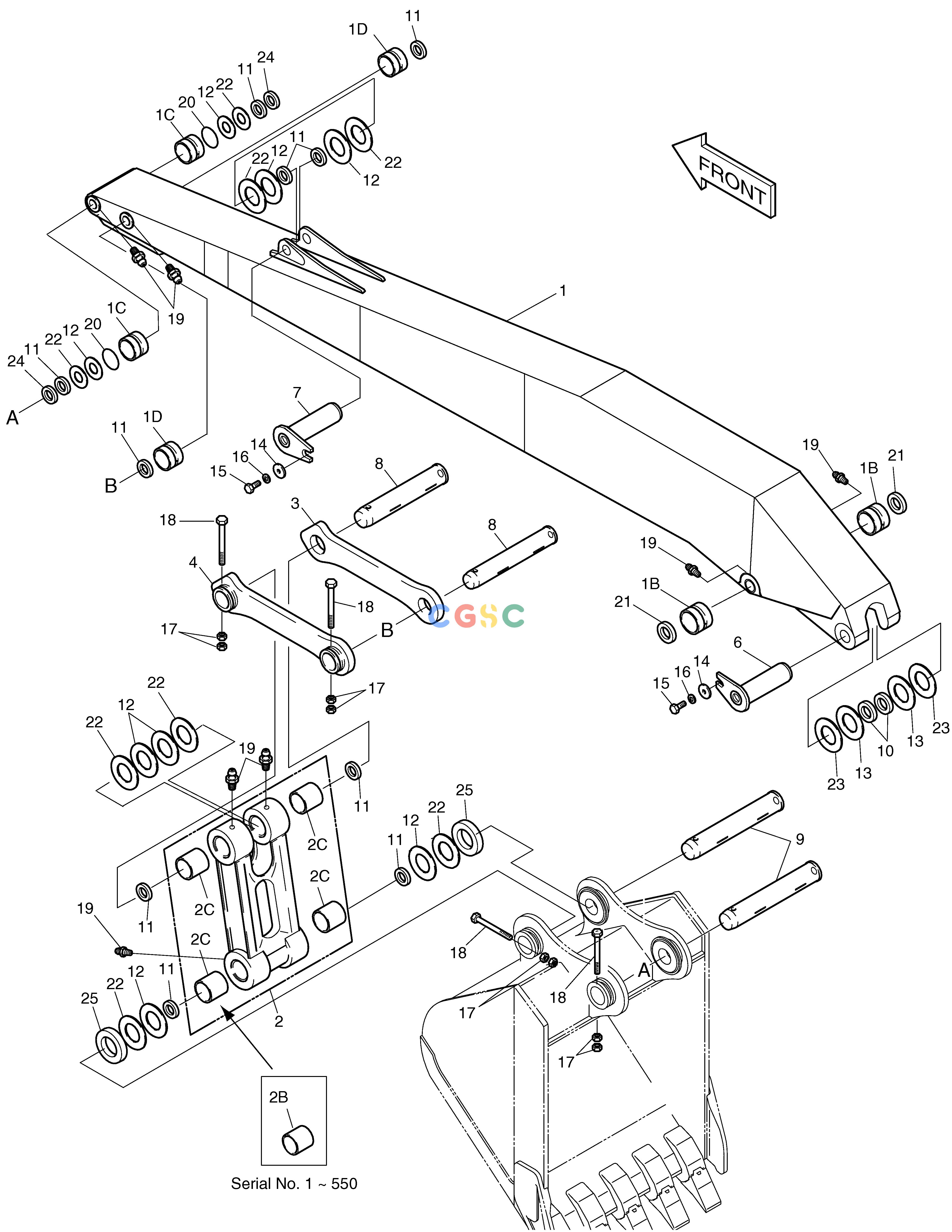

斗山零件查询ARM-6.2m SOLAR 220LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
759 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2701-1617
|
[-] |
ARM ASS'Y-6.2m
|
|
| 1. |
2701-1618
|
[1] |
ARM;MACH.-6.2m
|
|
| 1. |
2701-1618A
|
[1] |
ARM;MACH.-6.2m
|
2701-1618B
|
| 1. |
2701-1618B
|
[1] |
ARM;MACH.-6.2m
|
2701-1618C
|
| 1. |
2701-1618C
|
[1] |
ARM;MACH.-6.2m
|
2701-1618G
|
| 1. |
2701-1618G
|
[1] |
ARM;MACH.-6.2m
|
2701-1618H
|
| 1. |
2701-1618H
|
[1] |
ARM;MACH.-6.2m
|
|
| 10. |
2180-1106BD24
|
[2] |
SEAL;DUST
|
|
| 11. |
2180-1106BD3
|
[16] |
SEAL;DUST
|
|
| 12. |
2114-1058D12
|
[8] |
SHIM
|
|
| 13. |
2114-1059D100
|
[2] |
SHIM
|
|
| 14. |
2116-1060D6
|
[2] |
STOPPER
|
|
| 15. |
S0521361
|
[2] |
BOLT M16X2.0X35
|
S0521366
|
| 15. |
S0521366
|
[2] |
BOLT
|
|
| 16. |
S5102901
|
[2] |
. WASHER;SPRING
|
S5102903
|
| 16. |
S5102903
|
[2] |
WASHER
|
|
| 17. |
S4012933
|
[8] |
NUT
|
|
| 18. |
S0566761
|
[4] |
BOLT M16X2.0X125
|
S0566766
|
| 18. |
S0566766
|
[4] |
BOLT
|
|
| 19. |
S6710041
|
[9] |
NIPPLE,GREASE
|
|
| 1B. |
2110-1316A
|
[2] |
. BUSHING
|
110-00049
|
| 1B. |
110-00049
|
[2] |
BUSHING
|
2110-1316A
|
| 1B. |
2110-1316A
|
[2] |
. BUSHING
|
|
| 1C. |
2110-1329A
|
[2] |
BUSHING
|
110-00102
|
| 1C. |
110-00102
|
[2] |
BUSHING
|
2110-1329A
|
| 1C. |
2110-1329A
|
[2] |
BUSHING
|
|
| 1D. |
2110-1330A
|
[2] |
BUSHING
|
110-00101
|
| 1D. |
110-00101
|
[2] |
BUSHING
|
2110-1330A
|
| 1D. |
2110-1330A
|
[2] |
BUSHING
|
|
| 2. |
2155-1339C
|
[1] |
LINK;PUSH ASS'Y
|
2155-1339E
|
| 2. |
2155-1339E
|
[1] |
LINK;PUSH ASS'Y
|
|
| 20. |
2180-1105D7
|
[2] |
O-RING
|
180-00077D3
|
| 20. |
180-00077D3
|
[2] |
O-RING
|
|
| 21. |
2180-1106BD6
|
[2] |
SEAL;DUST
|
|
| 22. |
2114-1059D89
|
[8] |
SHIM
|
|
| 23. |
2114-1059D98
|
[2] |
SHIM
|
|
| 24. |
2114-1994
|
[2] |
SPACER
|
2114-1994A
|
| 24. |
2114-1994A
|
[2] |
SPACER
|
2114-1994B
|
| 24. |
2114-1994B
|
[2] |
SPACER
|
|
| 25. |
2114-1995
|
[2] |
SPACER
|
2114-1995A
|
| 25. |
2114-1995A
|
[2] |
SPACER
|
2114-1995B
|
| 25. |
2114-1995B
|
[2] |
SPACER
|
|
| 2B. |
2110-1367B
|
[2] |
BUSHING
|
|
| 2C. |
2110-1366A
|
[2] |
BUSHING
|
|
| 2C. |
2110-1366A
|
[4] |
BUSHING
|
|
| 3. |
2155-1306B
|
[1] |
LINK;GUIDE(R)
|
|
| 4. |
2155-1307B
|
[1] |
LINK;GUIDE(L)
|
|
| 6. |
2123-2187C
|
[1] |
PIN
|
|
| 7. |
2123-2225C
|
[1] |
PIN
|
|
| 8. |
2123-2211B
|
[2] |
PIN
|
2123-2211C
|
| 8. |
2123-2211C
|
[2] |
PIN
|
|
| 9. |
2123-2212C
|
[2] |
PIN
|
|
